Business Type: Manufacturer
Main Products:OPGW:Optical Fiber Composite Overhead Ground WireOPPC:Opticalphase ConductoADSS:All Dielectric Self-Supporting Optical Fiber CableMASS:Metal Aerial Self-Supporting optical fiber cableapproch cableOPAC:Optical Attached Cablesubmarine optical fiber cableFTTXFTTHunderwater cable
ID:21042349691
Category: Electrical & Power Energy Wires,Cables & Accessories
MOQ:10000.00 Meter(s)
Breakout cableLSZH CableAramid Yarn Fiber Cable
L/CT/TD/PWestern UnionOthers
| Place of Origin: | China |
| Brand Name: | Changguang |
| Certification: | ISO 9001:2008 |
| Model Number: | GJBFJV |
| Minimum Order Quantity: | 10 kilometer |
|---|---|
| Price: | deponding on specs |

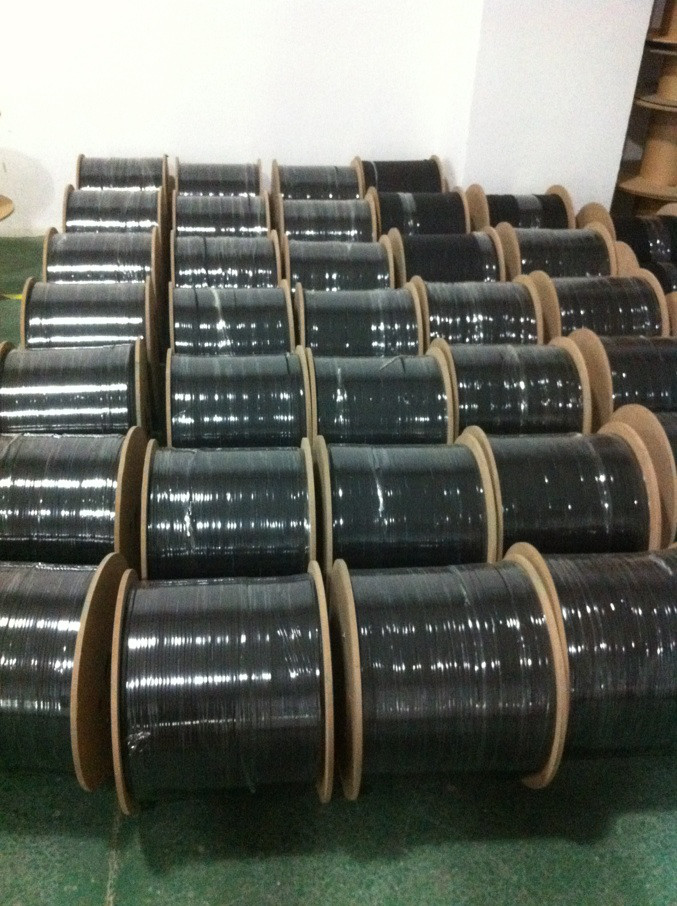

| Packaging Details: | Wooden drum then in a carton, 1000-3000m/drum or as customized |
| Delivery Time: | Depends on quantity, usually 5-10 days after deposit received |
| Payment Terms: | T/T, L/C,paypal, Western Union, ect. |
| Supply Ability: | 20000 kilometers/month |
| Product Name: | 24cores Optical Fiber Breakout Cable Indoor Application LSZH | Installation: | FTTH/x Indoor/outdoor |
|---|---|---|---|
| Application: | Indoor/outdoor Aerial Cabling System | Fiber Type: | Single Mode/multi Mode/G.652D/G.655/G.657A |
| Cable Type: | Indoor | CSM: | Steel Wire Or FRP |
| PE Jacket: | LSZH/PE | Message Wire: | Without |
| Fiber Number: | 24 Cores | OEM: | Acceptable |
| ntroduction | The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH sheath. |
| Characteristics | 1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. 2. Two parallel RFP strength members ensure good performance of crush resistance to protect the fiber. 3. Simple structure, light weight and high practicability 4. Low smoke,zero halogen and flame retardant sheath 5. Novel flute design, easily strip and splice, simplify the installation and maintenance |
| Application | 1. Access network , fiber to the home 2. Support the Internet , CATV , telephone and more network service in the future |
| Standards | Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC 60794-2-10/11,etc; and meet the requirements of UL approval for OFNR and OFNP. |
| Cable Code | Fiber Count | Cable Size mm | Cable Weight (Ref)kg/km | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N/100mm | Bending Radius Dynamic/Static mm |
| GJXFH-1Xn | 1 | (2.0±0.1)x(3.0±0.1) | 8 | 40/80 | 500/1000 | 15/30 |
| GJXFH-2Xn | 2 | (2.0±0.1)x(3.0±0.1) | 8.5 | 40/80 | 500/1000 | 15/30 |
| GJXFH-1Xn | 1 | (2.0±0.1)x(3.8±0.1) | 9 | 40/80 | 500/1000 | 15/30 |
| GJXFH-4Xn | 4(Ribbon) | (2.0±0.2)x(4.0±0.2) | 10 | 40/80 | 500/1000 | 15/30 |
In a communications network, a drop is the portion of a device directly connected to the internal station facilities, such as toward
a telephone switchboard, toward a switching center, or toward a telephone exchange. A drop can also be a wire or cable from a
pole or cable terminus to a building, in which case it may be referred to as a downlead. These cables may be reinforced to
withstand the tension (due to gravity and weather) of an aerial drop (i.e., hanging in air), as in "messenger" type, which is
reinforced with a steel messenger wire along its length.
