| Description: | |
| Product Description | PVC Electric True Union Ball Valve |
| Material details | UPVC/TPE/EPDM/FPM |
| Measurement range | from 20mm to 110mm |
| Color description | Dark Grey/Light Grey /White |
| connection methods | Socket/thread/flange/thread/union |
| Pressure in bar | 10bar~16bar |
| Power | Electirc actuate |
| The Standard | DIN, BS, ANSI, CNS, JIS, BSPT, NPT |
| Certificate | CE, ISO14001,ISO9001,SGS |
| Media | Water |
| OEM/ODM | YES |
| (DIN )VALVE | ||||||||||
| Dimension (mm) | Working Pressure (kg/Cm2) | |||||||||
Size DN (De) | D0 | d0 | d1 | d2 | d | H1 | H | T | L | |
| 15(20) | 51.50 | 27.40 | 20.30 | 19.95 | 15.50 | 26.30 | 201.50 | 17.00 | 95.50 | 10 |
| 20(25) | 59.00 | 32.70 | 25.30 | 24.95 | 20.50 | 30.60 | 209.00 | 19.50 | 109.10 | 10 |
| 25(32) | 70.00 | 41.30 | 32.30 | 31.90 | 26.00 | 39.10 | 220.00 | 23.00 | 122.60 | 10 |
| 32(40) | 85.40 | 49.60 | 40.35 | 39.90 | 33.00 | 44.20 | 235.40 | 27.00 | 147.30 | 10 |
| 40(50) | 98.90 | 60.20 | 50.35 | 49.90 | 39.00 | 52.20 | 248.90 | 32.00 | 158.80 | 10 |
| 50(63) | 122.20 | 76.00 | 63.40 | 62.90 | 51.00 | 71.30 | 272.20 | 38.50 | 182.80 | 10 |
| 65(75) | 158.60 | 89.60 | 75.40 | 74.90 | 64.00 | 82.80 | 353.60 | 44.50 | 234.00 | 10 |
| 80(90) | 192.10 | 105.40 | 90.50 | 89.90 | 81.00 | 99.30 | 397.10 | 52.00 | 255.00 | 10 |
| 100(110) | 223.60 | 128.40 | 110.60 | 109.90 | 99.00 | 115.20 | 438.60 | 62.00 | 297.00 | 10 |
| (ASTM)VALVE | ||||||||||
| Dimension (mm) | Working Pressure (kg/Cm2) | |||||||||
| Size(") | D0 | d0 | d1 | d2 | d | H1 | H | T | L | |
| 1/2" | 51.50 | 27.40 | 21.54 | 21.23 | 15.50 | 26.30 | 201.50 | 23.22 | 107.90 | 10 |
| 3/4" | 59.00 | 32.70 | 26.87 | 26.57 | 20.50 | 30.60 | 209.00 | 26.40 | 122.90 | 10 |
| 1" | 70.00 | 41.30 | 33.66 | 33.27 | 26.00 | 39.10 | 220.00 | 29.57 | 135.70 | 10 |
| 1-1/4" | 85.40 | 49.60 | 42.42 | 42.04 | 33.00 | 44.20 | 235.40 | 32.75 | 158.80 | 10 |
| 1-1/2" | 98.90 | 60.20 | 48.56 | 48.11 | 39.00 | 52.20 | 248.90 | 32.00 | 166.80 | 10 |
| 2" | 122.20 | 76.00 | 60.63 | 60.17 | 51.00 | 71.30 | 272.20 | 39.10 | 182.80 | 10 |
| 2-1/2" | 158.60 | 89.60 | 73.38 | 72.85 | 64.00 | 82.80 | 353.60 | 44.50 | 236.00 | 10 |
| 3" | 192.10 | 105.40 | 89.31 | 88.70 | 81.00 | 99.30 | 397.10 | 48.60 | 249.00 | 10 |
| 4" | 223.60 | 128.40 | 114.76 | 114.07 | 99.00 | 115.20 | 438.60 | 58.15 | 289.00 | 10 |

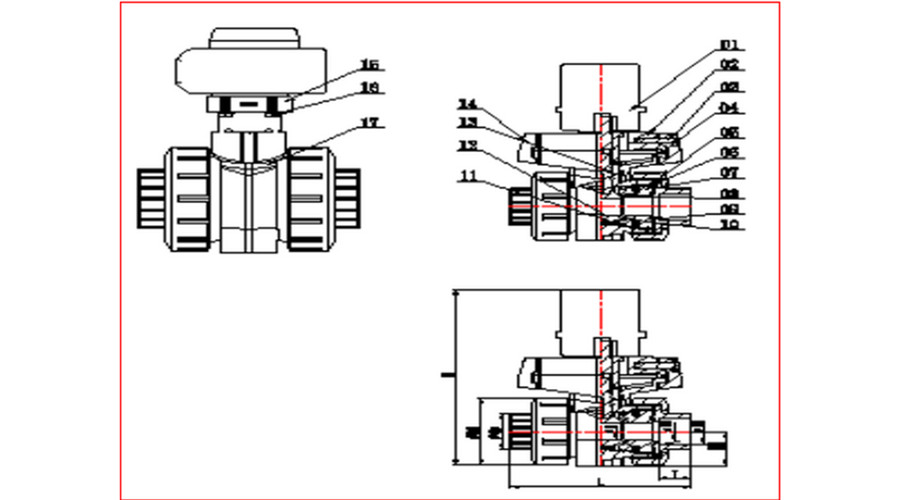

| No. | Parts | Quantity | Material | |
| 01 | Electric actuator | 1 | aluminum alloy | |
| 02 | Connector top cover | 1 | PP+GF30% | |
| 03 | Bolt | 2 | Stainless Steel | |
| 04 | Connector bottom cover | 1 | PP+GF30% | |
| 05 | Nut | 2 | PVC-U/PVC-C | |
| 06 | Faucet | 2 | PVC-U/PVC-C | |
| 07 | Seal-carrier | 1 | PVC-U/PVC-C | |
| 08 | Ball seat | 2 | PTFE/TPE+PP | |
| 09 | O-ring 1 | 2 | EPDM/FPM | |
| 10 | O-ring 2 | 2 | EPDM/FPM | |
| 11 | O-ring 3 | 1 | EPDM/FPM | |
| 12 | Ball | 1 | PVC-U/PVC-C | |
| 13 | O-ring 4 | 2 | EPDM/FPM | |
| 14 | Fixed buckle | 2 | PP+GF30% | |
| 15 | Connection | 1 | PP+GF30% | |
| 16 | Bolt | 4 | Stainless Steel | |
| 17 | Body | 1 | PVC-U/PVC-C | |
| No | Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| 1 | Electric true union ball valve | DN15 | 4 | 1281.50 | 42 | 29 | 22 |
| 2 | DN20 | 4 | 1321.10 | 42 | 29 | 22 | |
| 3 | DN25 | 2 | 1359.60 | 41 | 41 | 24 | |
| 4 | DN32 | 2 | 1426.70 | 41 | 41 | 24 | |
| 5 | DN40 | 2 | 1521.30 | 41 | 41 | 24 | |
| 6 | DN50 | 2 | 2004.20 | 41 | 41 | 24 | |
| 7 | DN65 | 1 | 2339.70 | 50 | 35.5 | 24 | |
| 8 | DN80 | 1 | 3570.60 | 54 | 40 | 28 | |
| 9 | DN100 | 1 | 4962.10 | 54 | 40 | 28 |
