PVC CrossPVC TeeFitting TeeFitting CrossPVC Lateral TeePVC Lateral Cross TeePVC Fitting CrossPVC Lateral Cross PVC Pipe Fitting Pipe Cross
T/T
| Description: | |
| Items Name | PVC Lateral Cross (F/F/S/S)PN10 |
| Material | Polyvinyl chloride |
| Size | 110~315 mm |
| Color | Grey or Customized |
| Connection | Cement or Glue Type |
| Pressure | ( Dn <160 ) ≥PN12,5 ( under 1000 hours ) |
| ( Dn ≥160 ) ≥PN10 ( under 1000 hours ) | |
| Standard | DIN8063 |
| Certification | ISO14001,SGS,ISO9001,CE |
| Manufacture with strong OEM/ODM ability | |

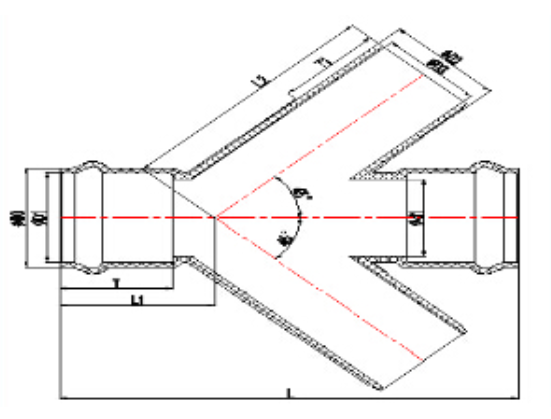

| Lateral Cross (F/F/S/S) | ||||||||||
Size (De) | Dimension(mm) | |||||||||
| D0 | D1 | D2 | D3 | d1 | T1 | T | L1 | L2 | L | |
| 110 | 125.70 | 111.50 | 110.20 | 96.00 | 108.00 | 125.00 | 122.00 | 160.80 | 282.00 | 455.00 |
| 160 | 181.50 | 162.30 | 160.30 | 140.00 | 158.00 | 145.00 | 141.00 | 194.00 | 371.20 | 575.00 |
| 200 | 225.00 | 202.50 | 200.20 | 178.00 | 197.00 | 160.00 | 152.00 | 215.80 | 426.50 | 660.00 |
| 250 | 276.50 | 252.30 | 250.30 | 227.00 | 247.00 | 180.00 | 152.00 | 232.50 | 508.70 | 739.00 |
| 315 | 347.80 | 318.30 | 315.20 | 288.00 | 312.00 | 202.00 | 198.00 | 284.00 | 636.80 | 917.00 |
