ElbowPVC ElbowPipe FittingPVC Fitting ElbowPVC Pipe Fitting Elbow22.5 Pipe Elbow22.5 Pipe Fitting ElbowPVC Pipe FittingPVC 22.5 Elbow
T/T
| 1. Description: | |
| Items Name | PVC Elbow 22.5° F/F PN10 |
| Material | Polyvinyl chloride |
| Spec | 90~315 mm |
| Color | Grey or Customized |
| Connection | use rubber ring |
| Pressure | PN10 |
| Standard | DIN8063 |
| Certification | SGS |
| Manufacture with strong OEM/ODM ability | |

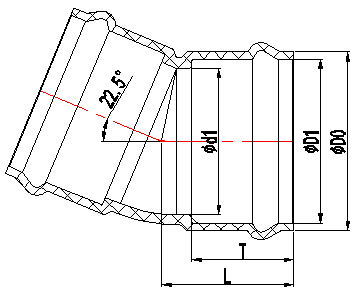

| Elbow 22.5o(F/F)PN10 | |||||
| Size(De) | Dimension(mm) | ||||
| D0 | D1 | d1 | T | L | |
| 90 | 105.50 | 92.50 | 88.50 | 95.00 | 110.00 |
| 110 | 125.70 | 111.50 | 108.00 | 122.00 | 152.00 |
| 160 | 181.50 | 162.30 | 158.00 | 141.00 | 168.00 |
| 200 | 225.00 | 202.50 | 197.00 | 152.00 | 178.50 |
| 225 | 251.50 | 227.50 | 221.00 | 139.00 | 196.00 |
| 250 | 276.50 | 252.30 | 247.00 | 152.00 | 212.00 |
| 315 | 347.80 | 318.30 | 312.00 | 198.00 | 257.00 |
| Description | Size | Pcs/ctn | Length (cm) | Width (cm) | Height (cm) |
| Elbow 22.5o(F/F) | De63 | 18 | 43.5 | 31 | 30 |
| De75 | 18 | 43.5 | 31 | 30 | |
| De90 | 18 | 53 | 38 | 35.5 | |
| De110 | 8 | 53 | 38 | 31.5 | |
| De160 | 6 | 61.5 | 45 | 39.5 | |
| De200 | 4 | 55 | 55 | 42 | |
| De225 | 2 | 58 | 35 | 44 | |
| De250 | 2 | 64 | 38 | 48 | |
| De315 | 1 | 45 | 43 | 59 |
