DUWAI 35KV High voltage Switchgear Insulator Epoxy Resin Transducer Epoxy Resin Sensor

ID:21042850330

Category: Electrical & Power Energy Connectors & Terminals

FOB Price:US$ 10.000 / Piece(s)

MOQ:500.00 Piece(s)

Product Keywords:

high voltage insulatorstandoff insulatorepoxy resin insulatorfor switchgearfor cabinet65x140pin insulatorinsulator price 35kv sensorliving display

Payment Method:

L/CT/TD/PWestern Union

Product Category

Electrical & Power Energy > Connectors & Terminals

Trademark

DOWE

Product Package

cartoon

Specification

CG5-35Q 150x420/460

Place of Origin

CHINA

Port

WENZHOU PORT

Products Description

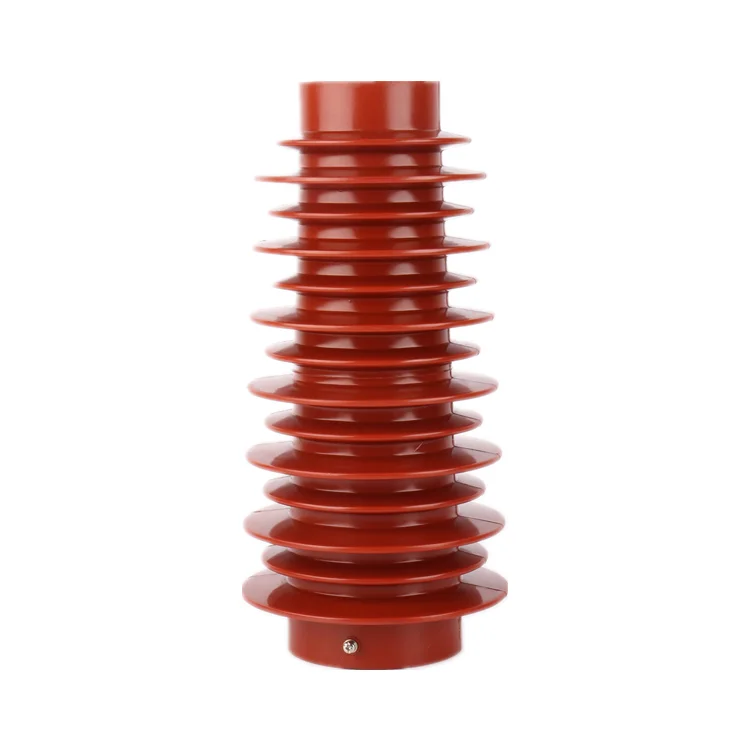

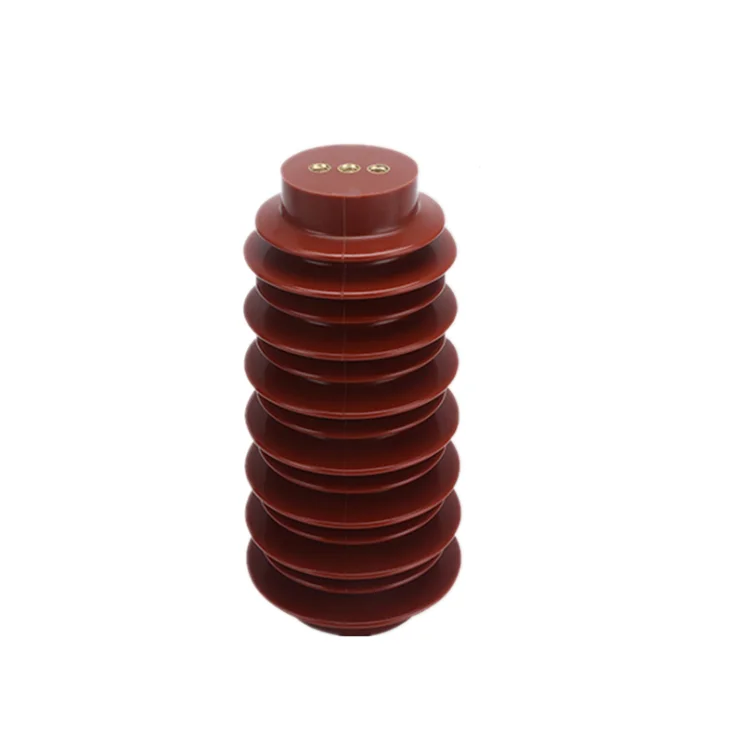

High Voltage Device Sensor

The variety of high voltage insulator listed in sample all adopt epoxy vacuum pouring technology for one-time molding, kinds of
bushing、contact box、insulating cylinder and bell housing etc adopt APG technology for molding. While ,some product adopt SMC、DMC
un-saturatuon alkyd enlargement mode plastic for compacting molding. All the product are applied to3.6~40.5KV mid-large volt
switchboard.
For some product and specification size owning special requirement ,it could be designed and manufactured according to user
demand.

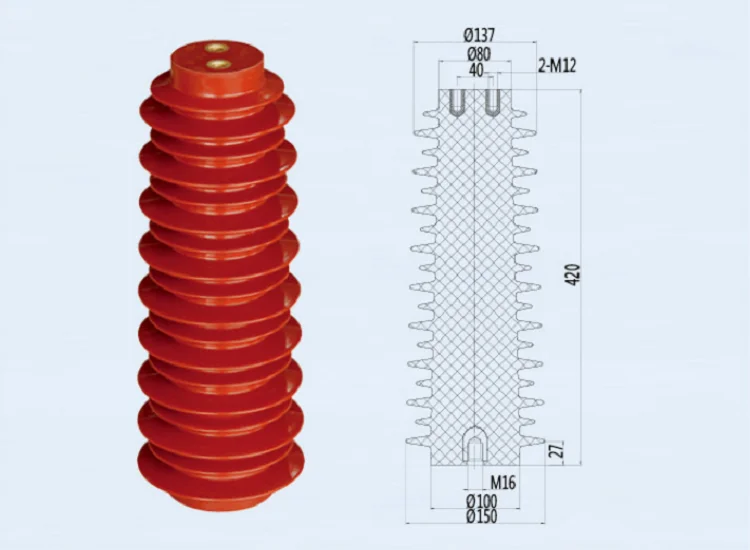

Product Name	High Voltage Device Sensor
Model	CG5-35Q 150x420/460
DOWEBrand	DOWE
Material	Epoxy resin
Insert	Brass
Color	Red for stock,Custonized according necessary
Rated Voltage	35kv
Application	DIstribution Box, Switchgear, Capacitor......
Certification	CE,SGS,ROHS,ELV,REACH
