DOWE 24kv 3150A high current low price insulator epoxy resin insulator for switchgear contact box

Name: DOWE 24kv 3150A high current low price insulator epoxy resin insulator for switchgear contact box
Brand: YUEQING CITY DUWAI ELECTRIC Co.,Ltd
SKU: 21042950384

ID:21042950384

Category: Electrical & Power Energy Connectors & Terminals

EXW Price:US$ 10.000 / Piece(s)

MOQ:500.00 Piece(s)

Product Keywords:

high voltage insulatorstandoff insulatorepoxy resin insulatorfor switchgearfor cabinet65x140pin insulatorinsulator price contact boxepoxy resin for switchgear

Payment Method:

L/CT/TD/PWestern Union

Product Category

Electrical & Power Energy > Connectors & Terminals

Trademark

DOWE

Product Package

cartoon

Specification

CH3-24Q/252

Place of Origin

CHINA

Port

WENZHOU PORT

Products Description

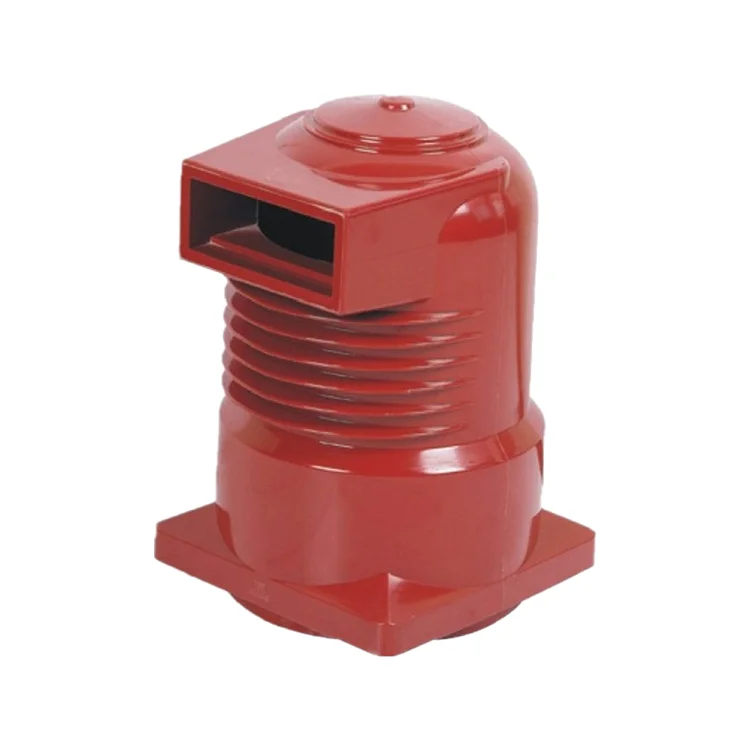

Contact Box

The contact box product uses epoxy resin material with excellent insulation performance, and is injection molded using the static
mixed APG process commonly used in the market. It uses high-quality pressure-resistant, partial discharge and other testing
equipment to strictly control the product quality in accordance with national standards.

Epoxy resin cast insulation contact box, connect with charged display device, used in switchgear application.
The contact box is an epoxy resin APG process pressure gel molding structure used in various handcart switch cabinets, which plays
a role in insulation isolation and excessive connection.

Product Name	High voltage contact box
Model	CH3-24Q/252
DOWEBrand	DOWE
Material	EPOXY RESIN
Current	3150-4000A
Color	Red for stock,Custonized according necessary
Rated Voltage	24kv
Application	DIstribution Box, Switchgear, Capacitor......
Certification	CE,SGS,ROHS,ELV,REACH
