Bypass Valve
T/TD/P
Bypass valves are a back-pressure regulator primarily used to adjust the port pressure through control of the bypass passenger in a water treatment system. It can also be used in softening systems when the bypass valve replenishes untreated water under softener maintenance. In a residential system, the bypass valve allows for the production of a mixed water (combination of raw water and treated water) leading to a higher hardness that is suitable for drinking.
RUNXIN provides a variety of softening valves that are easily paired with bypass valves. We are dedicated to meeting your diverse water treatment requirements.
Parameters
Model | Inlet/outlet | Pipe diameter of matching control valve | Canter distance of matching control valve | Recomended water softener valves from Runxin |

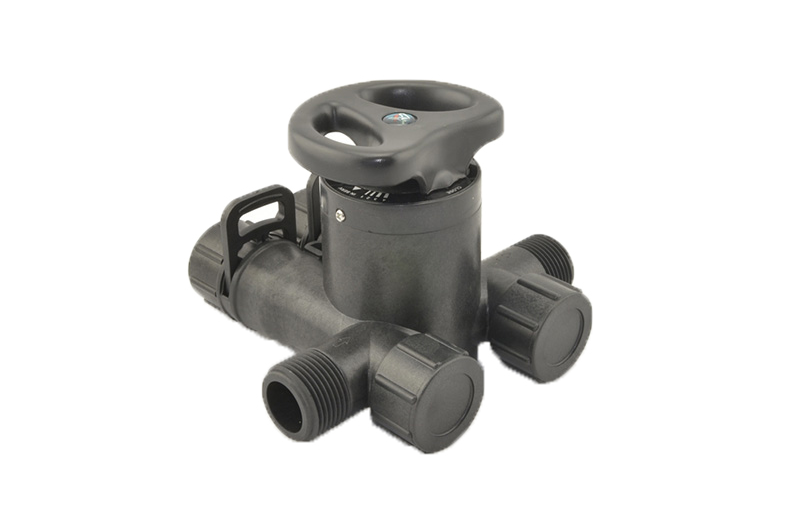

F70A
| 1"M | 1"F | 50mm | F63P Atomatic softener valves F63G Atomatic softener valves F68P Atomatic softener valves |

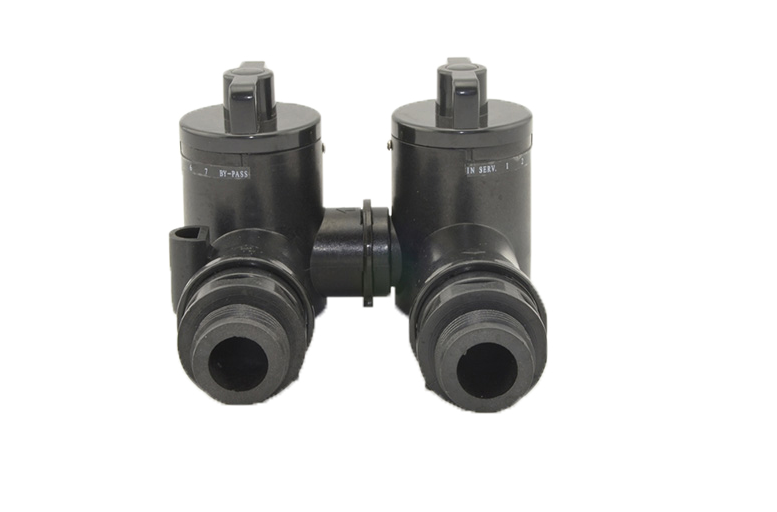

F70B
| 3/4"M | 3/4"M | 65/70mm adjustable | F65 Residential water softener valves |

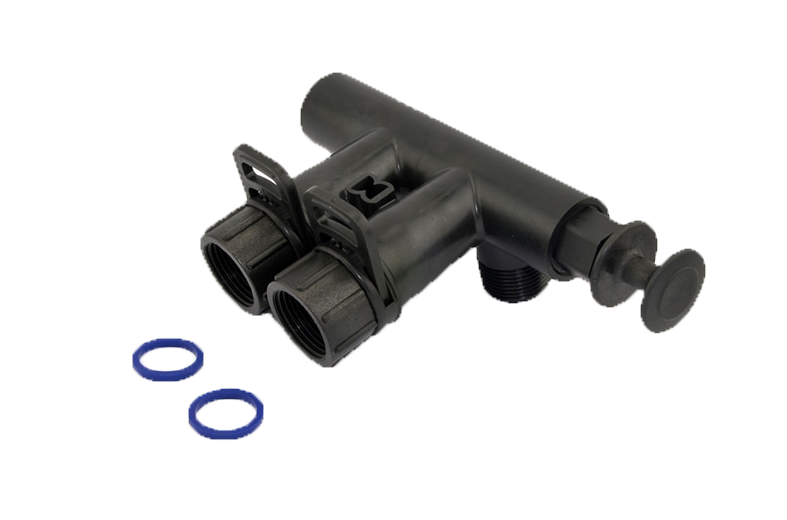

F70C
| 1"M | 1"F | 50mm | F63P Atomatic softener valves F63G Atomatic softener valves F68P Atomatic softener valves F82 Residential water softener valves |

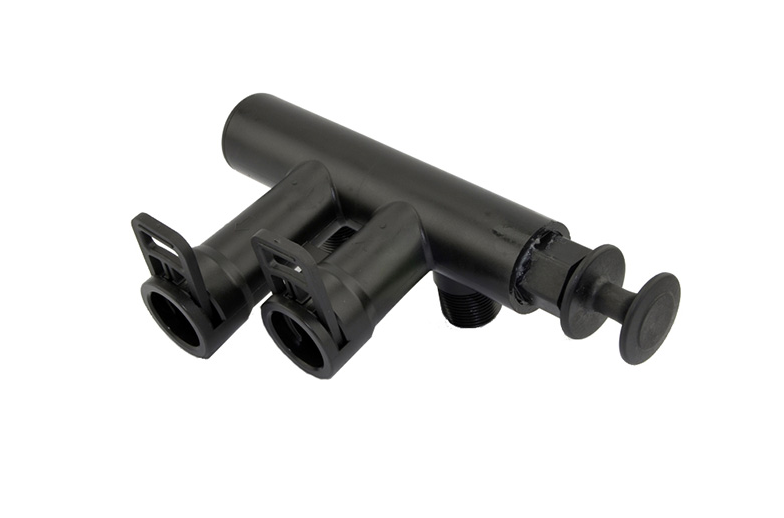

F70D
| 3/4"M | 3/4"M | 50mm | F79 Residential water softener valves |

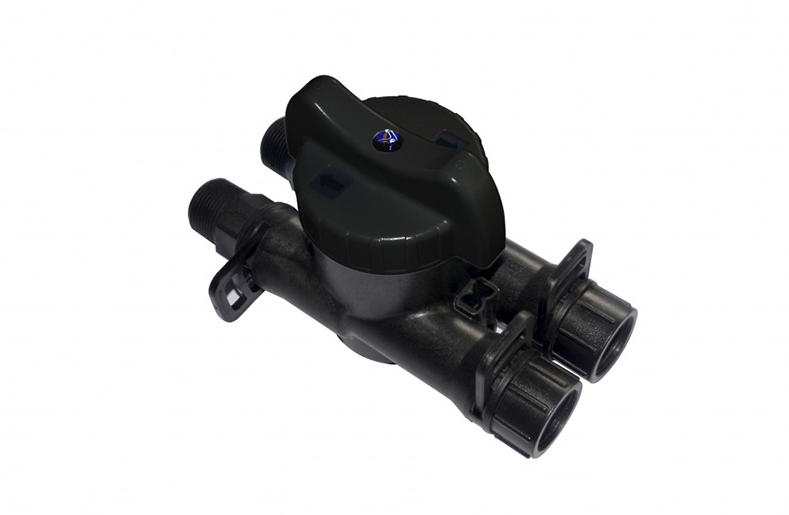

F70F
| 1"M | NPT 1"或1"M | 50mm | F92x2 Twin alternating softener valves F82 Residential water softener valves |

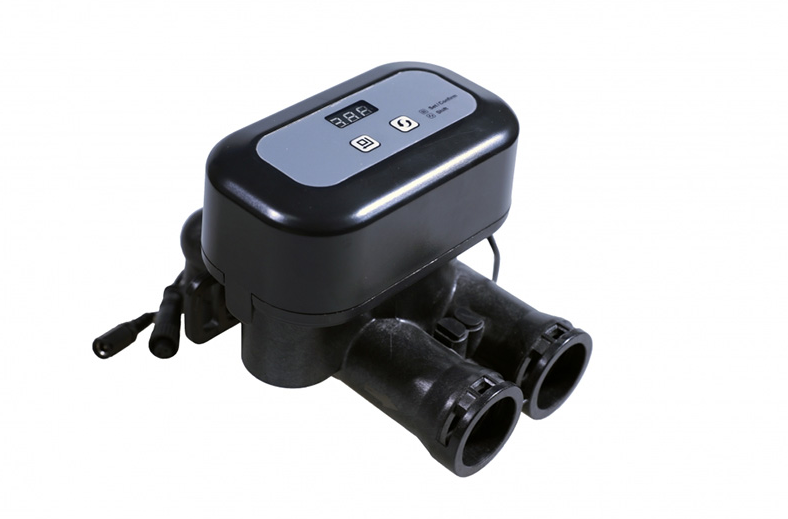

F70G
| NPT3/4"M或1"M或NPT1" M | 3/4"M或NPT1" M | 50mm | F63P Atomatic softener valves F63G Atomatic softener valves F68P Atomatic softener valves F82 Residential water softener valves F105A Residential water softener valves |
Feature
1. Easy to Operate;
Throug turning the handwheel, different operations can be easily achieved, including service, close, bypass, softening operation and more.
2. Built-in Flow Meter;
It easily turns into a meter type valve combined with a control valve to achieve a bypass function.
3. Multiple Connection Modes
With an inlet and outlet forming a right angle, the F70A makes it possible to connect the water pipes in any manner.
4. Thread Choices
Thread types include BSPP and NPT at the inlet and outlet of the F70C/F70D bypass valve.
