Steel encased calcium sulphate raised access floor tile

ID:21050450754

Category: Construction & Decoration Flooring

FOB Price:US$ 10.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

raised flooraccess floorfalse floorelevated floorcalcium sulphate raised floorgalvanized steel encasedoffice flooring systemcoated with magnetic carpethigh loading capacity

Payment Method:

L/CT/T

Product Category

Construction & Decoration > Flooring

Trademark

Xiangli

Product Package

pallet

Specification

500*500*28mm/600*600*31mm

Place of Origin

China

Port

Shanghai

Manufactor Steel Encased Calcium Sulphate Raised Access Floor

Product Description

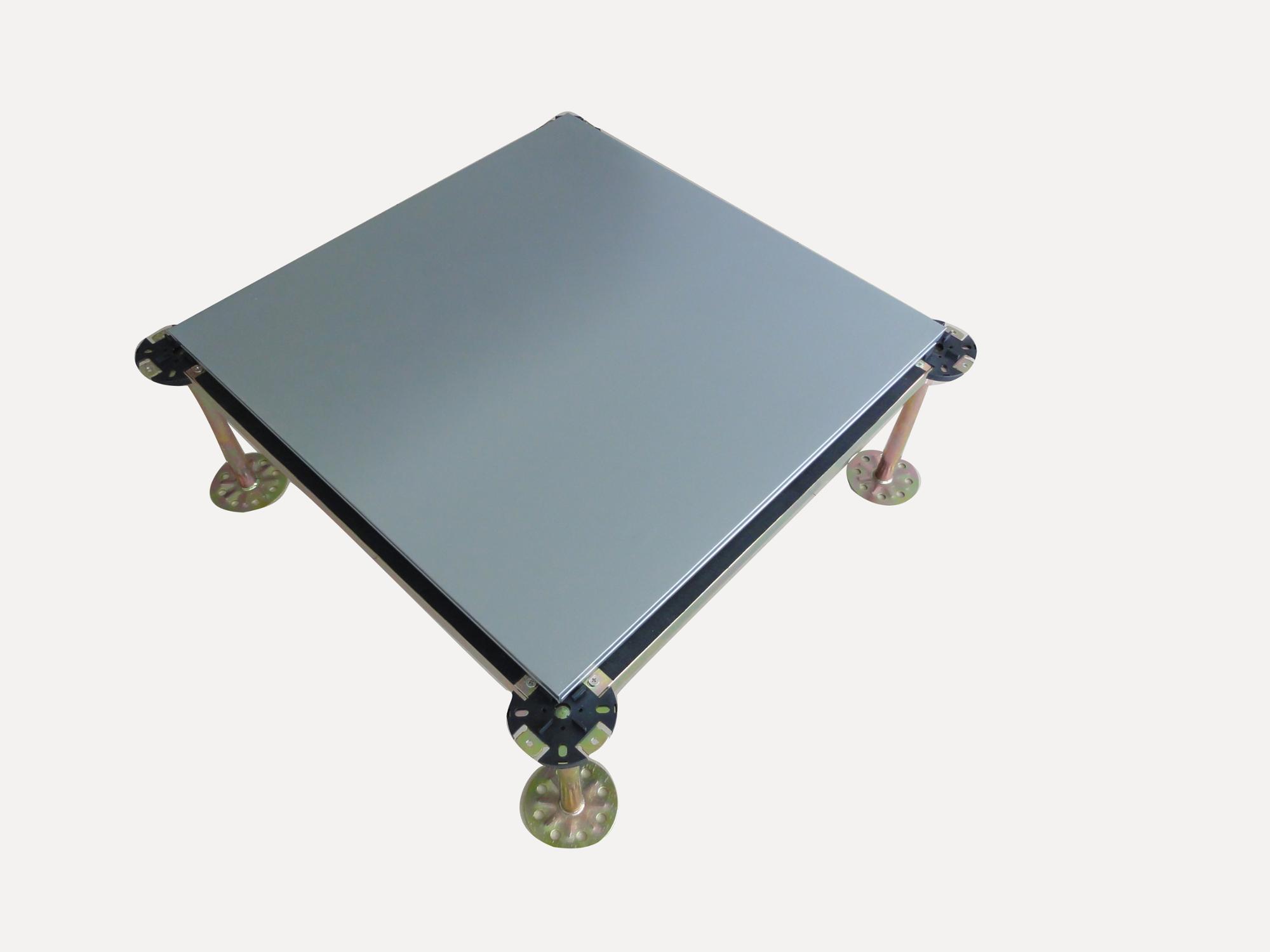

xiangli2

.JPG

1. Full galvanized steel encased the calcium sulphate, very good sealing and water-proof

2.High dimensional precision, strong loading ability and shockproof

3.Adjustable height for pedestal , assembly agility, large wire, good exchangeability

4.Elegant appearance for paving wildly brand top tiles

5. light weight ,high loading capacity ,excellent raised flooring in 21th

6.High recycled, convenient removing, saving cost, long performance life

Application

Wide range of the application all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office

Type& Technology parameter

Type	International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m²)	Rolling load(N)
Type	International	Size(mm)	Fire Performance	LB	N	KG	Impact load (N)	Ultimated load (N)	Uniform Load (N/m²)	10 times	100000 times
XL-5001	FS800	600x600x31	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
XL-5002	FS1000	600x600x31	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
XL-5003	FS1250	600x600x31	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450

Standard Pedestal SPEC:

FFH(mm)	tube diameter(mm)	adjustment +(mm)	adjustment – (mm)
≤ 600	25	25	25
700~900	32	25	25
1000~1500	42	25	25

Other height could be customized.

Standard Stringer SPEC: 535x21x30mm

XIANGLI ANTI-STATIC DECORATIVE MATERIAL CO.,LTD(JIANGSU)

Business Type:Manufacturer

Online Supplier
