8bar electric motor portable screw air compressor machine for mining blasting

Compressors

Model:HG375D-8

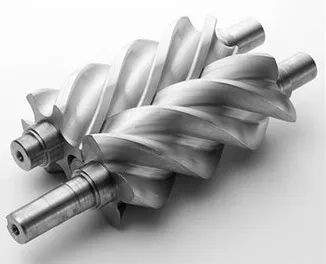

a.       Most advanced air end: gearless screw air end from Germany, direct online, operation reliable.

b.       Type line: latest technology with asymmetrical design 5:6,high efficiency, save energy.

c.       Manufacture: rotator with precise griding process, accuracy is 0.005mm,low noise, low variable, with long working lifetime.

Type: Double Rotary Screw, one stage

Cool way: Air Cooling

Air Delivery: 10.2m3/min

Working pressure:7.5bar

Working pressure range:5-8bar

Lube oil:54L

Noise:68-72dB(A)

Interface pipe: R1.1/2’’*1, R1’’*1

Wheel distance: 1560mm

Dimension(L*W*H):3220×1850×1750mm

Weight: 1980kg

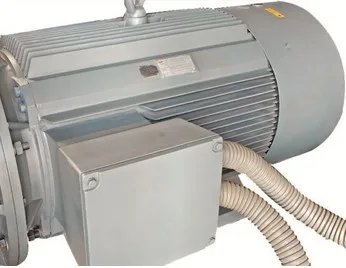

Electric Engine

Model: Y2-225

a.       Moisture-proof, mould-proof, anti-corrosion.

b.       SKF bearing, high efficiency, long lifetime, low noise.

Working power:55kw/75hp

Rated rotation speed:2970rpm

Power supply(V/Hz/Ph):380±10%/50/3

Insulation level: F

Protection level:IP54

Starting type: Y
