T12mm Nylon stripsPA 66 Nylon stripsthermal break insulation stripPA66 insulation Nylon strips
T/T
T12mm PA 66 thermal break insulation strip aluminium profiles windows PA66 insulation Nylon strips
Product Description
Product Performance Date | |||
N0 | Item | Performance requirement | “TIANLONG”Test data |
1 | Polyamide 66 | ≥65 | >65 |
2 | glass fibre | 25±2.5 | 24.80 |
3 | density | (1.30±0.05)g/cm2 | (1.30±0.05)g/cm2 |
4 | DSC melt peak | ≥255°C | ≥257°C |
5 | Stress cracking performance of shaft nails | No crack at the orifice | No crack at the orifice |
6 | shore hardness(HD) | 80±5 | 82 |
7 | Low temperature notched impact hardness(-30°C±2°C) | ≥50KJ/m2 | 72KJ/m2 |
8 | Longitudinal tensile eigenvalues at room temperature(23°C±2°C) | ≥90mpa | ≥91mpa |
9 | Longitudinal elongation at break at room temperature | ≥3% | ≥4% |
10 | Modulus of elasticity in longitudinal tension at room temperature | ≥4500mpa | ≥4846mpa |
Functions
1.With high heat distortion temperature,"TIANLONG"product can meet the after-spray treament
2."TIANLONG"product has good toughness and low temperature performance ,The impact strength higher than other products in the market
3."TIANLONG" increased the flexural modulus from 4500mpa(national standard) to 5500mpa ,to prevent the window and door creep after the long deformation of opening and closeig
Product Details

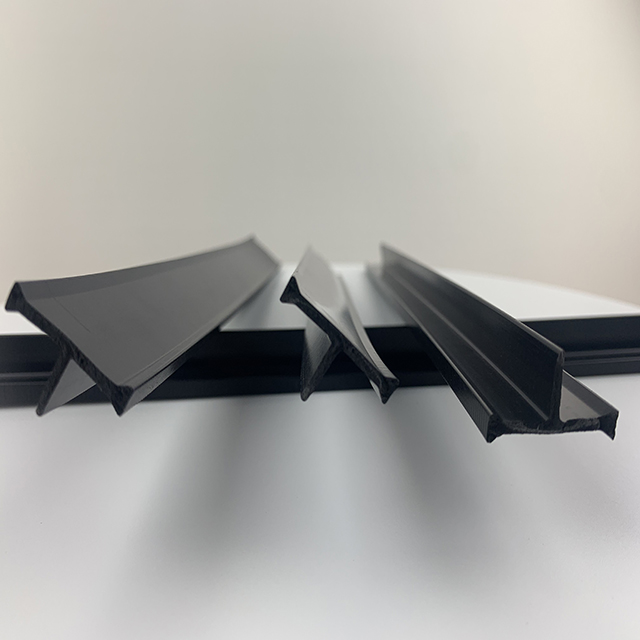

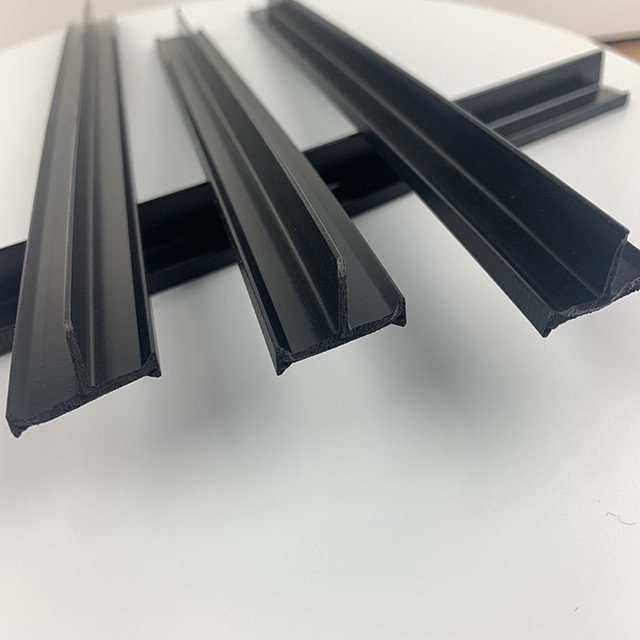

Thermal barrier strip is a polyamide profile in aluminum alloy heat insulation profile to reduce the heat conduction and has the function of structural connection
Our Services
1.Size precision inspection insulation,according to the national sandard GB/T23615.1-2017,the size precision of detection for customers of heat insulation strip
2.Detection and andlysis of insulation of internal structure,according to the national standard GB/T23615.1-2017.analyze the internal structure of insulation detection for customers
3.Insulation density test,according to the national standard GB/T23615.1-2017,the application of electronic weighing instrument for detecting insulation density
4.According to the national standard GB/T23615.1-2017,the insulation room temperature transverse tensile characteristic value,non notched impact strength,high temperature and transverse tensile characteristic value of the test
5.Test 1000 hours aging test
6.The whole window insulation coefficient meter calibration
Company Information

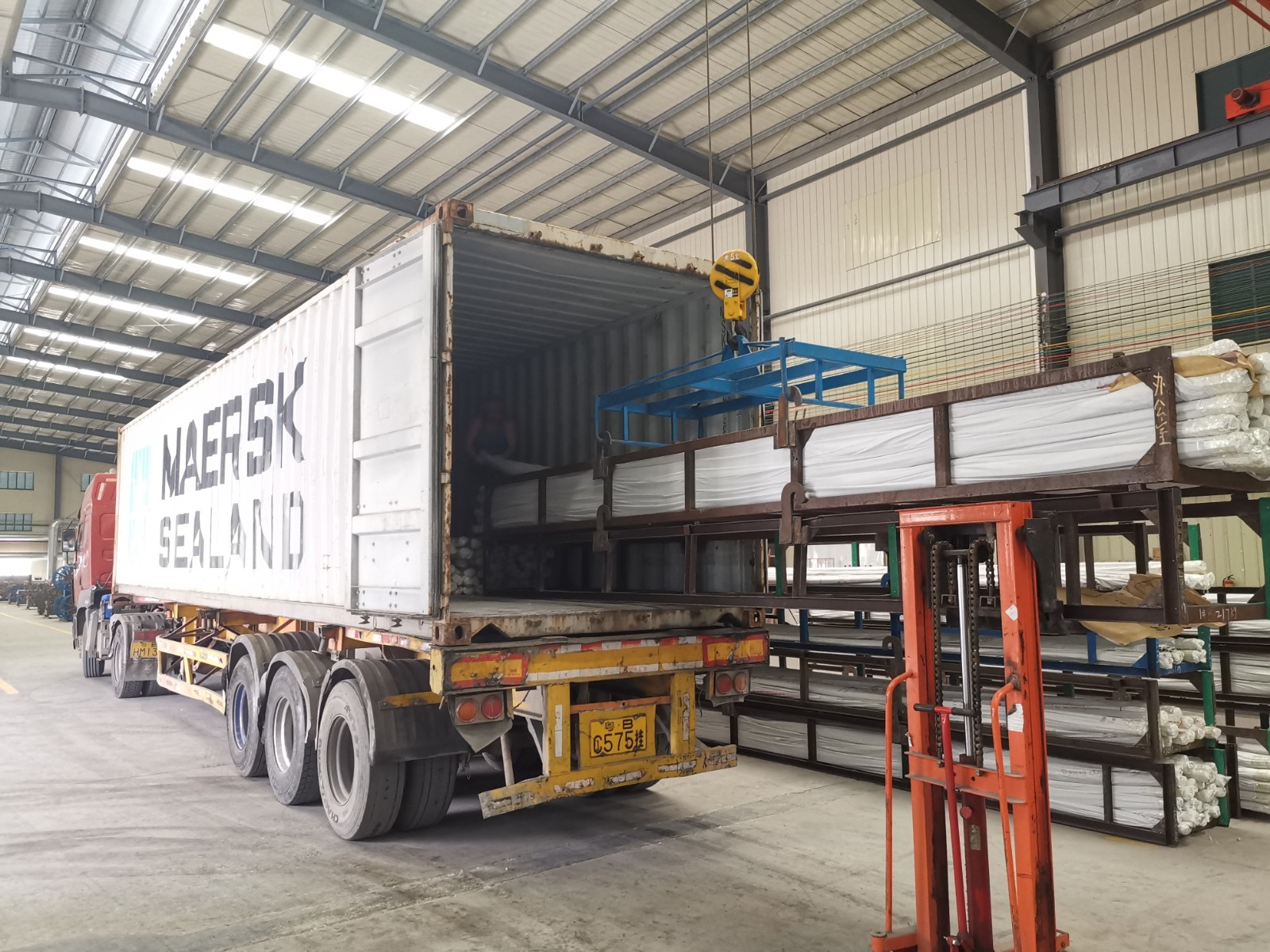

Packaging & Shipping
Product storage and handling:
Because PA66 is hydrophilic substances,it will absorb moisture from the surrounding.The speed and amount of water absorption of water,depends on the following factors:In,summer,the weather temperature and relative humidity is relatively high,even short-term storage,moisture insulation absorption will also than in the other seasons .The high moisture content(more than 2%) will affect the quality of wear strip.insulation of single bundle was moved from the shelves,there may be distorted,if not timely straightening,will cause permanent distortion.
Therefore,advised to keep a level in the ventilation,dry environment,place,pay attention to waterproof,away from heat,avoid stress,bending to minimize.
If you have any specific,please contact us,we are pleased to provide related services to you.
Product packaging:
Straight;conventional straight/branch,6 meters,50 cigarettes per pack,100 cigarettes per pack,rod:(limited to I type A)
500 meters/disk.
Scaled production,packaging,computer laser to spurt the code according to the specoific requirements of customers.
Product identification:
Insulation surface,specifications,trademark logo
Internal and external packaging with certificate of product identification:the implementation of standards,production date,product specifications,inspection.

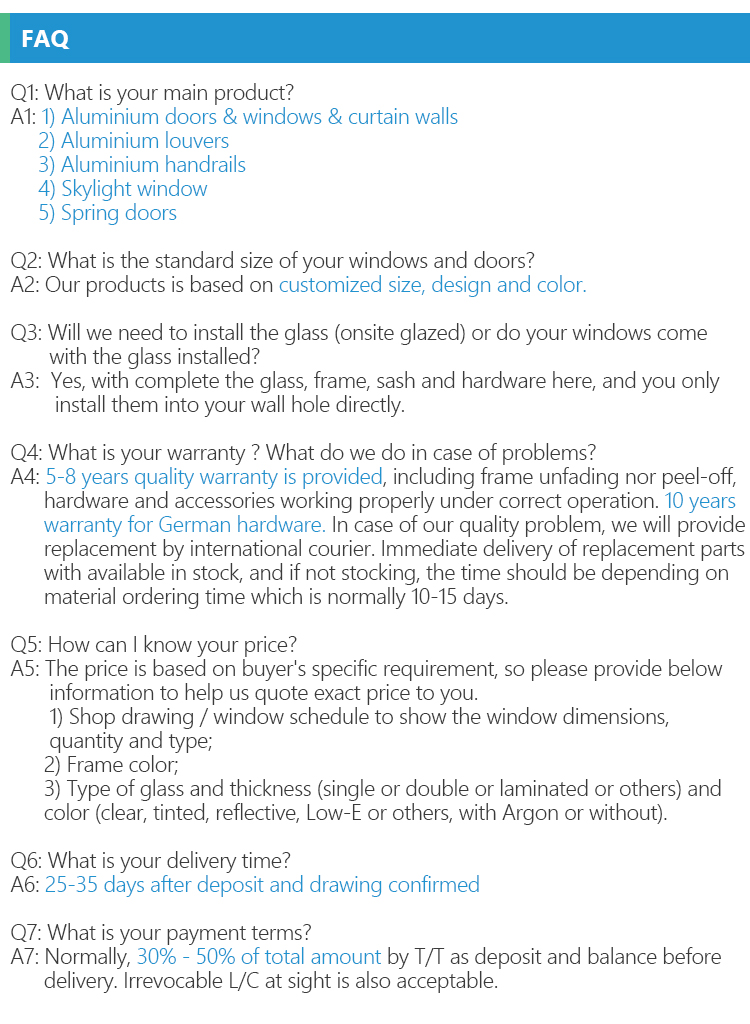

FAQ
