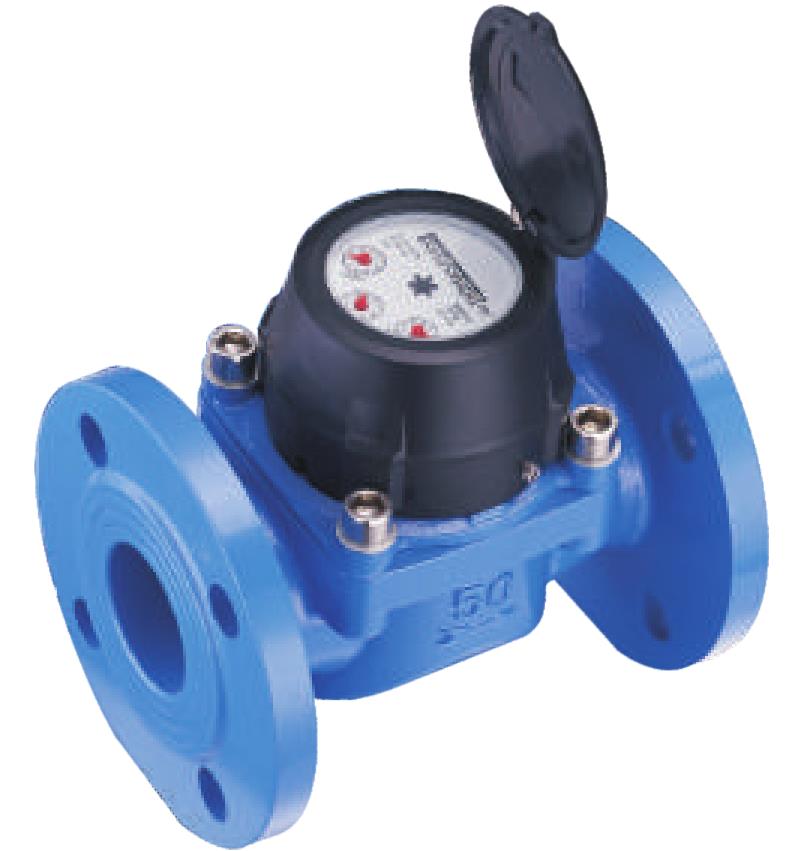

Water Meterswoltman water meterdry type water meterDN50 WATER METER
L/CT/TWestern UnionPaypal
Hermetically sealed register (IP 68)
Pattern approved removable measuring element
Hydrodynamically balanced system
Powder coating affords max. corrosion protection
Register may be rotated through 360°
Not affected by external magnetic fields
High overload capability
Available for cold water 0-30°C and hot water30°C-90°C
Technical parameter
Model | LXLC-50 | LXLC-65 | LXLC-80 | LXLC-100 | LXLC-125 | LXLC-150 | LXLC-200 | |||||||
Diameter (DN) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |||||||
R (Q3/Q1) | 100 | 160 | 100 | 160 | 100 | 160 | 100 | 160 | 100 | 160 | 100 | 160 | 100 | 160 |
Overload flow rate (Q4) [m3/h] | 50 | 78.75 | 78.75 | 78.75 | 125 | 125 | 200 | 200 | 200 | 312.5 | 500 | 500 | 787.5 | 787.5 |
Permanent flow rate (Q3) [m3/h] | 40 | 40 | 63 | 63 | 100 | 100 | 160 | 160 | 250 | 250 | 400 | 400 | 630 | 630 |
Transitional flow rate (Q2) [m3/h] | 0.64 | 0.63 | 1.008 | 0.63 | 1.6 | 1 | 2.56 | 1.6 | 2.56 | 2.5 | 6.4 | 4 | 10.08 | 6.3 |
Min flow rate (Q1) [m3/h] | 0.4 | 0.394 | 0.63 | 0.394 | 1 | 0.625 | 1.6 | 1 | 1.6 | 1.5625 | 4 | 2.5 | 6.3 | 3.9375 |
Accuracy class | Class B | |||||||||||||
Temperature class | T30 or T50 | |||||||||||||
Pressure class | MAP16 | |||||||||||||
Pressure loss class | △p40 | |||||||||||||
Sensitivity class | U10D5 | |||||||||||||
Dimension
Model | Diameter (DN) | L (mm) | H (mm) | W (mm) | D (mm) | D1 (mm) | Connecting Bolt n-Md | Weight (kg) |
LXLC-50 | 50 | 200 | 200 | 165 | 160 | 125 | 4-M16 | 8.0 |
LXLC-65 | 65 | 200 | 208 | 185 | 180 | 145 | 4-M16 | 9.5 |
LXLC-80 | 80 | 225 | 245 | 200 | 195 | 160 | 8-M16 | 14.5 |
LXLC-100 | 100 | 250 | 245 | 200 | 215 | 180 | 8-M16 | 16.8 |
LXLC-125 | 125 | 250 | 275 | 220 | 245 | 210 | 8-M16 | 20.0 |
LXLC-150 | 150 | 300 | 350 | 285 | 285 | 240 | 8-M20 | 36.0 |
LXLC-200 | 200 | 350 | 370 | 347 | 347 | 295 | 12-M20 | 44.5 |
