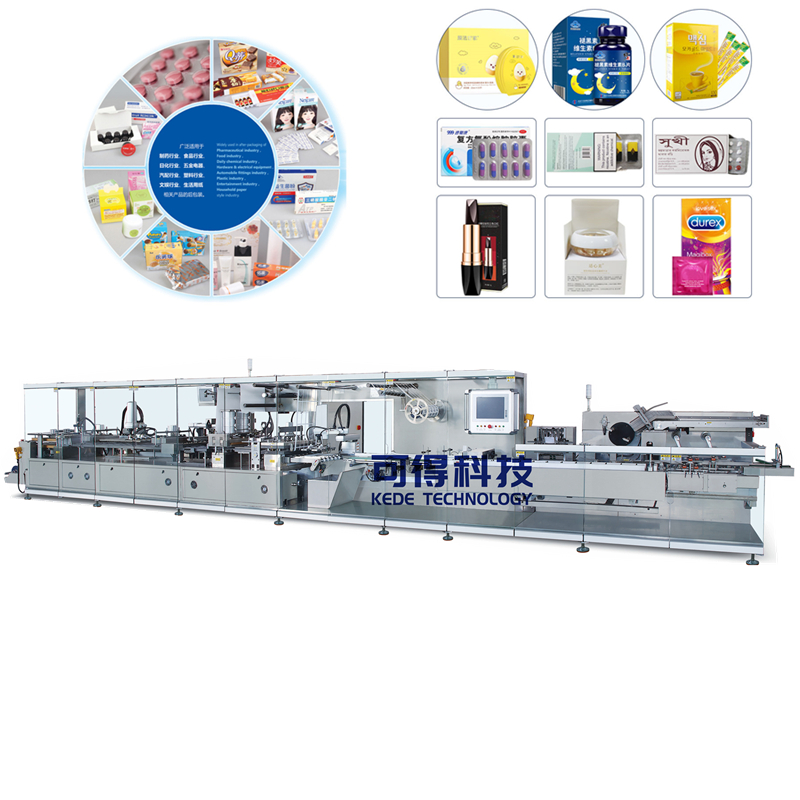

CDZ-800 Full Automatic Cartoning Packing Machine Production Line
Summary:
The equipment is a high-tech product integrating light, electricity, gas and machine. It is suitable for capsule and tablet forming of blister, blister board with aluminum-plastic package and similar articles automatic packing. The working process is the transfer of medicine board or articles (one board at a time can be adjusted to account for more than one board); Delivery of instructions (1-4 fold automatically); The paper box is automatically formed and transferred, and the medicine plate is packed into the paper box together with the folded instruction. And automatically complete the batch number, both ends of the paper tongue sealing and other complex packaging process. The machine can be connected with the blister packaging machine to form a packaging line (hot melt glue machine).
Technical parameters：
Model: CDZ | 100 | 130 | 180 | 200 | |
Speed： | 30-100boxes/min | ||||
Box size(L*W*H)： | ( 70-220)*(14-90)*(14-65)mm | ( 70-250)*(50-120)*(20-90)mm | ( 70-280)*(80-180)*(30-90)mm | ( 70-350)*(80-200)*(20-90)mm | |
Instruction book： | Paper material | 50-70g/m2 | |||
Unfolded size range | （80-300）mm*(70-210)mm | ||||
Folded size range | 1-4 folded(70-210)mm X (20-40)mm | ||||
Box paper material： | 250~450g/㎡ | ||||
Main motor power： | 1.5 kw | ||||
Power supply： | 380V 50Hz (220V 60 Hz) | ||||
Work pressure： | 0.5Mpa, 0.6m3/h | ||||
Air pressure： | ≥ 0.9m33/h | ||||
Dimensions (length × width × height): | 3700(L)×1500(W)×1900mm(H) | ||||
Machine weight： | 2000 Kg | ||||
Special Size Customization | |||||
