BT-AEC2387 Portable Toxic Gas-Detecting Alarm

1. Technical specifications

Detectable gases: toxic and hazardous gases: CO, SO₂, H₂S, NH₃ and CL₂ (See B04~B06 in the list of detectable gases)

Detection mode: diffusive

Response time: ≤30s (T90),≤60s (NH₃)

Power supply: DC3.7V/1500mAH (single-use battery)

Explosion proof grade: Ex ib IIC T4 Gb

Protection grade: IP66

Operating temperature: -25℃~+55℃

2. Major features

Applicable to multiple types of gases

Sensors for different gas types and ranges can be equipped to meet demands of different customers and different sites;

Reminding of normal running

This product reminds users through audible-visual signals that their equipment is under normal conditions and can be used continuously;

Multiple concentrations displayed via LCD

Gas concentration is displayed on a real-time basis. The detector shows gas status and concentration intuitively. A variety of alarm icons are used. A more humanized sense of operation is provided;

Multiple alarm types

Indicator lamp alarm, buzzer alarm, display screen indicator alarm, vibration alarm;

High intelligence and digitalization

High-performance micro-controller technology, automatic failure identification, automatic alarm, and automatic protection over high-concentration gas overlimit;

Infrared communication

Connect the host computer through infrared signals, support parameter setting, and upload logs;

Explosion-proof design

Enclosure of this product is made of anti-wear and high-strength ABS materials and its explosion proof grade reaches Ex ib IIC T4 Gb;

Protection grade IP66

High protection grade: IP66.

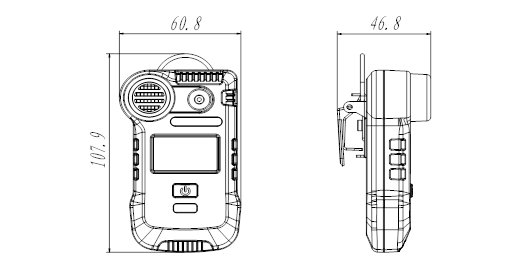

3. Boundary dimension

Material: Plastic

Dimension: length × width × height 107.9mm×60.8mm×46.8mm

Weight: 125g (Plastic)
