Business Type: Manufacturer

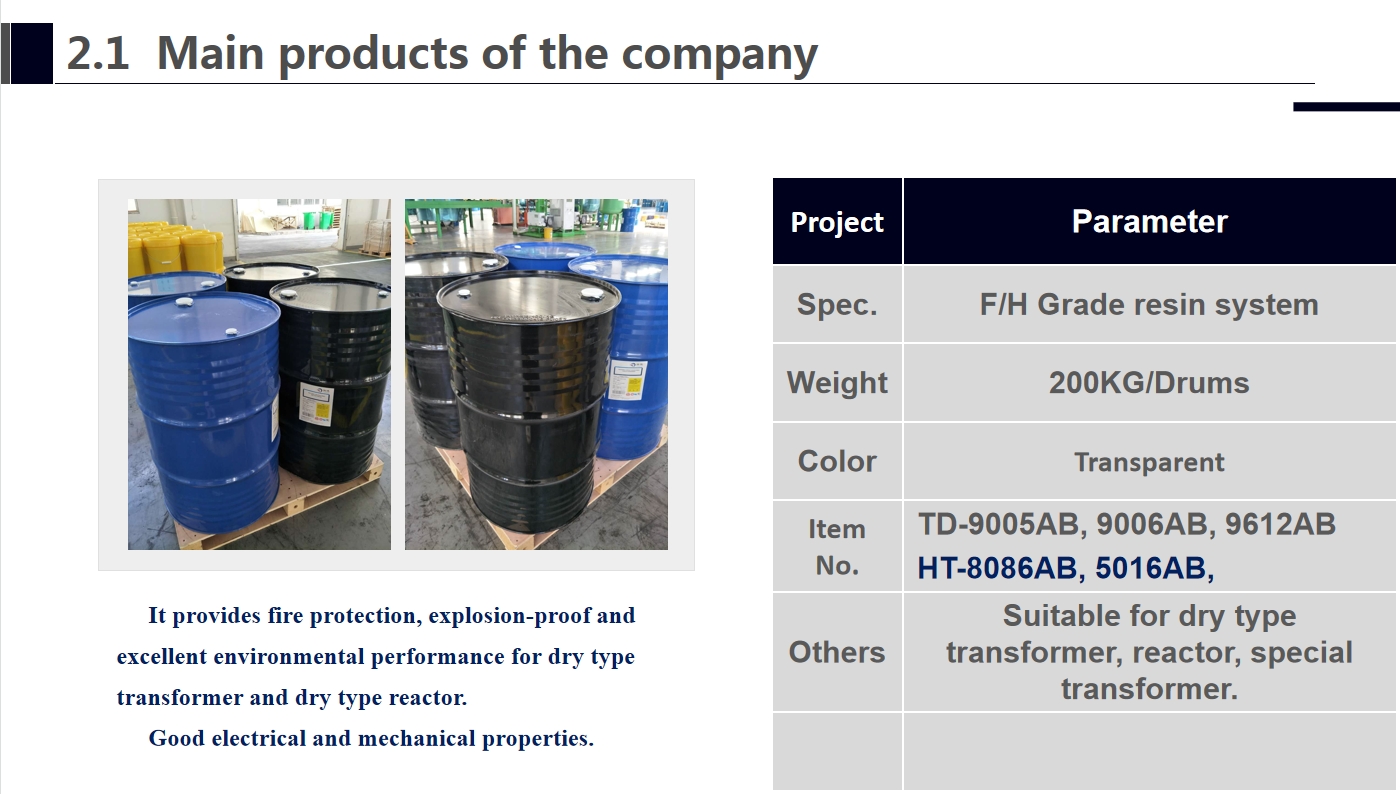

Main Products:Epoxy Resin for transformer CT PT and insulation partsComposite materialsSilicon Steel SheetCopper Foil and StripsAluminum CoilsEpoxy Resin Glue for Storage BatteryOEM manufacturer for Transformer CoilsCasting resin for transformersEpoxy Resin Hardener
ID:21060352423
Category: Metallurgy,Chemicals & Energy Composite Materials
MOQ:800.00 KG
EPOXY RESINEPOXY RESIN FOR TRANSFORMERCast ResinCast Resin for TransformersEpoxyResinHardenerCuring AgentTransformer ResinResin and Curing Agent
L/CT/T

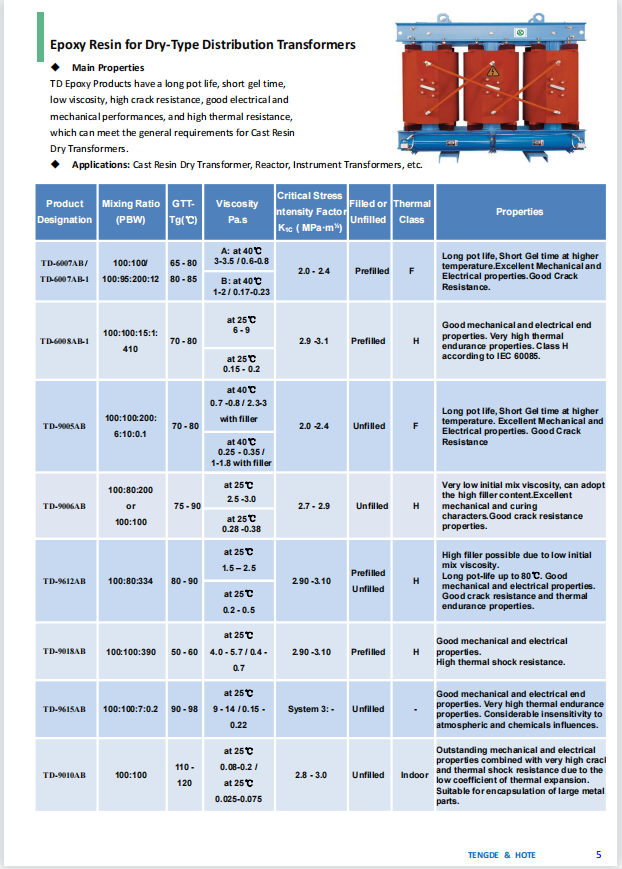

TD-9005A 100 PBW
TD-9005B 100 PBW
Liquid, latency, silicon powder thermocuring casting resin system. Special formula with excellent impregnation performance and convenient operation.
Long pot life, Short Gel time at higher temperature
Excellent Mechanical and Electrical properties
Good Crack Resistance
Mould temperature 70 - 80 °C
Conventional Vacuum Casting 10 - 40 min
Demoulding times
(depending on mould temperature and casting volume)
Conventional vacuum casting 5 - 8 hours
Curing Condition
Conventional Vacuum Casting 6h at 80°C, 4h at 100°C or 8h at 130°C
| Tensilestrength ISO | R | 527 | N/mm2 | 60-70 | ||
| Flexural Strength ISO | R | 527 | % | 1.5-1.8 | ||
| EStretch E modulus | N/mm2 | 10000-12000 | ||||
| Surface Strain | ISO | 178:2001 | MPa | 110-125 | ||
| Compressive strength | % | 1.5-1.7 | ||||
| EE modulus | MPa | 10000-12500 | ||||
| Critical stress intensity factor (KIC) | MPa·m 1/2 2.0-2.4 | |||||
| (GIC)Specific fracture energy(GIC) | J/m2 | 470 - 550 | ||||
| Tg(GTT) Glass TransitionTemperature | ISO 11357-2: 1999 | oC | 70-80 | |||
| Coefficient of linear thermal expansion | ISO 11359:1999 | |||||
| TgLower than average value of Tg | ppm/K | 40 -43 | ||||
| (: 50x50x4cm3) ISO 62 60100°C % 0.15 - 0.2 | % | 0.15 - 0.20 | ||||
25°C Density at 25°C | g/cm3 | 1.53 - 1.58 | ||||
