Business Type: Manufacturer
Main Products:Epoxy Resin for transformer CT PT and insulation partsComposite materialsSilicon Steel SheetCopper Foil and StripsAluminum CoilsEpoxy Resin Glue for Storage BatteryOEM manufacturer for Transformer CoilsCasting resin for transformersEpoxy Resin Hardener
ID:21060352436
Category: Metallurgy,Chemicals & Energy Composite Materials
MOQ:900.00 KG

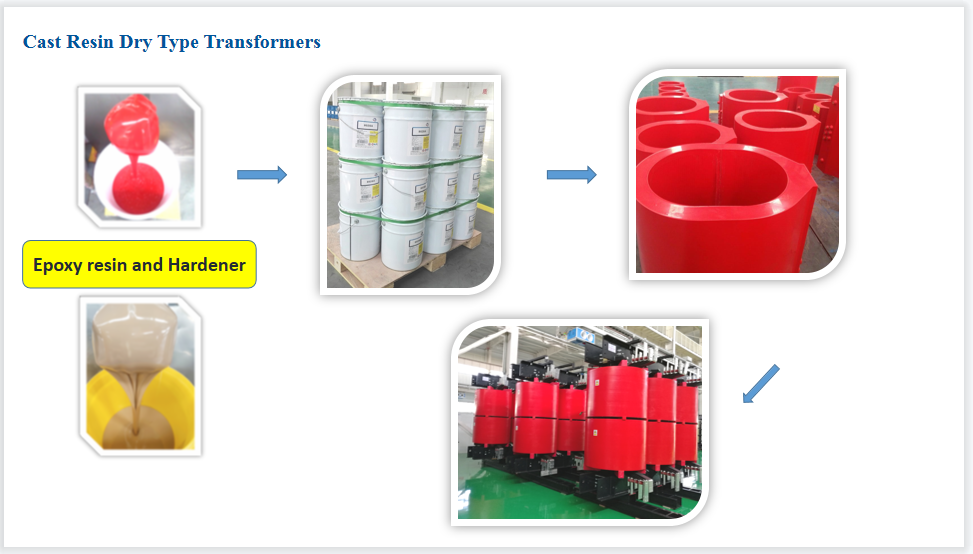

Epoxy ResinCast ResinDry-Type TransformersHot Curing Epoxy Resin SystemBisphenol A Epoxy ResinResin and Curing AgentResin and HardenerClass H PrefilledChemicalEpoxy
L/CT/T
Company profile of Tengde group.
Jiangxi Tengde Industrial Co., Ltd. owned more than five industrial companies, the production workshops mainly located in Jiangxi Province of China, the total area is about 200,000 square meters, which has been engaged in the R&D, production, and sales of insulating materials, electrical materials and other products. Tengde and all of its subsidiaries have obtained ISO9001:2015 international quality system certification, ISO14001 environmental system certification, Occupational Health and Safety Management System Certification, UL certification and a number of utility models and national invention patents. Main products include: Class H dry-type transformer casting resin, indoor and outdoor transformer resin, insulation resin, iron core paint resin, room temperature resin, mold release agent, etc. At present, the products account for 50% of the domestic sales, and offices are set up in China and other countries. In the future, the company will reach deeper cooperation with well-known domestic enterprises as JST, Siemens, etc. It is expected that dry-type transformer and transformer resin market will occupy 75% of the domestic market share, and continue to expand overseas market, such as: Germany, Russia, Dubai, and the year-on-year sales growth is 20%. The company has reached the target of annual output value of 600 million. To meet the needs of enterprise development, ensure the core competitiveness of the company, improve product performance, 10 million has been invested to build a R & D center with the area of 2116 square meters, including more than 20 members with the title of doctor, master, senior engineer, intermediate or above professional titles, and a multi-disciplinary organic complementary, professional R & D team is established. Tengde seized the opportunity of the era and set up a number of subsidiaries in 2015, including Jiangxi Tengde, Hongte, Jinteng, Tengrui, Juchuang, Jingying, Tengyue, Tenghui, Coil Business Unit, etc.

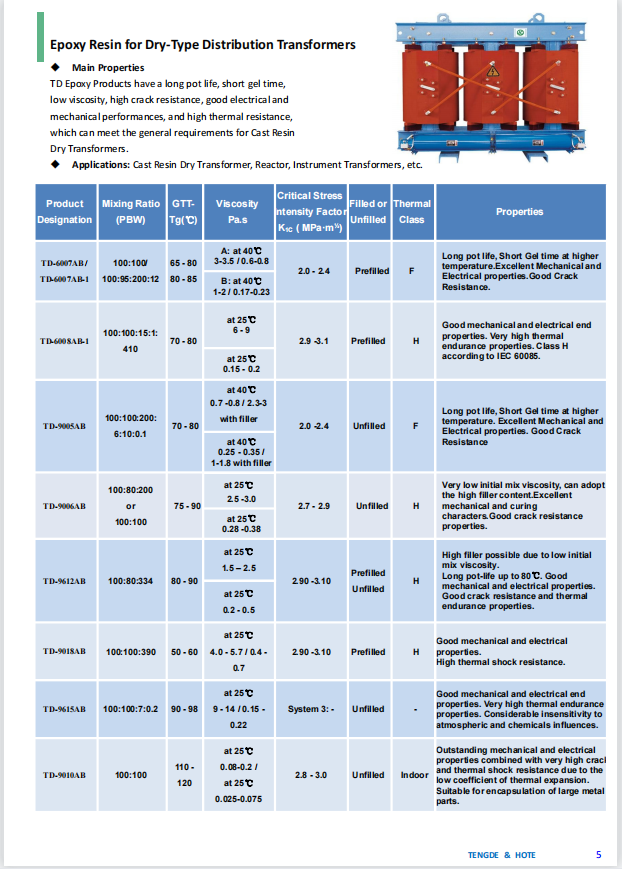

| Product Designation | Mixing Ratio (PBW) | GTT- Tg(oC) | Viscosity Pa.s | Critical Stress Intensity Factor K1C ( MPa·m?) | Filled or Unfilled | Thermal Class | Properties |
| TD-6007AB / TD-6007AB-1 | 100:100/ 100:95:200:12 | 65 - 80 80 - 85 | A: at 40oC 3-3.5 / 0.6-0.8 | 2.0 - 2.4 | Prefilled | F | Long pot life, Short Gel time at higher temperature.Excellent Mechanical and Electrical properties.Good Crack Resistance. |
| B: at 40oC 1-2 / 0.17-0.23 | |||||||
| TD-6008AB-1 | 100:100:15:1: 410 | 70 - 80 | at 25oC 6 - 9 | 2.9 -3.1 | Prefilled | H | Good mechanical and electrical end properties. Very high thermal endurance properties. Class H according to IEC 60085. |
| at 25oC 0.15 - 0.2 | |||||||
| TD-9005AB | 100:100:200: 6:10:0.1 | 70 - 80 | at 40oC 0.7 -0.8 / 2.3-3 with filler | 2.0 -2.4 | Unfilled | F | Long pot life, Short Gel time at higher temperature. Excellent Mechanical and Electrical properties. Good Crack Resistance |
| at 40oC 0.25 - 0.35 / 1-1.8 with filler | |||||||
| TD-9006AB | 100:80:200 or 100:100 | 75 - 90 | at 25oC 2.5 -3.0 | 2.7 - 2.9 | Unfilled | H | Very low initial mix viscosity, can adopt the high filler content.Excellent mechanical and curing characters.Good crack resistance properties. |
| at 25oC 0.28 -0.38 | |||||||
| TD-9612AB | 100:80:334 | 80 - 90 | at 25oC 1.5 - 2.5 | 2.90 -3.10 | Prefilled Unfilled | H | High filler possible due to low initial mix viscosity. Long pot-life up to 80oC. Good mechanical and electrical properties. Good crack resistance and thermal endurance properties. |
| at 25oC 0.2 - 0.5 | |||||||
| TD-9018AB | 100:100:390 | 50 - 60 | at 25oC 4.0 - 5.7 / 0.4 - 0.7 | 2.90 -3.10 | Prefilled | H | Good mechanical and electrical properties. High thermal shock resistance. |
| TD-9615AB | 100:100:7:0.2 | 90 - 98 | at 25oC 9 - 14 / 0.15 - 0.22 | System 3: - | Unfilled | - | Good mechanical and electrical end properties. Very high thermal endurance properties. Considerable insensitivity to atmospheric and chemicals influences. |
| TD-9010AB | 100:100 | 110 - 120 | at 25oC 0.08-0.2 / at 25oC 0.025-0.075 | 2.8 - 3.0 | Unfilled | Indoor | Outstanding mechanical and electrical properties combined with very high crack and thermal shock resistance due to the low coefficient of thermal expansion. Suitable for encapsulation of large metal parts. |
TD-9006A 100 PBW
TD-9006B 100 PBW
Based on Bisphenol A/F, liquid, hot-curing casting resin system suitable for Class H dry-type distribution transformers with good electrical and mechanical end-properties
Very low initial mix viscosity, can adopt the high filler content
Excellent mechanical and curing characters
Good crack resistance properties
Class H according to IEC 60085
Mould temperature
Conventional vacuum casting 80-100oC
Conventional Vacuum Casting 10 - 40 min
Demoulding times
(depending on mould temperature and casting volume)
Conventional vacuum casting 4 - 8 h
Curing Condition
Conventional Vacuum Casting
4h at 80°C + 10h at 130°C or 4h at 80°C + 6h at 140°C
Glass Transition Temp. 75 - 90 °C
