Business Type: Manufacturer
Main Products:Motor Operated ValveElectric Actuated ValvePneumatc Actuated ValveGate ValvesGlobe ValvesKnife Gate ValvesBall ValvesButterfly ValvesPneumatic Control Valves
ID:21060653099
Category: Manufacturing & Processing Machinery Valves & Pumps & Compressors
MOQ:1.00 Piece(s)
Motorized Valvesmotorized knife gate valveKnife Gate Valveselectric knife gate valvesmotor operated gate valve
T/TPaypal
Features Of HK60Z-D Electric Actuated Knife Gate Valve:
● Multi turn electric actuator with high torque up to 10,000Nm
● Aluminum shell with features of anti-oxidation, anti-corrosion, can be used outdoors
● Long service life and excellent cutting performance
● Suitable for mud, pulp, wastewater, and other mediums
● Stainless steel knife with anti-corrosion performance
● Available in Profibus Fieldbus, Modbus Fieldbus, Hart Fieldbus, FF Fieldbus and Device Net Fieldbus
Technical Parameters Of HK60Z-D Electric Actuated Knife Gate Valve:
| Actuator Type | Multi-turn electric actuator | Size Range | DN15-DN600 |
| Connection | Lugged or Flanged | Seal Material | PTFE / Metal |
| Medium | Air, water, steam, oil, mud, etc | Working Pressure | 10 / 16 bar (145 / 232 psi) |
| Body Material | Carbon Steel, Stainless Steel 304/316/316L, Cast Iron, and Cast Steel | Temperature Of Media | -10 to 400℃ (14℉ to 752℉) |

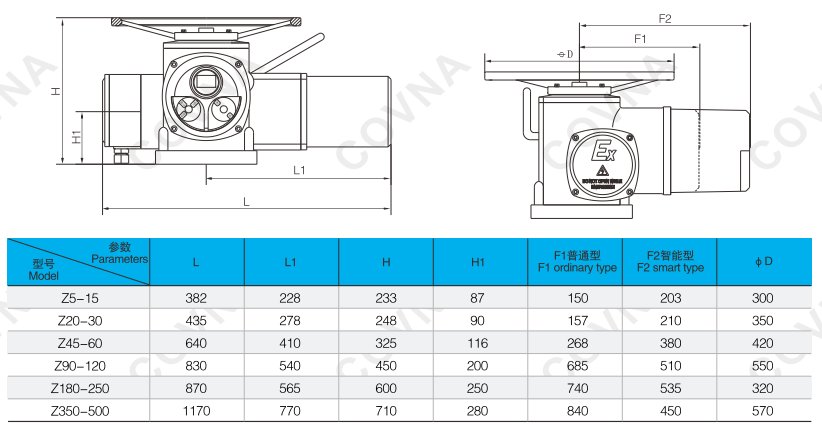

Technical Parameters Of Electric Gate Valve Actuator:
| Power Supply | 380V AC +10% / 50 Hz plus or mins 5%, or custom 220V AC +10% / 50 Hz plus or mins 5%, or custom |
| Input Signals | A) Analog quantity 4mA-20mA DC, input impedance 250Ω B) On-of quantity active 24V DC C) The profibus-dp or MODUS (optional) |
| Output Signal | A) 4mA-20mA DC, load resistance 750Ω or less B) 6 groups of passive contacts C) Profibus-DP or MODUS (optional) |
Welcome to consult us to get a free valve solution and product datasheet!
