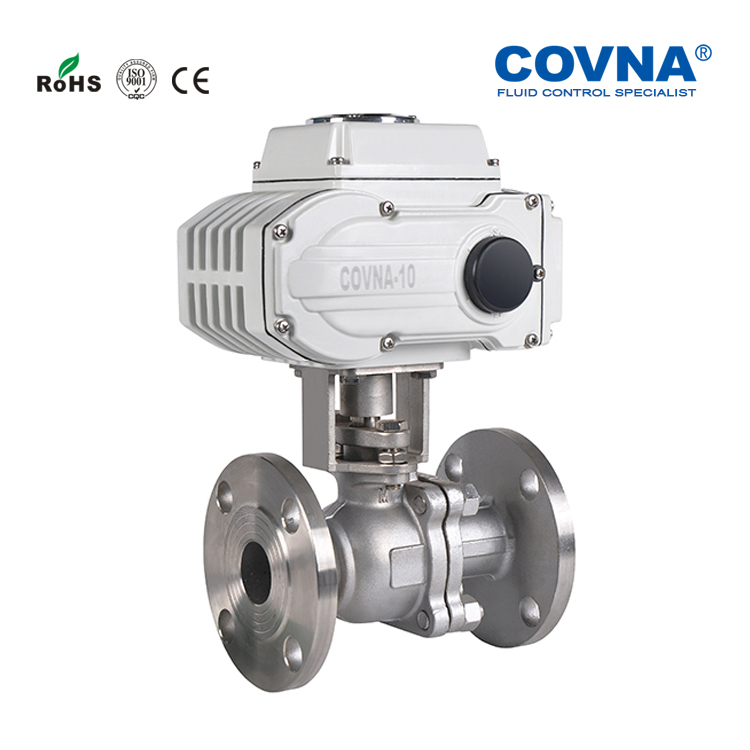

Features Of HK60-Q-F Flanged Electric Actuated Ball Valve:
● Flanged connection with features of large size range for choice and easy to install
● Available in ANSI, JIS, DIN, GB standard to meet your pipeline requirement
● Available in stainless steel 304/316/316L material for your project
● Long working time and long lifespan up to 700,000 lifespans
● Multi control methods: AC/DC power supply, signal control and manual override
● Widely used in paper and pulp, power plant, wastewater treatment, shipyard, food and beverage, etc
● Available in high-temperature type which could withstand the high-temperature mediums
● Also available in 3 way and 4 way ball valve type for your choice
Technical Parameters Of HK60-Q-F Flanged Electric Actuated Ball Valve:
| Size Range | DN15 to DN200 | End Connection | Flanged |
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 145 / 232 / 290 / 580 / 928 psi |
| Temperature Of Media | Normal Type: -22℉ to 356℉ High Temperature Type: -22℉ to 842℉ | Suitable Media | Water, Air, Oil, Gas, Steam, Pulp, etc |
| Structure | Floating Ball Valve | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Actuator Type | ON OFF Type, Modulating Type or Intelligent Type | Voltage Tolerance | ±10% |
COVNA also manufactures Flanged Electric Actuated Ball Valve with Bracket which could withstand high temperature up to 842℉. And the bracket could keep the actuator far from the mediums to keep it safe. Widely used in high-temperature industries like paper and pulp, chemical industry, and so on.
Dimension Of HK60-Q-F 2 Way Flanged Electric Actuated Ball Valve:
Technical Parameter Of COVNA Quarter-Turn Electric Valve Actuator:
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with a servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral position signal feedback | ||||||||
