Features Of HK60-D-F Flanged Electric Butterfly Valve(Electric Ducting Butterfly Valve):
● Flanged connection in ANSI, JIS, DIN, GB standard for your choice
● Available in cast iron and stainless steel 304/316/316L material for you
● 5 types of seal for your options: NBR, EPDM, VITON, PTFE and Metal
● Widely used in FGD industry, wastewater treatment, power plant, shipyard, paper and pulp, food and beverage, etc
Tell us your needs of the butterfly valve and we are happy to help you to resolve it
Technical Parameters Of HK60-D-F Flanged Electric Butterfly Valve(Electric Ducting Butterfly Valve):
| Medium | Air, water, oil, gas, etc | Port size | 2", 2.5", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24". Up to 72" |
| Structure | Midline structure A type | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Port Thread | Flanged | Voltage Tolerance | ±10% |
| Body Material | Cast iron and Stainless steel 304/316/316L | Working Pressure | 145 psi to 5800 psi |
| Disc Material | Stainless steel 304/316/316L | Temperature Of Media | 14℉ to 752℉ |

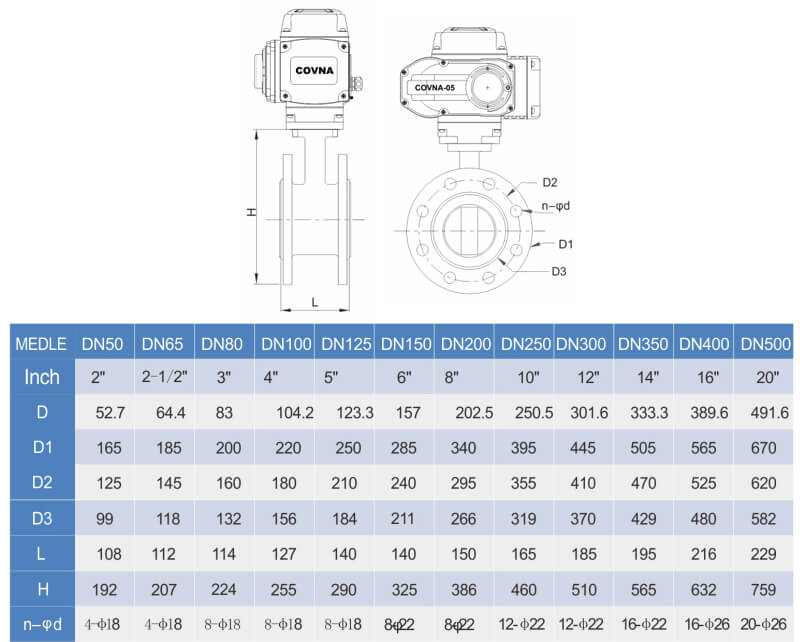

Dimension Of HK60-D-F Flanged Electric Butterfly Valve:
Technical Parameter Of COVNA Quarter-Turn Electric Valve Actuator:
COVNA offers quarter-turn electric valve actuator in ON/OFF type, regulating type, intelligent type for you.
Meanwhile, we also offer IP68 submersible electric actuator and explosion-proof electric actuator to meet your different requirements.
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 or IP67 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with a servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral position signal feedback | ||||||||
