Hydrodynamic Coupling

The power transmission is done by mass forces of the operation liquid according to the "Frottinger Prinzip".The impeller pump absorbs the mechanical power of the drive and increases the energy of the circulating operating liquid. The turbine wheel takes energy away from the operating liquid and outputs mechanical power. There is not any fixed connection between both wheels. Slight power losses, caused by the for the power transmission necessary slippage, will be transformed to heat.

The permissible ambient temperature range of the hydrodynamic coupling in standard design is between -25℃ ~ +40℃ (other values on request).

Power is transmitted through oil or water flow in between the coupling propeller and turbine. Certain amount of liquid is filled in working circuit to ensure stable speed output.

Range : Maximum power up to 1750KW.

Size & Type : Outer diameter ranges from 328mm to 1295mm

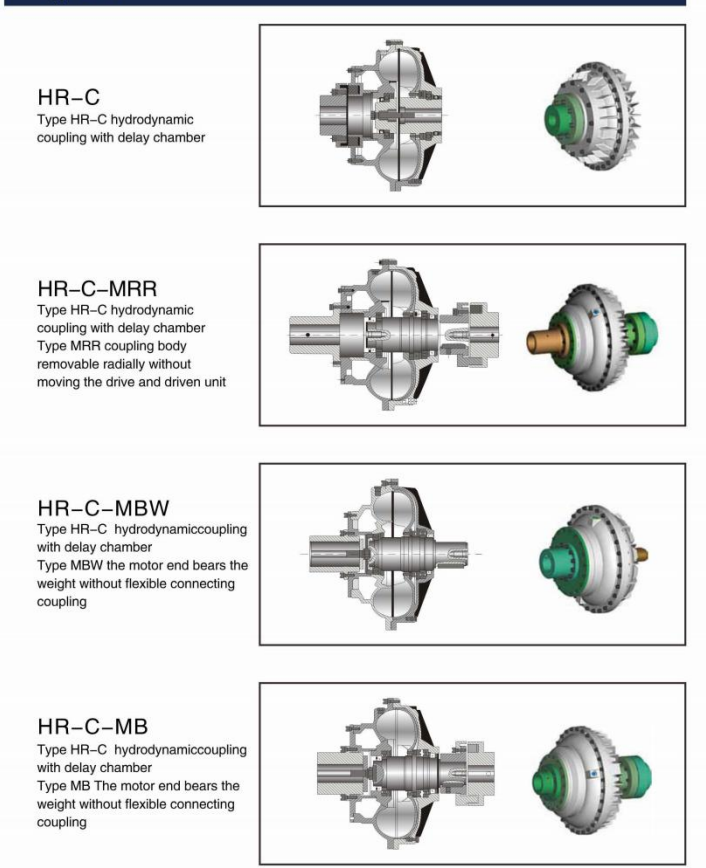

Model : HR-/HR-C/HR-CC/HR-D/HR-B/ HR-CB/HR-CCB/HR-DB/HR-S/HR- CS/HR-CCS/HR-DS/HR-P/HR-CP/HR- CCP/MRR/MB/MBW

Application : Conveyors, induced-draft fans, ball mills, crushers, slurry pumps, mixers, cranes, etc.

Industries : thermal power plants, steel & iron works, cement, mining, chemistry, petroleum, port & wharf, docks, sugar, etc.
