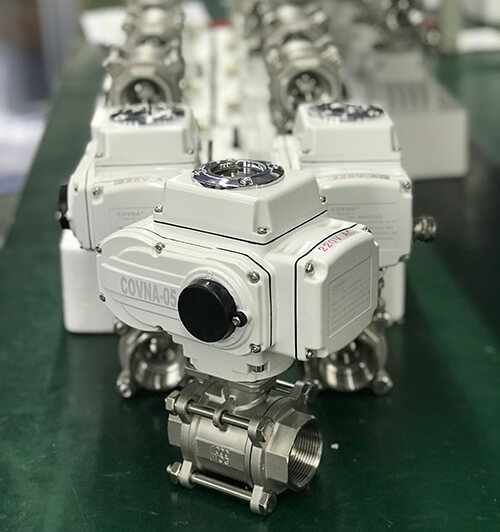

What Is Electrically Operated 3-Piece Ball Valve?
An electrically operated 3-piece ball valve means a 3-piece ball valve driven by an electric actuator. A 3-piece ball valve made of 3 parts and it is easy to disassemble and repair to extend the lifespan. The ball rotates around the centerline of the valve body to open or close the valve.
Whatsmore, an electric 3-piece ball valve available in threaded, flanged, tri-clamp and welded connection to meet different applications
Features Of 3-Piece Electric Actuated Ball Valve:
● 3-piece ball valve design. Easy to maintenance and repair to extend the lifespan
● 4 Versions of seals for choice: NBR, EPDM, VITON, PTFE, and PPL. To meet various mediums requirements
● Multi control methods for your choice: AC/DC power supply, signal control, and manual override
● Full port design with high flow rate feature

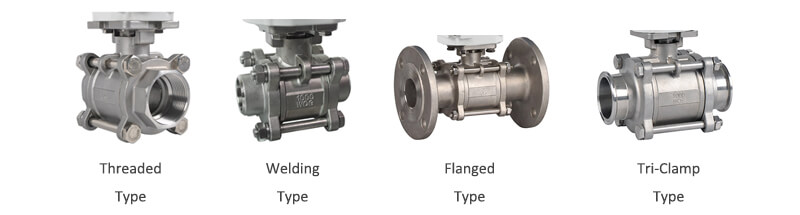

● Available in threaded, flanged, tri-clamp, and welding connection to meet your pipeline's standard
● Vast applications like water treatment, HVAC, paper & pulp, power plant, FGD industry, and other applications
Technical Parameters Of 3-Piece Electric Actuated Ball Valve:
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 145 / 232 / 290 / 928 psi |
| Temperature Of Media | -10 to 180℃ (14℉ to 356℉) | Suitable Media | Water, Air, Oil, Gas, Pulp, etc |
| Structure | 2 Way 3-Piece ball valve | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Port size range | DN08 to DN100 | Voltage Tolerance | ±10% |
| Actuator Type | ON OFF Type, Modulating Type, Intelligent Type and Explosion-proof Type | Connections Options | Threaded/Flanged/Welding/Tri-clamp |
Technical Parameter Of COVNA Quarter-Turn Electric Valve Actuator:
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with a servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral position signal feedback | ||||||||
