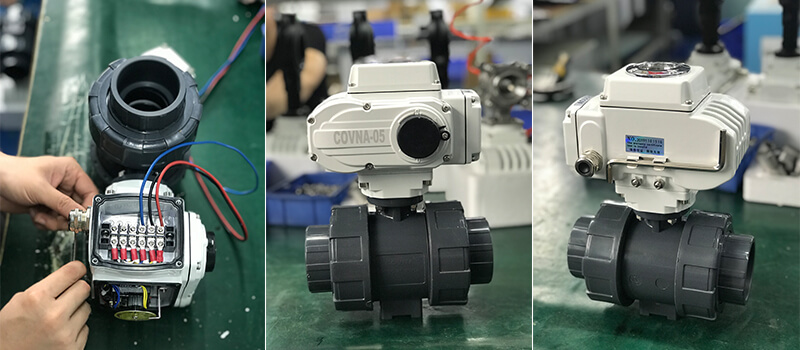

What Is Electric UPVC Ball Valve?
Electric UPVC ball valve means a UPVC ball valve driven by an electric actuator to open or close. To achieve local control or remote control. Meanwhile, the switch angle could be adjusted by the electric valve actuator to realize the flow control purpose.
What's more, we could offer the ball valve in CPVC, PPH, PVDF material to meet your different requirements.
Features Of HK60-Q-P True Union 2 Way PVC Electric Ball Valve:
● Available in on/off type, modulating type and intelligent type for your choice to make your automation easier
● Available in AC/DC power supply, signal control and manual override
● Double union quick connection
● High torque up to 4000Nm
● Long lifespan and long service time
● Available in ANSI, JIS, DIN, UK
● Made by plastic material with features of lightweight and low cost. Offering cost-effective valve solution for you and help you save time and cost

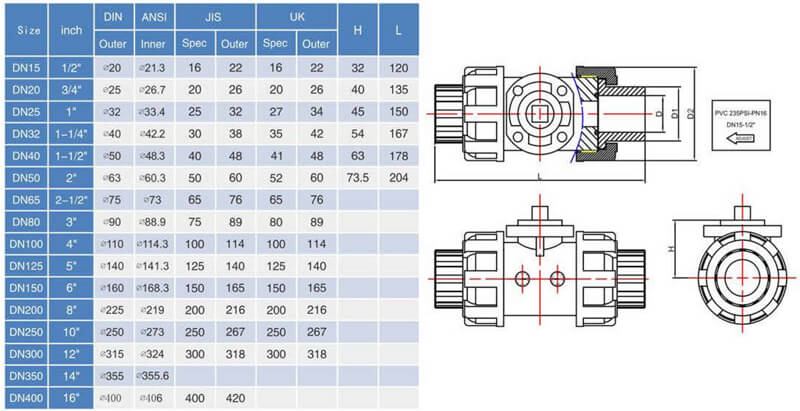

Technical Parameters Of HK60-Q-P True Union 2 Way PVC Electric Ball Valve:
| Port size | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" | End Connection | True Union |
| Connection Standard | ANSI, DIN, JIS, UK | Body Material | Plastic (UPVC, CPVC, PP and PPL are available) |
| Working Pressure | 10 / 16 bar (145 / 232 psi) | Temperature Of Media | -5 to 80℃ (23℉ to 176℉) |
| Suitable Media | Water, Air, Oil, Gas, etc | Structure | 2 Way ball valve |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V | Voltage Tolerance | ±10% |
Technical Parameter Of COVNA Quarter-Turn Electric Valve Actuator:
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with a servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral position signal feedback | ||||||||
