Features Of HK60-Q-W Food Grade Electric Actuator Ball Valve:
● Food grade ball valve with electric actuator which could allow your automation easier
● Tri-clamp quick connection
● Manual override, signal control and AC/DC power supply are available
● Well for the food industry, medical industry and so on
● Suitable for milk, drink, water and other mediums
Technical Parameters Of HK60-Q-W Food Grade Electric Actuator Ball Valve:
| Size Range | 19mm to 102mm | Medium | Air, water, steam, oil, liquid, etc |
| Core Material | Stainless Steel 304/316/316L | Structure | 2 Way Ball Valve |
| Body Material | Stainless Steel 304/316/316L | End Connection | Tri-clamp |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V | Voltage Tolerance | ±10% |
| Working Pressure | 10 / 16 bar (145 / 232 psi) | Temperature Of Media | -10 to 180℃ (14℉ to 356℉) |

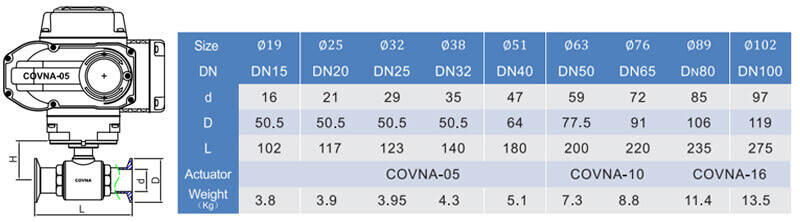

Dimension of 2-Way Electric Ball Valve

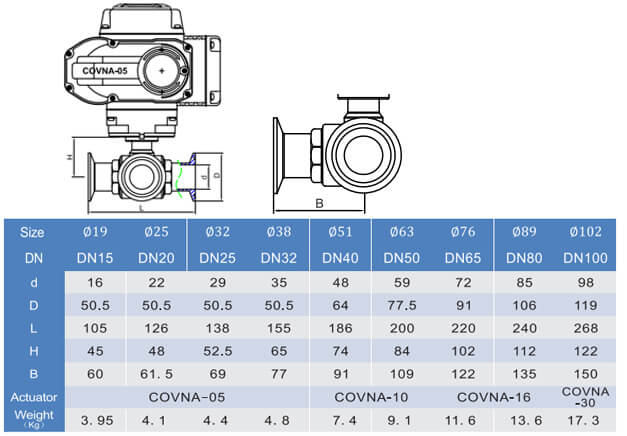

Dimension of 3-Way Electric Ball Valve
Technical Parameter Of COVNA Quarter-Turn Electric Valve Actuator:
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with a servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral position signal feedback | ||||||||
