Slurry Pump Type Used for Industry

Description

AHK、HHK type slurry pump is single stage single suction cantilever horizontal centrifugal pump,and it is to replace PN、PH type.It is widely used in metallurgy,mining,coal,electric power and construction materials and other industrial department transmitting liquid that has suspended solid particles,like concentrate、tailing、ash、coal cinder、concrete、soil、gravel and other strong hardness、strong abrasion high concentration slurry,and the temperature of transmitted medium is less than 80 ℃,weight concentration of slurry can be up to 60％.

AHKR type rubber lined pump is used to transmit slurry medium that contains suspended solid particles.It has good abrasion resistance,resistance to erosion resistance of tear,and high elastic and chemical stability, and it is used to pump blunt fine particles with the effect better than metal.

Application Area

AHK、HHK type slurry pump is applied in metallurgy,mining,coal,electric power and construction materials and other industrial department.

AHKR type rubber lined pump is wildly used in metallurgy,mining,coal,power plant,chemical plant construction materials and other industrial and mining enterprises.

Performance Range

Inlet diameter：DN=40-350mm

Capacity：Q=7.56-1692m3/h

Head：H=6-97m

Speed：n=300-3800r/min

Matched power：P=2.2-480kW

Structural Characteristics

The inlet of AHK type slurry pump is axial and its outlet is radial.The user can make adjustments on the direction of inlet in the direction of circle ,of which the limitation angle is 45°；

AHK type slurry pump rotates anticlockwise from the direction of suction side.There are usually four kinds of drive:DC,CV,ZV,CR.

Soft packing seal or auxiliary impeller seal is used for the shaft seal.

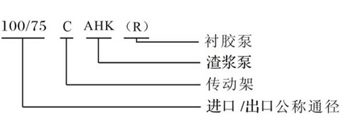

Model significance

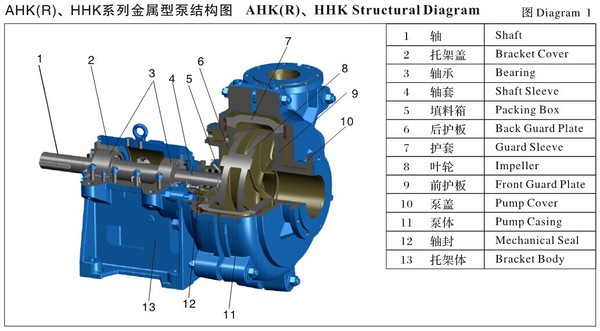

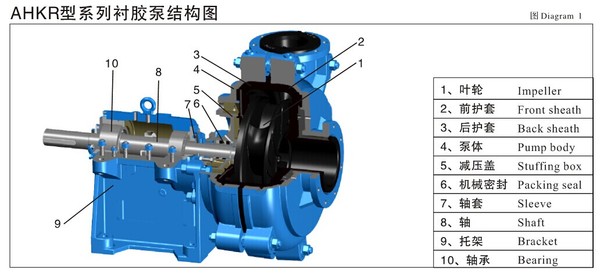

Sectional Drawing

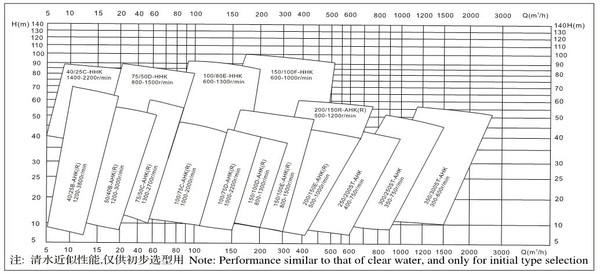

Range Coverage Chart
