Aluminum Building Formwork Profiles

ID:21061055854

Category: Construction & Decoration Building Structural Material

FOB Price:US$ 1.000 / KG

MOQ:500.00 KG

Product Keywords:

aluminum profilesbuilding formworktemplate

Payment Method:

L/CT/TD/P

Product Category

Construction & Decoration > Building Structural Material

Trademark

Product Package

Specification

Place of Origin

Port

China Port

Easy-Assembling Aluminium Profiles for Building Formwork,H BEAM (Alloy 6061-T6)

140-H BEAM (Alloy 6061-T6)

X-Sectional Area (As) = 1233 mm²
Yield Strength (Fy) = 241 Mpa
Bending Moment (Allowable) = 4.03 KN-m (S.F. = 2.0)
Shear Strength (Allowable) = 59.45 KN (S.F. = 2.0)

122-H BEAM (Alloy 6061-T6)

X-Sectional Area (As) = 1041.92 mm²
Yield Strength (Fy) = 241 Mpa
Bending Moment (Allowable) = 3.19 KN-m (S.F. = 2.0)
Shear Strength (Allowable) = 50.22 KN (S.F. = 2.0)

SPACING TABULATION (FOR 140-H BEAM)

SLAB THICKNEWW(mm)	IMPOSED LOAD(mm)	JOIST SPACING(mm)	LEDGER SPACING(mm)	PROPS SPACING(mm)
100	9.47	610	2000	1400
150	11.15	488	2000	1350
180	12.16	488	2000	1300
200	12.83	488	2000	1250
250	14.51	488	2000	1200
280	15.52	488	1800	1150
300	16.19	406	1800	1100
350	17.87	406	1800	1000
400	19.55	406	1600	1000

Imposed load is 1.4 DL + 1.7 LL, where LL is 50 psf + 25 psf impact load.
The suggested ledger and props spacing may very depending on the length of joist and floor height.
Floor height considered in this analysis is 3.6 meters and length of joist is 3.9 to 4.5 meters.

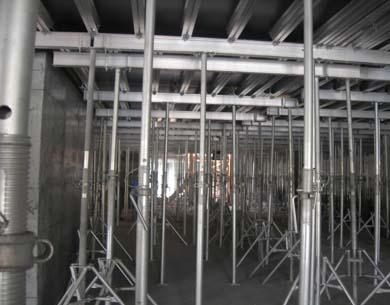

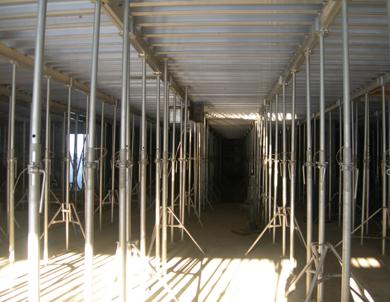

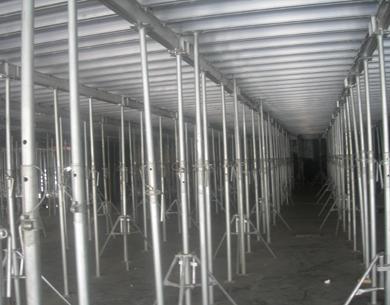

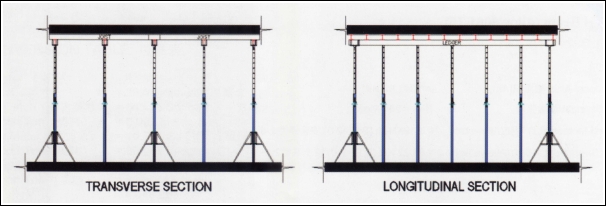

Easy Assembling H BEAM 6061 T6 Building Aluminum Formwork Profiles 0

TECHNICAL DATA

H-BEAM TYPES

140 H Beam with Wood 140 H Beam 122 H Beam
(For Joist) (For Joist & Ledger) (For smaller slab thickness)

MAIN COMPONENTS & ACCESSORIES

Diagram	Description	Weight	Article No.
	140-H Beam	3.15 Kg/m	2010000
	140-H Beam with wood	3.16 Kg/m	2030000
	122-H Beam	2.73 Kg/m	2040000
	A Clamp	0.11 Kg	7000000
	U-head	2.55 Kg	0500001
	Swivel coupler	1.20 Kg	0500002
	Props 3.6m	17.32 Kg	3102136
	Tri-pod	5.32 Kg	3000018
