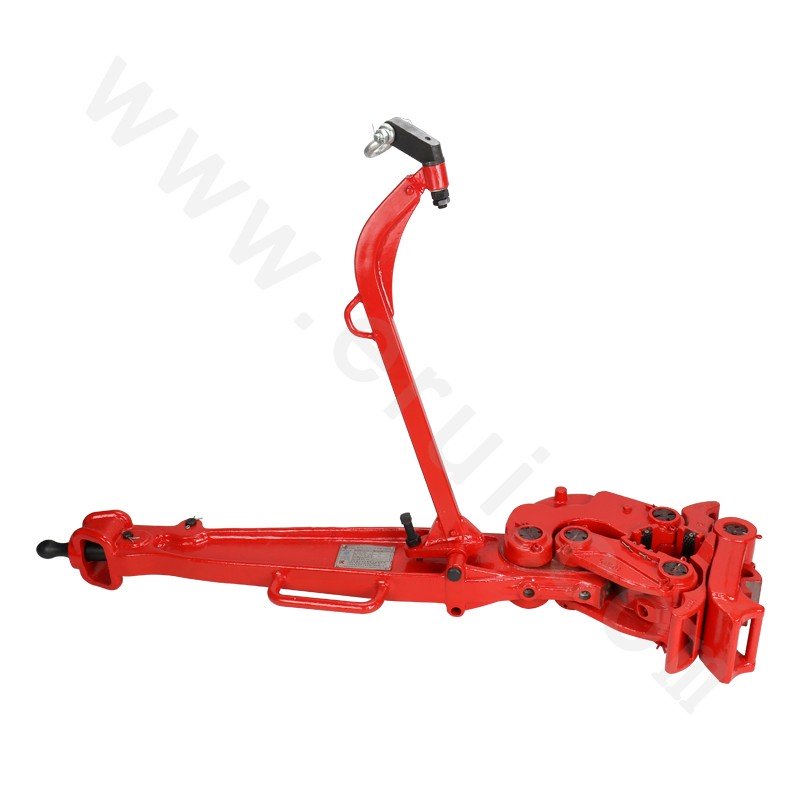

Manual TongManual Tong Type B
L/CT/TD/PWestern UnionPaypalMoney GramOthers
Manual Tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps
can adjust different handling sizes of the tongs. They are designed and manufactured according to API Spec
7K Specification for drilling and well servicing equipment.
Main Technical Parameters:
| No.of Latch Lug jaw | Latch step | Size Range mm (in) | Rated Torque(kN.m) |
| 5a | 1 | 86～105(3-3/8～4-1/8) | 55 |
| 2 | 105～133(4-1/8～5-1/4) | ||
| 5b | 1 | 108～133(4-1/4～5-1/4) | 75 |
| 2 | 127～146(5～5-1/4) | ||
| 3 | 152～171(6～6-3/4) | ||
| 5b～1 | 1 | 133～146(5～6) | 75 |
| 2 | 146～168(6～7) | ||
| 3 | 168～208(7～8) | ||
| 5c | 1 | 168～187(6-5/8～7-3/8) | 75 |
| 2 | 187～203(7-3/8～8) | 55 | |
| 3 | 216～219(8-1/2～8-5/8) | ||
| 5d | 1 | 216～244(8-1/2～9-5/8) | 55 |
| 2 | 270～273(10-5/8～10-3/4) | ||
| 5e | 1 | 298(11-3/4) | 55 |
| 2 | 324(12-3/4) | ||
| 5e1 | 1 | 273(10-3/4) | 55 |
| 2 | 298(11-3/4) | ||
| 5e3 | 1 | 330(13) | 55 |
| 340(13-3/8) |

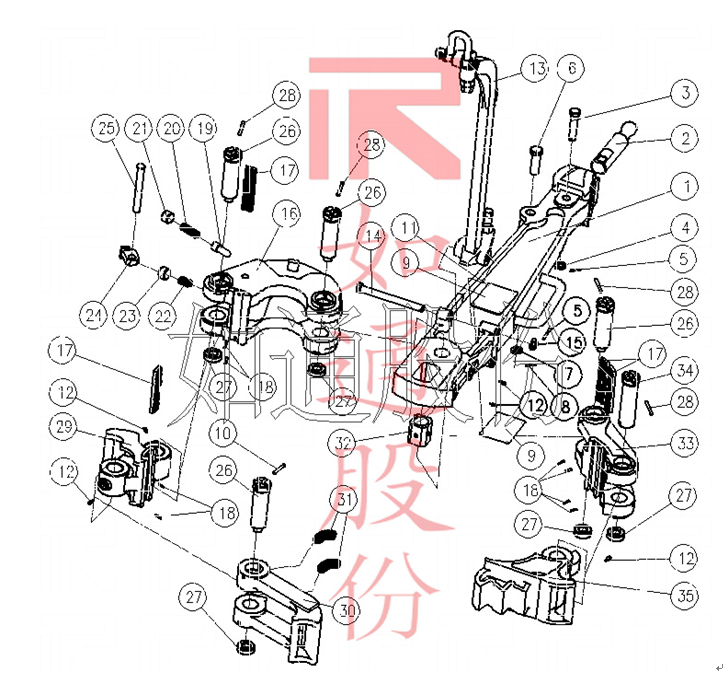

Parts List:
| NO. | Part Number | Description | Qty. |
| 1 | 10401021 | Lever | 1 |
| 10401022 | Short Lever | ||
| 2 | 10401018 | Tong Line Pin * | 1 |
| 3 | 10401019 | Tong Line Pin Retainer * | 1 |
| 4 | 130701852 | Washer * | 1 |
| 5 | 130701956 | Cotter Pin * | 2 |
| 6 | 10401020 | Pin * | 1 |
| 7 | 130701854 | Washer Pin * | 1 |
| 8 | 130701956 | Cotter Pin * | 1 |
| 9 | 130303002 | Nameplate | 1 |
| 130303002002 | Nameplate Of Handling Range | ||
| 10 | 130701989 | Cotter * | |
| 11 | 130701300 | Rivet | 8 |
| 12 | 130305130 | Grease Fitting * | 10 |
| 13 | 10401037 | Hanger Assembly | 1 |
| 14 | 10401017 | Hanger Bolt * | 1 |
| 15 | 130701852 | Washer * | 1 |
| 16 | 10401048 | Long Jaw | 1 |
| 17 | 1605078 | Die * | 5 |
| 18 | 130701954 | Cotter Pin * | 10 |
| 19 | 10401023 | Booster Plunger * | 1 |
| 20 | 130302003 | Booster Plunger Spring * | 1 |
| 21 | 10401024 | Booster Spring Retainer Plug * | 1 |
| 22 | 130302002 | Adjustable Stop Spring * * | |
| 23 | 10401011 | Adjustable Stop Plunger * | 1 |
| 24 | 10401014 | Adjustable Stop * | 1 |
| 25 | 10401013 | Adjustable Stop Bolt * | 1 |
| 26 | 10401015 | Hinge Pin(Threaded) * | 4 |
| 27 | 10408029 | Hinge Pin Nut * | 4 |
| 28 | 130701987 | Cotter Pin * | 5 |
| 29 | 10401002 | Latch Jaw | 1 |
| 30 | 10401001 | Latch | 1 |
| 31 | 130302004 | Latch Spring * | 2 |
| 32 | 10401016 | Lever Hinge Pin Block* | 1 |
| 33 | 10401041 | Short Jaw | 1 |
| 34 | 10401025 | Hinge Pin(Removable) * | 1 |
| 35 | 10401005 | 5a lug jaw 33/8～51/4 | 1 |
| 10401006 | 5b lug jaw 41/4～63/4 | 1 | |
| 10401007 | 5b lug jaw 51/4～8 | 1 | |
| 10401008 | 5c lug jaw 65/8～85/8 | 1 | |
| 10401009 | 5d lug jaw 81/2～103/4 | 1 | |
| 10401010 | 5e lug jaw 113/4～123/4 | 1 | |
| 10401046 | 5e1 lug jaw 103/4～113/4 | 1 | |
| 10401047 | 5e3 lug jaw 13～133/8 | 1 | |
| * Wear Parts | |||
