Vertical Drying Oven for Water-based paints

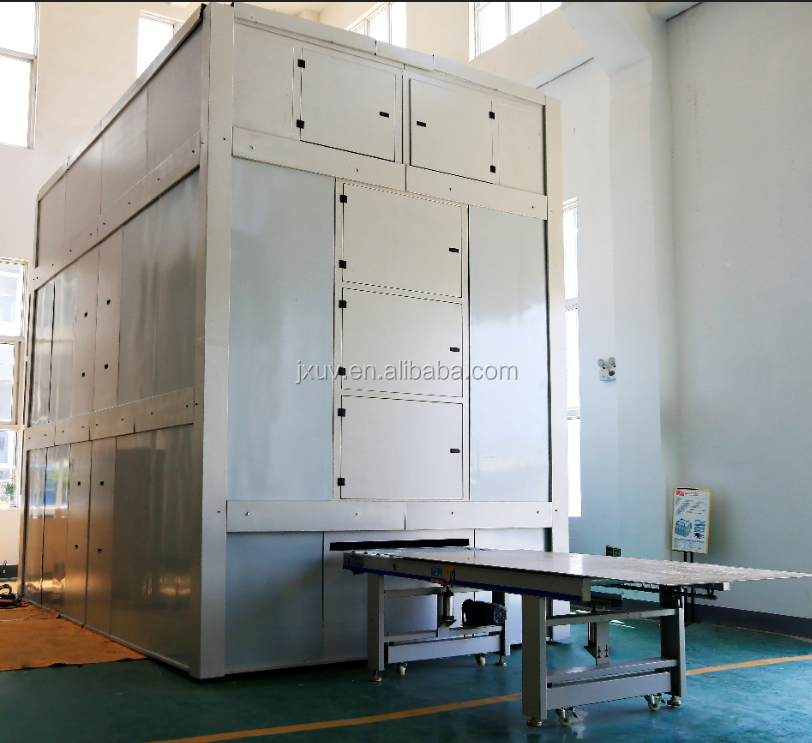

1300mm Tray Type Vertical Drying Oven

Machine Configuration

1. The machine is welded by angle and square pipes, and the body is assembled by cold-rolled steel plate.

2. The whole equipment adopts electrostatic spray (high temperature baking at 180°C), which is beautiful, corrosion resistant and easy to clean.

3, the use of three-dimensional drying structure, suitable for the unified specification (1220x2440) calcium silicate board drying.

4, for the effectiveness of water-based paint requirements, large batches of continuous automatic paint after the paint dry, improve product quality and production efficiency, cost savings and footprint.

5, the main part of electrical control for Siemens (processor) and France Schneider Electric products, control sensitivity and durability.

6. The motor adopts a three-phase asynchronous deceleration motor, and the speed control adopts Siemens V20 and G120 series inverters for speed regulation and stable performance.

7, the control circuit design is reasonable, motor overload protection, control circuit insurance, fan motor insurance, digital display temperature controller, power indicator and so on.

8. Two-column design, can accommodate 50 boards, comb-like structure to hold up the work, programming and control agencies work.

9. Feed and discharge ends each have a set of power-conveying rollers, which are driven by variable-frequency motors to ensure smooth and balanced speed.

10. The standard ventilation design adopts side-parallel ventilation and equipped with temperature and humidity sensing device to ensure that the workpiece has no dead angle in the body temperature.

11. The unique sensor automatic recognition function ensures that the workpiece enters the tray and continues to operate normally.

12, using automatic identification control, reasonable integration of optimized control, drive, movement, transmission, to provide efficient and reliable mechanical action to provide guarantees.

In addition, customers need to provide:

1, voltage: 380V, 50Hz three-phase five-wire system.

2, heat source

Technical Parameter

Model

JXYVDT-50/88

Model

JXYVDT-50/88

Working Width(mm)

1220

Fan DKT325-11-55

2pcs

Hot airFan component(m3/h)

1688~3517

Fan DKT-28

40

Bracket length(mm)

50

Total Power(kw)

12.7

Working thickness(mm)

30

Sum of heat(Kcal/h)

100000

Max. transport length(mm)

2440

Machine size(mm)

5600×3400×5200
