FTG250-250 plunger pump

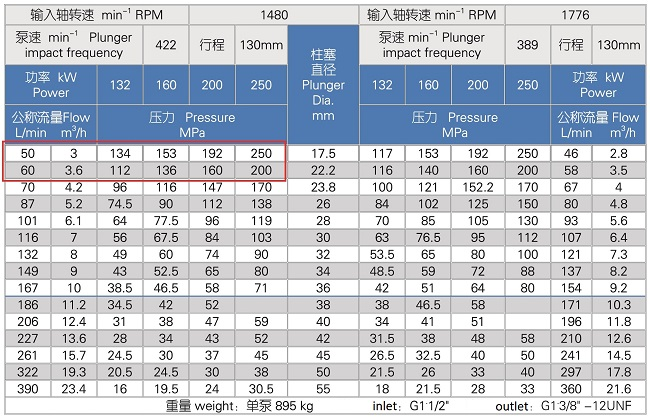

Flow range: 50-390L / min;  Pressure range: 11-250 Mpa

Product features

FTG250 series high pressure plunger pump is an ultra-high pressure piston pump produced by introducing advanced technology from the United States.

This series of products are characterized by compact structure, small volume, light weight, low noise, small pulse, low pump speed, stable operation and high efficiency. The power end gearbox is with forced lubrication. The high-speed shaft and crankshaft are driven by herringbone gears. The transmission is stable and reliable, and the temperature rise at the power end is low. It is suitable for long-time operation. The hydraulic end adopts the technology introduced from America, with reasonable design, easy maintenance and reliable operation.

Scope of application

It is suitable for ultra-high pressure water jet cleaning, metal cutting, ship paint and rust removal, powder metallurgy and chemical plants, sugar plants, power plants condensers, heat exchangers, evaporating tanks, boilers, all kinds of tank kettle descaling. It can transport clear water, emulsion, etc.
