Air-Compressor EquipmentAuto Air Compressors
L/CT/TD/P

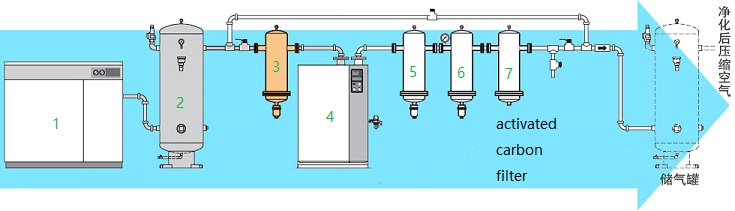

① Screw air compressor
② Air storage tank
③ Pre-filter (P)
④ Dryer
⑤ Back filter (A)
⑥ Fine filter (F)
Configuration description
After the compressed air output from the air compressor to the air storage tank, the compressed air first passes through the (P-Level) pre-filter and then enters the dryer to remove most of the moisture in the compressed air, and then pass through the (A-level) back filter, the quality of the compressed air can reach: The particle size of dust≤1um and the oil content≤0.1ppm.
If the (F-level) fine filter is equipped, the quality of compressed air can be better: dust particle size ≤ 0.01um, oil content ≤ 0.01ppm.
The following configuration is equipped with activated carbon filter(7) , which can remove the odor in the compressed air, so as to be used in the working conditions with special requirements for odor.
