Core filling snacks food production machine equipment

1. Description:

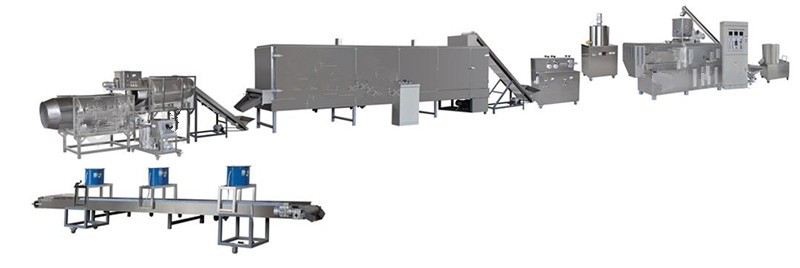

Core filling snacks production line includes batch mixer and screw feeder, twin screw extruder and forming equipment, filling stuff equipment, Belt dryers and coating drum.

2 Raw Materials: the soft filling materials include chocolate, cream, jelly, fruit paste, date paste. The ingredients of the outer part is generally wheat, a variety of other cereal grains can also be progressed such as rice, corn, barley, rye, oats, sorghum, etc.

3. Products: Variety shapes are available for the core-filled food, including pillows, tubes, bars, long and short ovals, heart shape by adjusting the roller in the shaper. Also, It can produce snacks cereals etc by adjusting the mould from extruder

4. Capacity: 150kg/h, 240kg/h

5. Flow chart: Mixing system---Extrusion system----Core filling and shaping system---Drying system----Flavoring system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

7. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

8. Technical Parameters:

Model-Installed power-Real power-Output-Dimension

DXY-65-81.5kw-53kw-100-150kg/h-21000x1200x2200mm

DXY-70-115kw-76kw-200-250kg/h-23000x1500x2200mm

DXY-85-181kw-117kw-350-500kg/h-23000x1500x2200mm
