SZSW2180 LED Explosion Proof Rod Light

Application

SZSW2300 is safe to use in Zone 1&2 as well as Zone 21&21.

It is suitable for flammable gas, steam and dust environment, such as petrochemical plants, chemical plants, pharmaceutical plants and etc.

Features

ü This tube light uses high-quality Osram LED chips and the floodlight cover is made of imported PC material to ensures the light distance of up to 1 km;

ü The light is powered by rechargeable battery with lifespan of more than 100,000 hours, can be charged over 1000 times, each charge only takes 4-6 hours;

ü This lamp has a built-in magnet, it can be fixed in any place with metal, it is very convenient for maintenance or repair work;

ü There are two fluorescent silica gel strips on the lamp. In dark places, it will fluoresce and help people find it quickly.

ü The protection grade of this version light is IP54, that means it’s dust protected and protection against splashing of water, IP65 can be customization.

ü Lightweight and portable: special structure design, small size, light weight, easy carry with the shoulder strap;

Technical Data

Ex-mark: Exib IIC T3 Gb

Light source:LED

Rated power:4W

Rated voltage:3.7V

Battery capacity:2Ah

Average lifespan:100,000h

Flashlight working time: strong light≥5h, work light≥10h

Floodlight working time: strong light≥5h, work light≥10h

Warning light working time: ≥20h

Warning light frequency：1.5Hz

Charging time:4~6h

Battery lifespan: 1000 cycles

Protection grade: IP54 ( IP65 can be customization)

Dimension::Φ32×230mm

Weight:205g

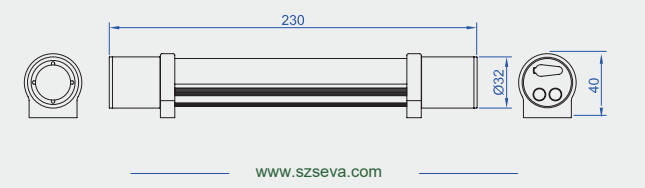

Size
