CBPR-ML Series Roughness Contour Profile Measuring Instrument Machine Supplier Manufacturer

WALE Company Introduction

SHAANXI WALE M&E TECHNOLOGY CO., LTD, established in 2003, focus on roughness, contour, roundness and cylindricity measuring solution research and development.

With professional engineer team, WALE have dozens of patented technology for product and measuring software copyright.

We have full self-own technology in precision air floating bearing spindle research and mass production capacity,

detector design, measuring data collection and analysis software system, abundant stylus, probe, stylus arm, table fixture systems, instrument design and customized services.

With rich experience in client service cases, WALE provides precision measuring solution for various

industry field manufacturing, supporting client production, technology development and various type measuring request.

Right now WALE is the TOP 1 market occupancy in China, also have deep cooperation in foreign market.

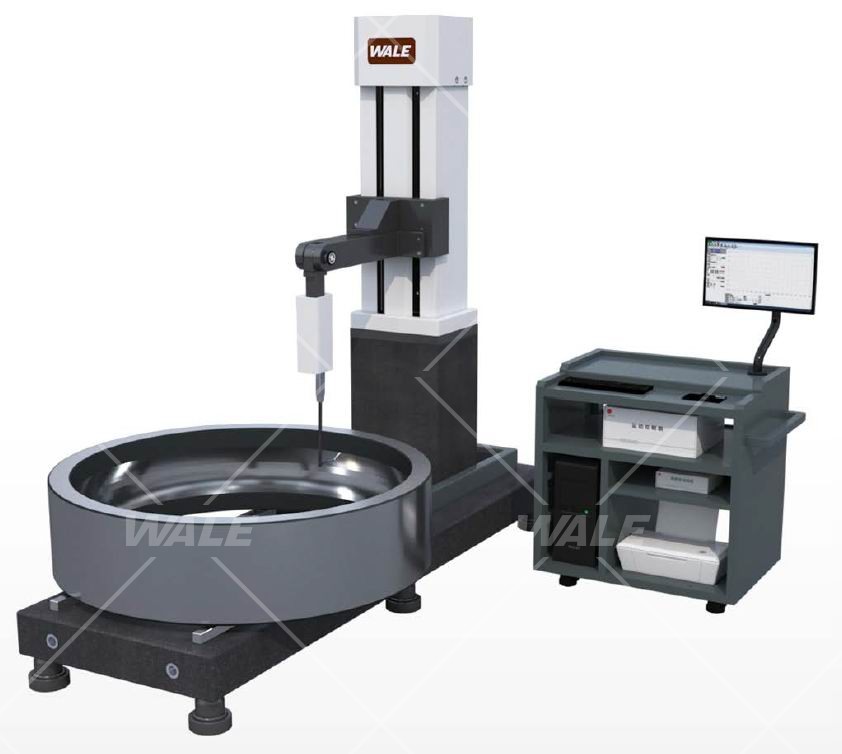

CBPR-ML Series Oversize Bearing Roughness and Contour Measuring Instrument Features

* Max. measuring diameter 1200mm.

* Max. load-bearing 600kg.

* Adopt with floor-standing structure design, provide safety protection for the operator and instrument.

* With low center of gravity structure, convenient for place and removal of heavy weight bearing outer ring.

* With special fixture design, the parts can be measured after placed, no need adjustment.

* Control box convenient for all motion operation.

CBPR-ML Series Brief Technical Specification

* Measuring diameter range: 300-1200mm

* Contour detector range: 0~40mm

* Roughness detector range: ±620μm

* Contour linear accuracy: ≤±(1.5+| 0.15H|)μm

   (H: measuring height)

* Roughness linear accuracy: ≤±(7nm+3.5%)
