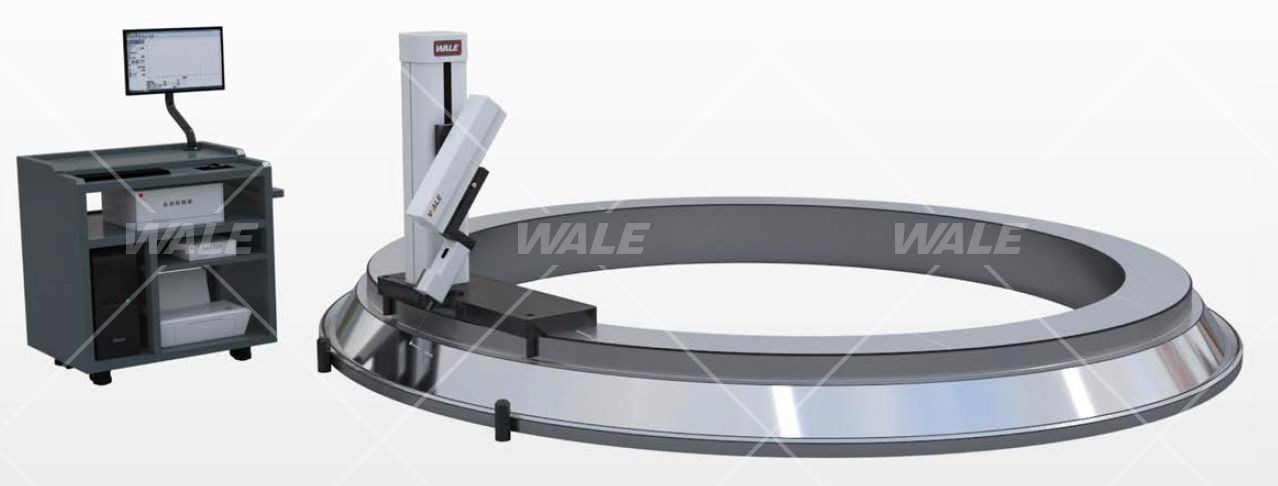

CBPR5600X Bearing Slewing Support Conical Surface Roughness Convexity Measuring Instrument Machine

WALE Company Introduction

SHAANXI WALE M&E TECHNOLOGY CO., LTD, established in 2003, focus on roughness, contour, roundness and cylindricity measuring solution research and development.

With professional engineer team, WALE have dozens of patented technology for product and measuring software copyright.

We have full self-own technology in precision air floating bearing spindle research and mass production capacity,

detector design, measuring data collection and analysis software system, abundant stylus, probe, stylus arm, table fixture systems, instrument design and customized services.

With rich experience in client service cases, WALE provides precision measuring solution for various

industry field manufacturing, supporting client production, technology development and various type measuring request.

Right now WALE is the TOP 1 market occupancy in China, also have deep cooperation in foreign market.

CBPR5600X Bearing Slewing Support Conical Surface Roughness and Convexity Measuring Instrument Features

* With mobile operation structure, suitable for oversize parts contour measurement.

* With improved structure design, have stronger anti-collision ability performance.

* Take the ceramic material guide rail as the measurement datum,

   and the measurement accuracy can be maintained even the temperature have big change.

* Wide measuring range design, convenient for adjustment.

*

The roughness and contour measurement can be operated at the same time.

CBPR5600X Series Brief Technical Specification

* Contour linear accuracy: ±(1.5+| 0.15H|)μm

* Roughness linear accuracy: ≤±(7nm+3.5%)

* Residual Noise: ≤0.012μm

* Repeatability: 1σ≤2nm

WALE Clients
