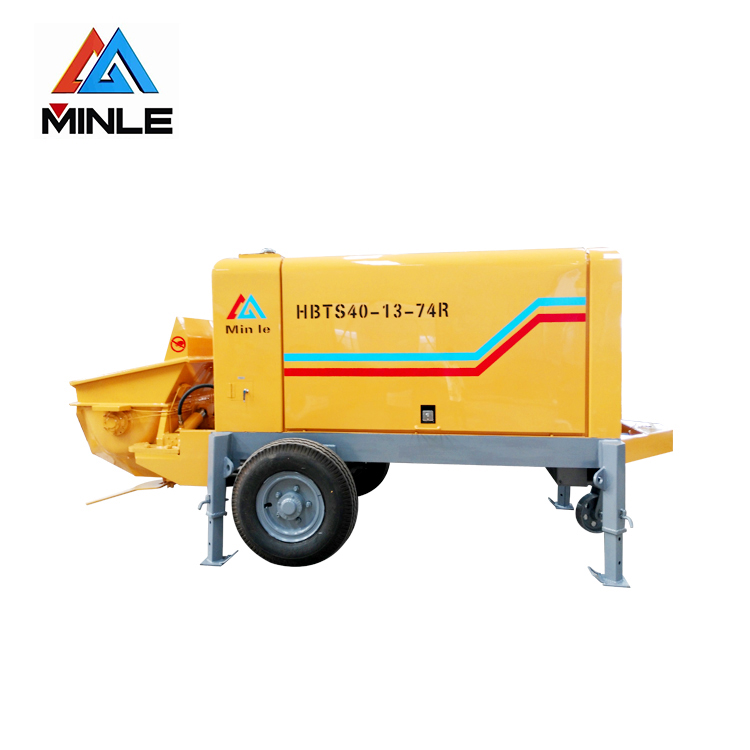

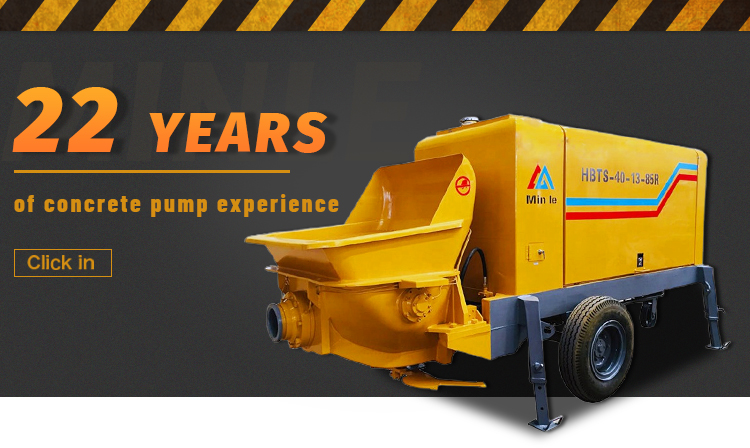

High Working Efficiency HBTS40 Small Diesel Trailer Mounted Concrete Pump
CONTACT: SARA MOBILE/WECHAT/WHATSAPP:86-15866001919
Product Description
trailer mounted concrete pump is the widely used construction equipment to transfer liquid concrete by pumping method. As the leading concrete pump designer, manufacturer and exporter, Taian Minle Machine Manufacture Co., Ltd had been dedicated in supplying one stop concrete pump machine solution to worldwide customers since its foundation in 1999. We have our own 21,000 square meters professional factory covering casting, welding, parts machining, hydraulic parts processing, heat treatment, spray painting and machine assembly and testing, etc. Our more than 150 professional skilled employees are our real wealthy and competence. Our products had been exported to over 36 countries. Hope to be your partner.
1.Power system of trailer mounted concrete pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Cummins, Dachai Deutz, Volvo, Perkins are adjusted.
2.Electronic control system of trailer mounted concrete pump
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
The control mode: manual operation and wireless remote control
Humanity and intelligent electronic control system optimizes the person-machine interface
.8-digital pumping time accumulation timer provides exact data for the user,
Automatic anti-pump function and optimized program design.
Automatic trouble monitoring function.diesel concrete pump
3.Hydraulic system of trailer mounted concrete pump
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller
exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump
and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints
and high pressure hoses are of the famous brands. A number of high pressure accumulators
and their excellent cushion performance reduce the requirement of S pipe vale for the concrete.
The concrete is delivered freely.d
40 cubic meter per hour diesel trailer mounted concrete pump specification
Item concrete pumps | HBTS40—13—74R |
Max Theoretical Concrete Output (m3/h) | 40 |
Max Concrete outlet Pressure (Mpa) | 13 |
Concrete slump (mm) | 120—230 |
Aggregate Size (mm) | gravel≤40 |
Power (KW) | Diesel motor 74 |
Speed (r/min) | 2300 |
Conveying Cylinder Diameter (mm) | ? 100/1000 |
Concrete Cylinder Diameter (mm) | ? 180/1000 |
Fuel Tank Capacity (L) | 250 |
Hopper Capacity (m3) | 0.35 |
Filling Height (mm) | 1250 |
Maximum Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m) | 150/700 |
Pipe Cleaning Mode | Washing |
Overall Dimension (mm) | 5000×2100×2200 |
Total Weight (kg) | 4500 |
More pics
Product details
Production process
Company

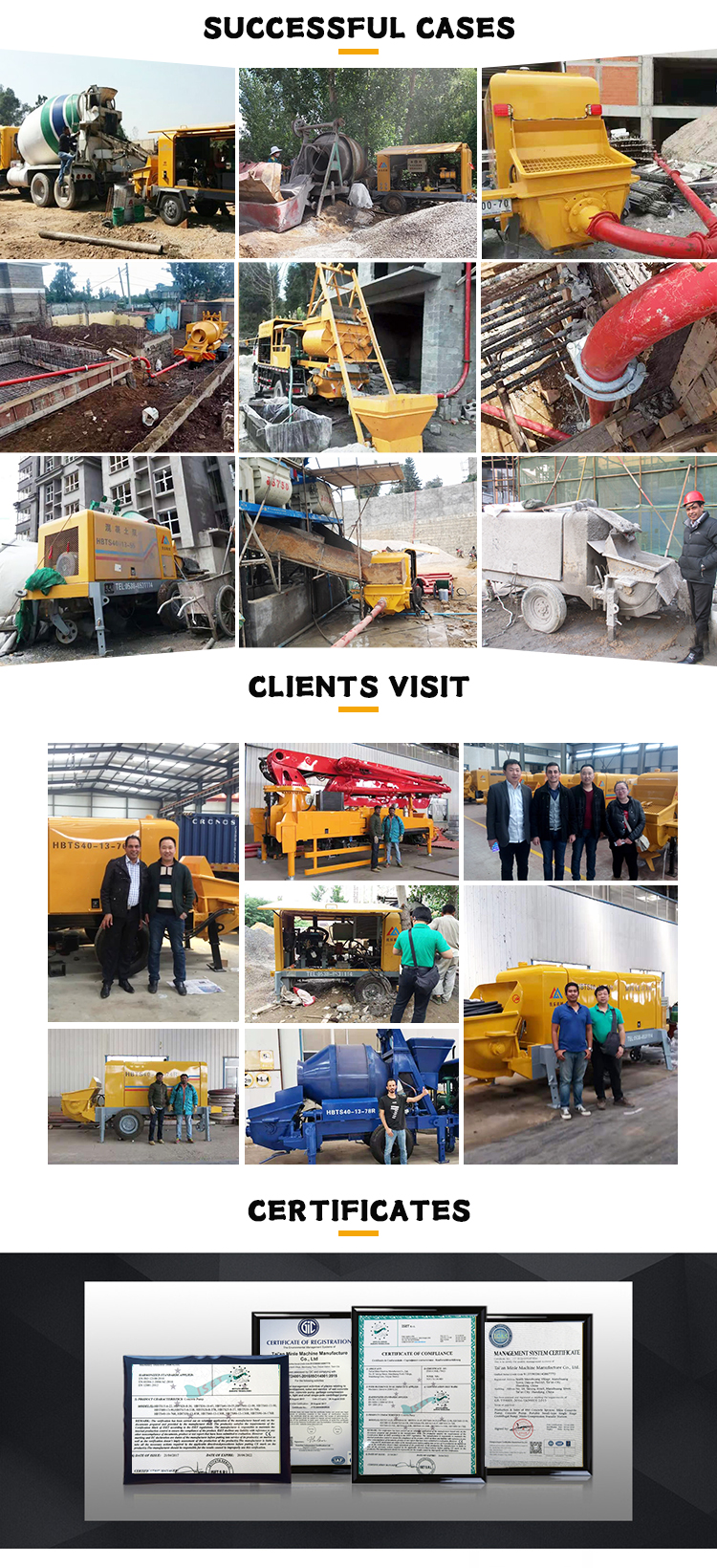

cases

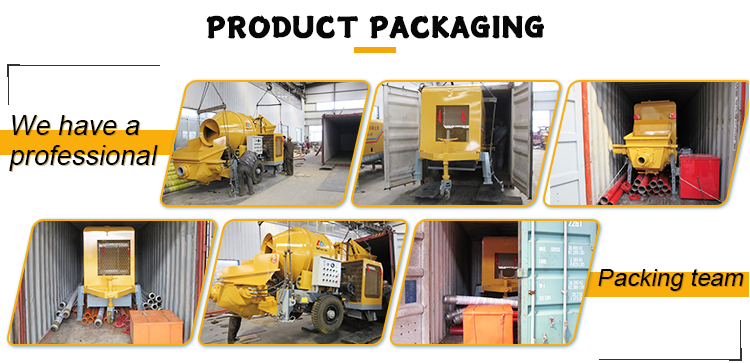

Loading
why choose us
diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump diesel concret
Customer visit and the case aboard
FAQ
Are you manufacturer or trading company?
Yes, we are professional manufacturer of concrete pumps.
What is your payment term?
We can receive T/T, L/C, Western Union and trade assurance.
What is your main product?
Trailer Concrete pump/Concrete mixer pump/ Concrete mixer pump Truck /Truck mounted line pump /Concrete Boom Tuck/Wet shotcrete machine and other construction machines
What is the delivery time?
Most of the order will within 15 days, sometimes depend on your quantity and our present products plan.
How about your Warranty and after sale service?
Normally is about 12 months after leaving factory, but that can be negotiated based on our cooperation.
OEM or ODM is available?
Yes, we can produce with your logo and requirements.
Contact us for more details!
Sara Mao
TAIAN MINLE MACHINE MANUFACTURE CO., LTD
Mobile/wechat/whatsapp:86-15866001919
Website: https://www.concretepumpmachine.com
Welcome to inquiry /visit us.
