trailer mounted concrete pumpmobile concrete trailer pump trailer concrete pump machine
L/CT/TWestern UnionPaypalOthers

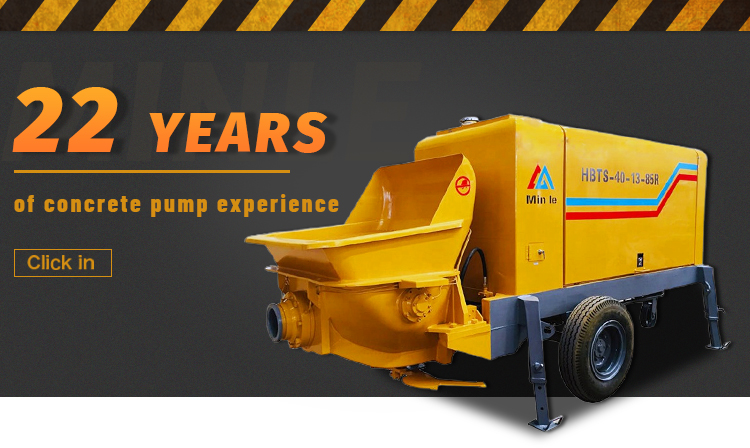

40m3/h mobile trailer mounted price concrete pump machine with good quality
Item | HBTS40-10-78R |
Max Theoretical Concrete Output (Low/High pressure) (m3/h) | 40 |
Max Concrete outlet Pressure (Low/High pressure) (Mpa) | 10 |
Concrete slump (mm) | 120-230 |
Aggregate Size (mm) | 30 |
Powder (KW) | Diesel motor 78 |
Speed (r/min) | 2400 |
Conveying Cylinder Diameter (mm) | ? 125/1000 |
Concrete Cylinder Diameter (mm) | ? 160/1000 |
High-Low Pressure Switch | yes |
Oil Tank Capacity (L) | 400 |
Hopper Capacity (m3) | 0.4 |
Fuel Tank Capacity (L) | 200 |
Filling Height (mm) | 1100 |
Max Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m) | 150/500 |
Pipe Cleaning Mode | Washing |
Overall Dimension (mm) | 4000×1700×2260 |
Total Weight (kg) | 3000 |

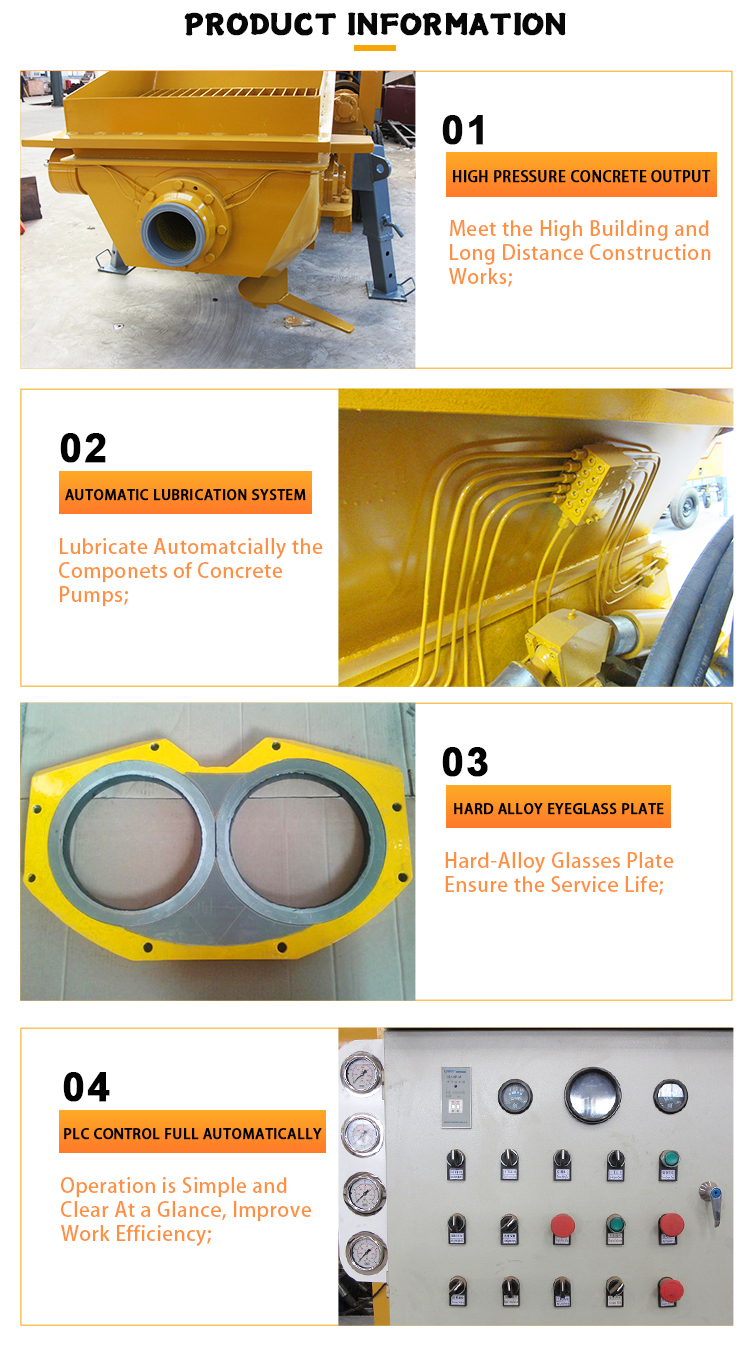

Concrete pump trailer, also called trailer mounted concrete pump or concrete trailer pump, is the kind of concrete pump mounted on the moveable trailer to to convey concrete to hard to access flexibly. MINLE brand new generation concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency. Our concrete pump trailer main components such as wear plate, piston, cylinder, discharge port and hopper are made with wear resistant high chrome alloy materials, strict welding and heat treatment processes. our concrete trailer pump is equipped with advanced hydraulic system which can be powered by diesel engine or electric motor for your selection. It features energy saving, large flow, wider adaptability, high efficiency, good wear resistance and easy to operate, it is widely used for concrete pumping in housing building, elevated road, bridge or tunnel construction projects.
Please note:

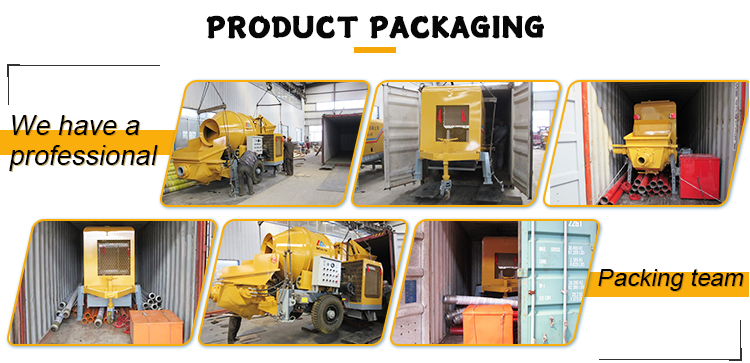

Concrete trailer pumps: 1*20'GP can load one set with 100m pipe.
Concrete mixer pumps: 1*40'HQ can load two sets with 200m pipe.
