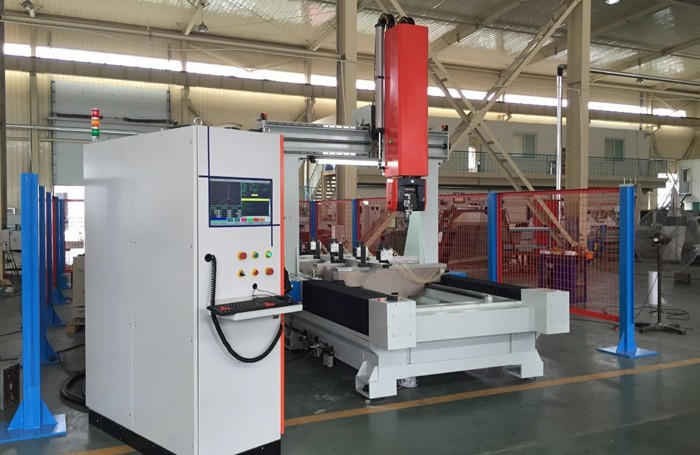

5 Axis Machining Center
1. Feature
1.1 This machine is specially for cutting, hole drilling, groove milling processing on all kinds of aluminum profile, plastic steel.
1.2 It is widely used on process of mold, casting, ceramic sanitary, ship, aerospace chemical industry, rail transportation, photovoltaic, aluminum doors and windows, high speed rail motor car track aluminum alloy, top grade hotel restaurant revolve door, etc

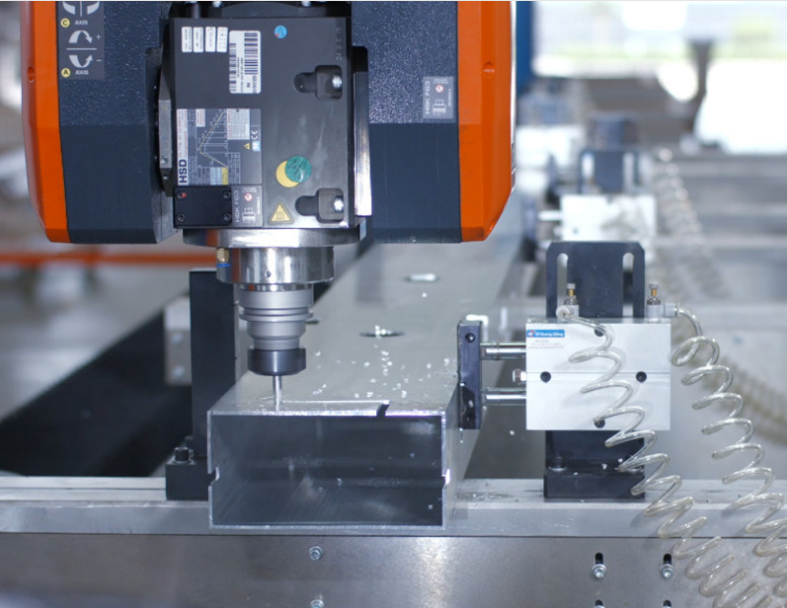

1.3 Adopt Taiwan Syntec five-axis cnc control system, with Italy HSD imported high power five-axis head, easily implement stereoscopic five-side processing one time.
1.4 Machine transmission adopt Japan Yaskawa servo motors and Japan SHIMPO high performance reducer. Taiwan ball screw, fast speed, low noise , high precision , long use life etc advantages.
1.5 Diversification control, can control the processing speed, blank space speed, the cutting speed, improve the quality and efficiency of processed products.
1.6 Unique saw blade cutting function, can realized high precision cutting in different orientation and degrees.
1.7 Self-developed system software, easy to operate and can meet different requirements of processing.
2.Specification
Brand | MINGMEI MACHINE |
Model | JGZX5-CNC-3000 |
Power supply | 380v 50Hz |
Air pressure | 0.5~0.8MPa |
Main Spindle | HSD Model HS655 |
Output power of spindle | 15KW |
Max rotary speed | 24000R/min |
Saw blade rotary speed | 4000rpm |
Max. Diameter of the saw blade | 300mm |
Profile Processing range | X: 1000mm Y:6000mm |
Z-axis journey | 500mm C ±240° A ±120° |
X-axis Speed | 20000mm/min |
Y-axis Speed | 30000mm/min |
Z-axis Speed | 15000mm/min |
Re-positioning accuracy | ±0.05mm |
Servo system | YASKAVA servo system |
Inverter | Delta inverter |
Tool magazine | Carousel tool magazine (8 positions) |
Tool holder specifications | HSK.F63.ER40 |
Control system | Taiwan Syntec 200MA, G code |
Overall dimension | 8500x2500x3000mm |
Total weight | 6000kg |
