SKX3+1-CNC-3000 CNC Drilling Milling Machine

ID:21101363610

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 15200.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

CNC Drilling Milling MachineCNC Drilling MachineCNC Milling MachineSKX3+1-CNC-3000Aluminum milling machinealuminum drilling machinealuminum processing machinecnc machinealuminum processing centeraluminum profile machine

Payment Method:

L/CT/TD/PWestern UnionPaypalMoney GramOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

Mingmei

Product Package

Plywood case

Specification

Place of Origin

China

Port

Qingdao

1. Features

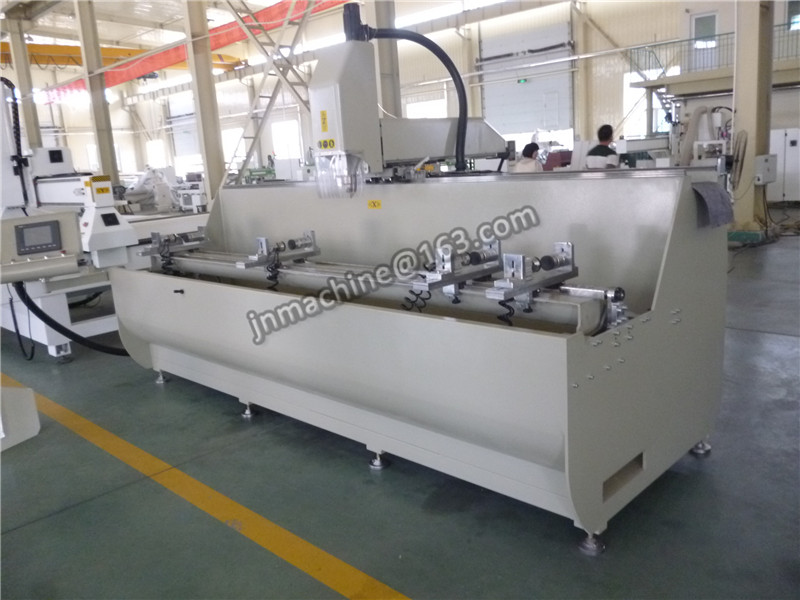

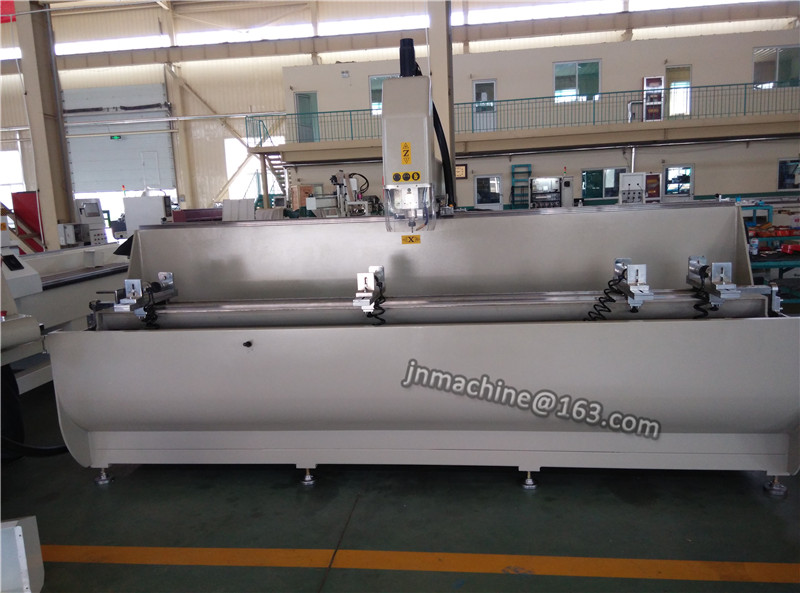

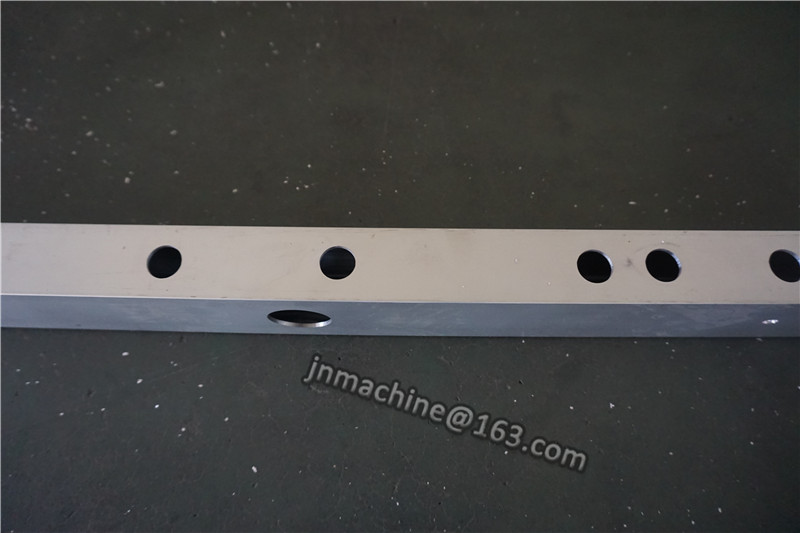

1.1 This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window-door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.

1.2 Main spindle adopt air-cooling electric main axis, 3KW power, 0~18000/min , have the function of high precision, high safety and high reliable.

1.3 Adopt Taiwan SYNTEC CNC control system. Have professional CAD-CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.

1.4 Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.

1.5 The worktable can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.

1.6 Adopt manual pump oil supply system, blades adopt system control spray cooling device.

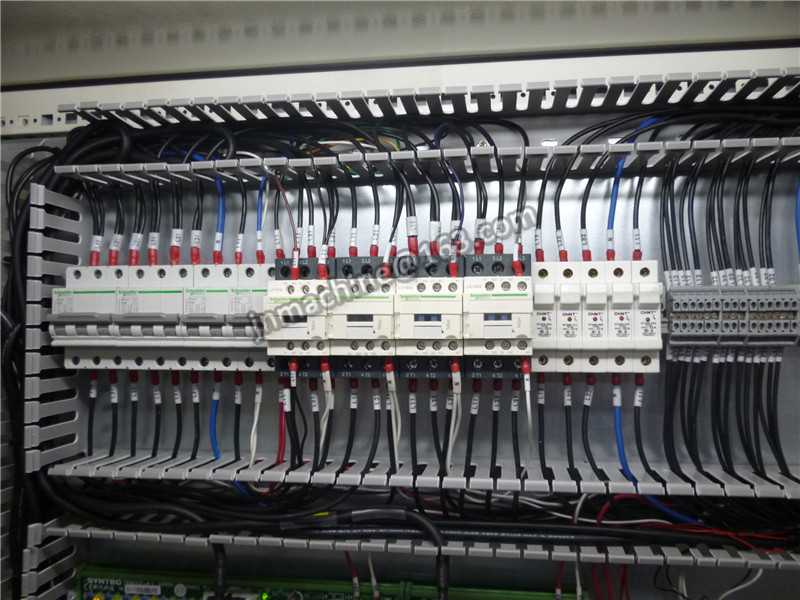

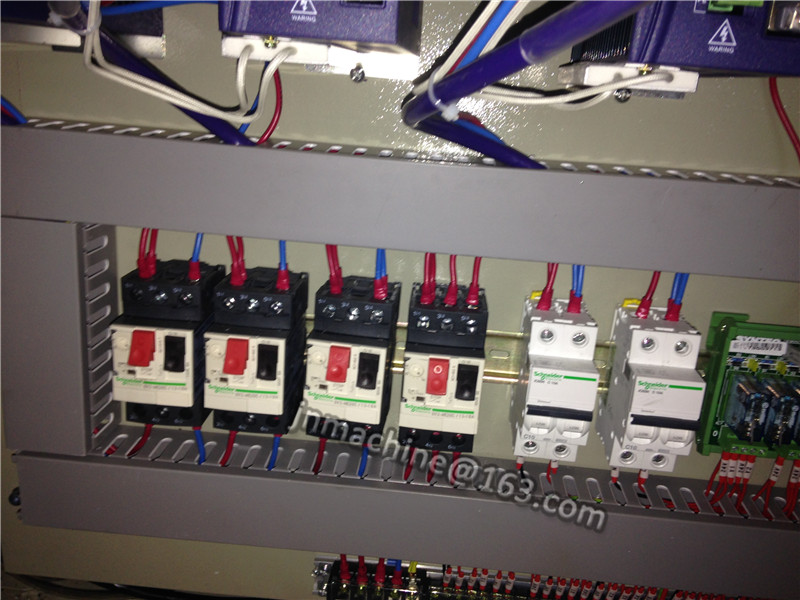

1.7 The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.

1.8 The main components adopt steel structure and they are all through aging treatment.

2. Specifications

2.1	Power supply	50Hz 380V or As Customer Specification
2.2	Cutting motor power	6kw
2.3	Operation air pressure	0.5~0.8MPa
2.4	Max Motor rotary speed	18000r/min
2.5	X axis journey	3000mm
2.6	Y axis journey	500mm
2.7	Z axis journey	350mm
2.8	X axis speed	50000mm/min
2.9	Overall dimension	418016002200
2.10	Weight	1400kg

3. Main accessory

Control system	Taiwan Syntec
Solenoid valve	Airtec
Driver and Motor	YASKAWA
Spindle	Italy HSD/OIL
Air Filter Device	Airtac
Electrical Components	Schneider
Pneumatic Components	Airtac
Bearing	Hiwin
Guideways	Taiwan Hiwin
Gear Reducers	Japan Shimpo
