PET Polyester Geogrid

ID:21101363686

Category: Construction & Decoration Building Structural Material

FOB Price:US$ 0.600 / Square Meter(s)

MOQ:5000.00 Square Meter(s)

Product Keywords:

PET GeogridPolyester geogridgeogridGeogridsbiaxial geogriduniaxial geogridgeogrid for roadgeogrid for slopePET Uniaxial GeogridPET Biaxial Geogrid

Payment Method:

L/CT/TWestern UnionPaypalMoney Gram

Product Category

Construction & Decoration > Building Structural Material

Trademark

Product Package

Specification

Place of Origin

Port

Qingdao

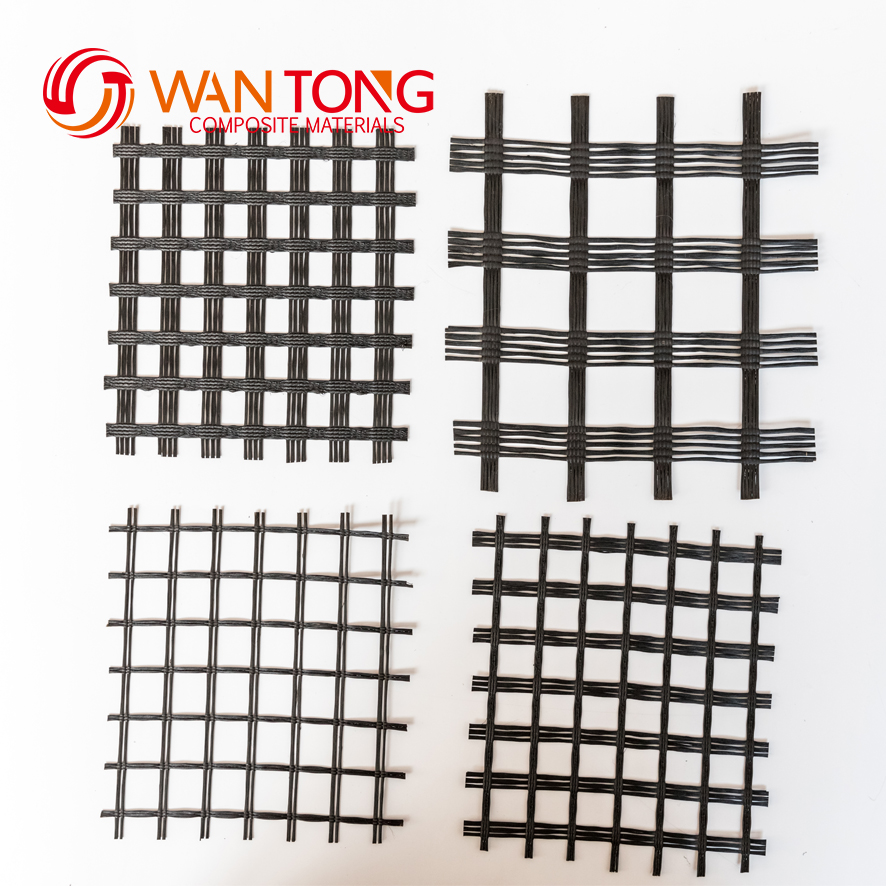

PET Geogrid

PET Geogrid is woven by polyester yarn as per desired mesh sizes coating water soluble or oil soluble PVC and strength from 15 kN/m to 1200 kN/m(Biaxial type),35-30KN/m to 1000-50KN/M(Uniaxial type)

Bi-axial Uni-axial Geogrids are produced with high molecular weight, high tenacity, polyester yarns using a precision knitting process. These geogrids are dimensionally stable and through a uniform network of ribs and apertures provide tensile reinforcement to the surrounding soil to provide the long-term design strength (LTDS) required for each specific application.

Bi-axial Uni-axial Geogrids are woven and then coated with a polymer or PVC coating to provide dimensional stability and offer resistance to installation damage. They are also chemically stable and appropriate for using in aggressive soil environments which pH levels from 3.0 to 12.0. Their primary characteristic is excellent creep performance with low strain and high tensile strength under constant load.

Performance
	High tensile strength
	Low creep deformation
Benefits
	Improving bearing capacity of foundation
	Improving bearing capacity of retaining wall or dam
	Extending the project life
	Shortening construction period, reducing cost and maintaining expense

Specification:

Polyester Biaxial Geogrid Specification
Performance /Specification		PET 20-20	PET 30-30	PET 40-40	PET 50-50	PET 80-80	PET 100-100	PET 120-120
Elongation (%)		3%
Tensile Strength	warp	20	30	40	50	80	100	120
(KN/m)	waft	20	30	40	50	80	100	120
Mes size(mm)		12.7X12.7, 25.4X25.4, 40X40
Roll Width(m)		1-6
Roll Length(m)		50-200

Polyester Uniaxial Geogrid Specification
Performance /Specification		PET 40-25	PET 50-35	PET 60-30	PET 80-30	PET100-30	PET 120-30
Tensile Strength	warp	25	50	30	30	30	30
(KN/m)	waft	40	35	60	80	100	120
Performance /Specification		PET 150-30	PET 180-30	PET 200-30	PET 300-30	PET 400-30	PET 500-30
Elongation (%)		3%
Tensile Strength	warp	30	30	30	30	30	30
(KN/m)	waft	150	180	200	300	400	500
Mes size(mm)		12.7X12.7, 25.4X25.4, 40X40
Roll Width(m)		1-6
Roll Length(m)		50-200
