ID:21101463811
Category: Construction & Decoration Elevators,Ladders & Framework
MOQ:20.00 Ton(s)

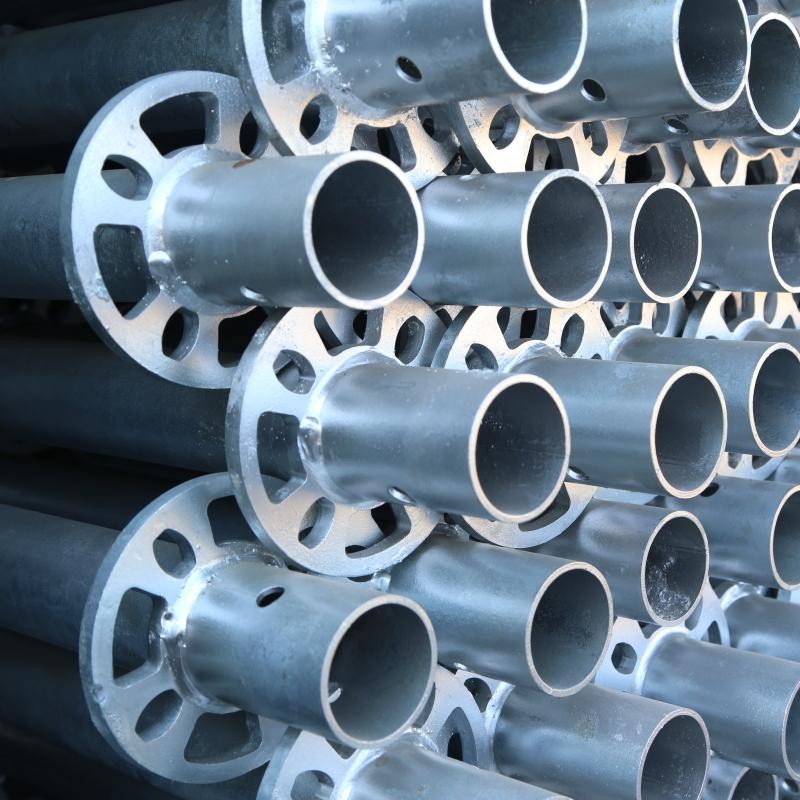

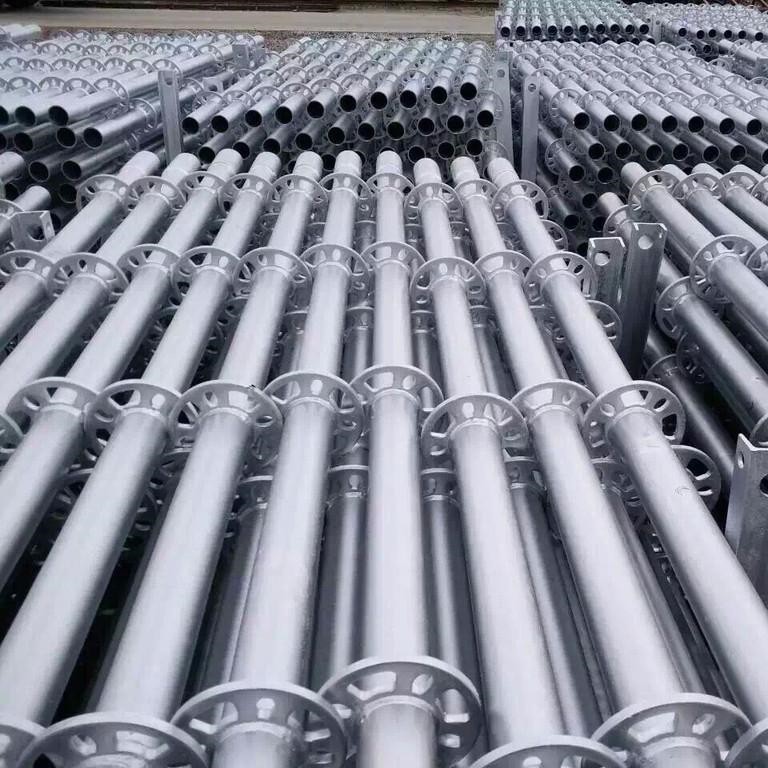

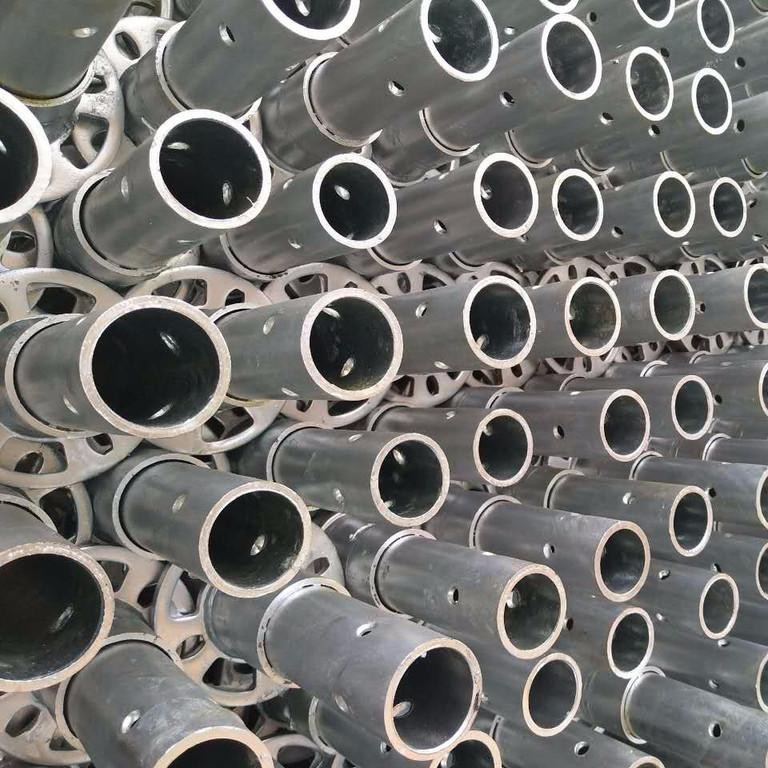

vertical standsring lock scaffolding system Construction Layher
L/CT/TD/P
| The vertical standard bears the loads from thhe scaffold down to the earth, providing vertical suppoer for the scaffolding systerm, with rosettes at per 50cm interval, a spigot on the top and drilled holes at both ends | ||||||||
| ? Φ48 LIGHT TYPE VERTICAL STANDARD | ||||||||
| NO. | Descriptions | Model | Specifications (mm) | Weight(Kgs/Pcs) | Surface | Material model | PCS/PKG | PALLET WEIGHT (Kgs) |
| 1 | Vertical standard with spigot | PKJ-B-LG-35 | Φ48*3.2*350 | 2.46 | Hot Dip Galvanized | Q355B | 322 | 40 |
| 2 | PKJ-B-LG-50 | Φ48*3.2*500 | 3.42 | Hot Dip Galvanized | Q355B | 322 | 40 | |
| 3 | PKJ-B-LG-100 | Φ48*3.2*1000 | 5.85 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| 4 | PKJ-B-LG-150 | Φ48*3.2*1500 | 8.25 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| 5 | PKJ-B-LG-200 | Φ48*3.2*2000 | 10.46 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| 6 | PKJ-B-LG-250 | Φ48*3.2*2500 | 13.14 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| 7 | PKJ-B-LG-300 | Φ48*3.2*3000 | 15.22 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| ? Φ60 HEAVY TYPE VERTICAL STANDARD | ||||||||
| NO. | Descriptions | Model | Specifications (mm) | Weight(Kgs/Pcs) | Surface | Material model | PCS/PKG | PALLET WEIGHT (Kgs) |
| 1 | Vertical standard with spigot | PKJ-Z-LG-35 | Φ60*3.2*350 | 2.69 | Hot Dip Galvanized | Q355B | 322 | 40 |
| 2 | PKJ-Z-LG-50 | Φ60*3.2*500 | 3.75 | Hot Dip Galvanized | Q355B | 322 | 40 | |
| 3 | PKJ-Z-LG-100 | Φ60*3.2*1000 | 6.65 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| 4 | PKJ-Z-LG-150 | Φ60*3.2*1500 | 9.6 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| 5 | PKJ-Z-LG-200 | Φ60*3.2*2000 | 12.5 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| 6 | PKJ-Z-LG-250 | Φ60*3.2*2500 | 15.5 | Hot Dip Galvanized | Q355B | 161 | 40 | |
| 7 | PKJ-Z-LG-300 | Φ60*3.2*3000 | 18.4 | Hot Dip Galvanized | Q355B | 161 | 40 | |
Shandong Shifeng New Energy-saving and Environmental Protection Building Materials Co., Ltd. covers an area of 200 acres, with office buildings, production workshops, ash warehouses, stacking areas, substations, etc., and has more than 1,000 sets of high-precision equipment, including socket type Disc buckle scaffolding, new building materials research and development, design, production and marketing are integrated. Adopting domestic advanced technology, constructing advanced socket type disc buckle scaffolding production line, self-insulating block production line and self-insulating external formwork production line. The production scale is 200,000 tons disc buckle scaffolding, 300,000 cubic meters of self-insulating block and 20 Ten thousand cubic meters of self-insulating external formwork. The management office, office, production department, research institute, marketing department, energy material management department and other related departments have been established, and a sound management mechanism has been established. Relying on the national-level enterprise technology center, post-doctoral research workstation, and academician workstation established by the parent company, R&D institutions such as product research institutes have been set up to build a strong product design and research platform.
