HDPE geomembranePond linerLLDPE Geomembrane
L/CT/TD/PWestern UnionPaypalMoney GramOthers

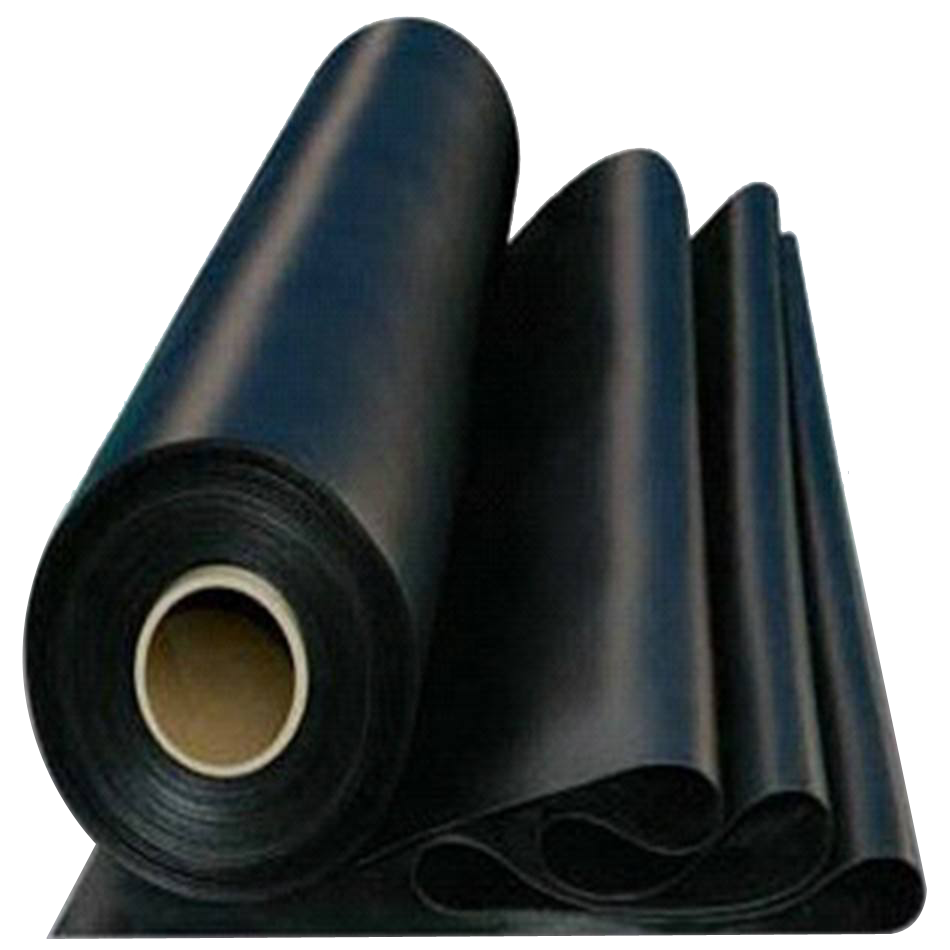

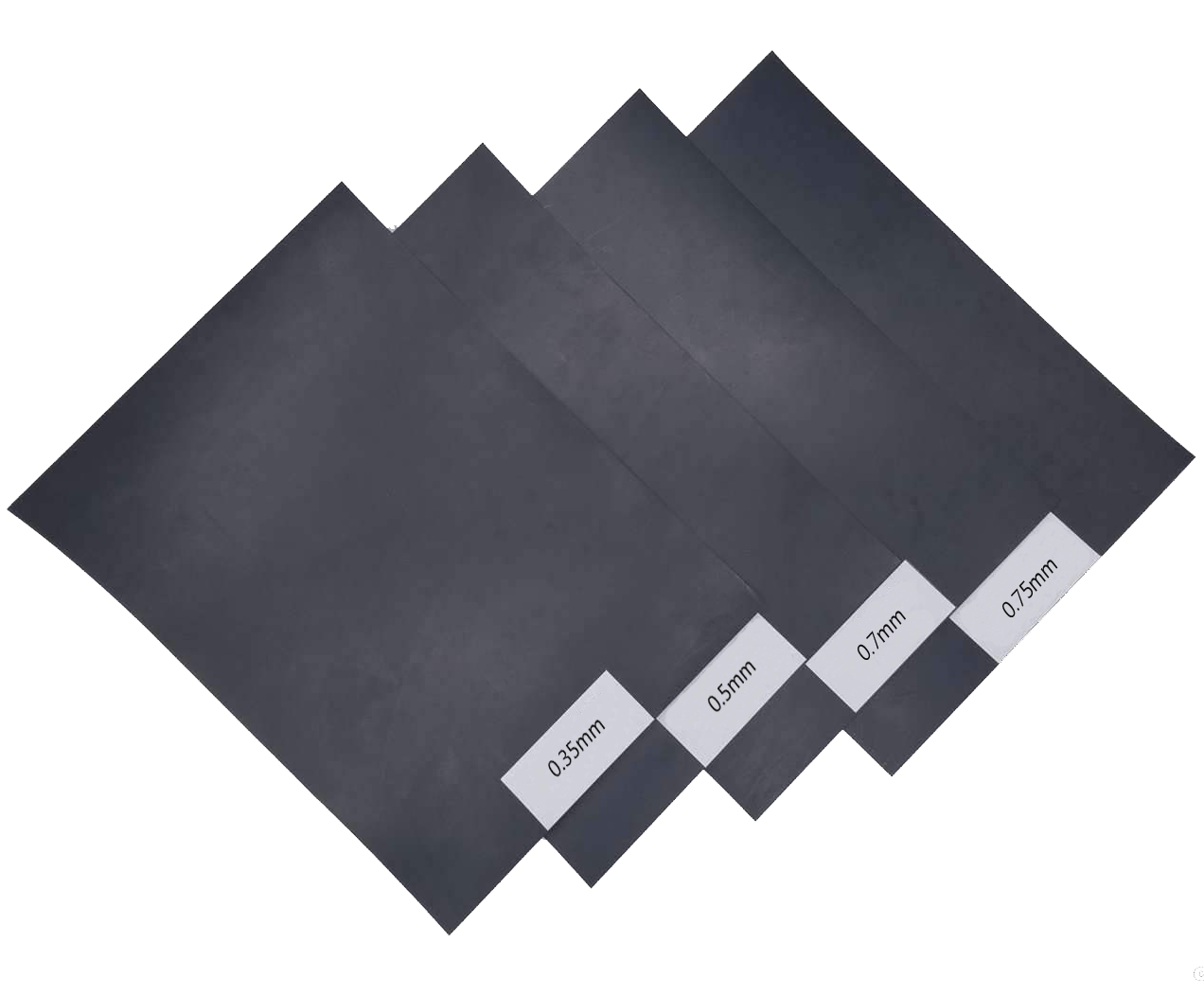

 | HDPE Geomembrane
HDPE Geomembrane is made from High Density Polyethylene raw material, adding color masterbatch, antioxidant, anti aging and UV resistance component,anti aging agent, antioxidant, ultraviolet absorbent, stabilizer s accessories, etc. What' s more, its anti seepage and isolation performance are strong. Suitable for pools, canals, embankments, landfill, tunnel and many other places.It adopted the first class automatic production equipment and blowing technology. All products are in accordance with GRI GM13 and ASTM Standard. |
Features 1) Good physical and mechanic performance | |
| Index | Test | |||||||||||
| DS0.20 (mm) | DS0.25 (mm) | DS0.30 (mm) | DS0.40 (mm) | DS0.50 (mm) | DS0.75 (mm) | DS1.00 (mm) | DS1.25 (mm) | DS1.50 (mm) | DS2.00 (mm) | DS2.50 (mm) | DS3.00 (mm) | |
| Minimum density g/cm3 | 0.94 | |||||||||||
| Yield strength N/mm | 4 | 5 | 6 | 8 | 10 | 15 | 18 | 20 | 22 | 29 | 37 | 44 |
| Breaking Strength N/mm | 6 | 7 | 9 | 12 | 15 | 22 | 29 | 35 | 42 | 55 | 69 | 82 |
| Elongation at yield (%) | 12 | |||||||||||
| Elongation at breaking (%) | 700 | |||||||||||
| 93Tearing Strength, N | 25 | 30 | 38 | 50 | 62 | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| Puncture strength, N | 64 | 80 | 96 | 128 | 160 | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| Carbon black content % | 2.0~3.0 | |||||||||||
| -70℃ Low temperature impact | Pass | |||||||||||
| Standard OIT, min | 100 | |||||||||||
| High pressure OIT, min | 400 | |||||||||||
| Ultraviolet radiation 1600h,Standard OIT % | 50 | |||||||||||
| Ultraviolet radiation 1600h,High pressure OIT % | 50 | |||||||||||
| Water vapor penetration coefficient g?cm/(cm3?s?Pa) | ≤1.0×10-13 | |||||||||||
| Dimensional stability | ±2.0 | |||||||||||
1.Environmental Protection:
For example, landfills, sewage treatment plants, power plant regulating pools, industrial and hospital solid wastes, etc.
2. Water Conservancy:
For example, seepage prevention, plugging, reinforcement, canal seepage prevention, vertical core wall, slope protection, etc.
3. Aquaculture Industry:
Intensive, industrialized aquaculture ponds, fish ponds, shrimp ponds lining, sea cucumber circle protection, etc.
4. Gardens:
Chemical plant, refinery, storage tank seepage control, chemical reaction tank, sedimentation tank lining, two liner, etc.
6. Agriculture:
Seepage control of reservoirs, application pools, reservoirs, irrigation systems, etc.
7. Salt Industry:
Salt pond, salt film and salt pond plastic film
0.5mm: width 5.8m length100m per roll 66rolls 38280m2/ 20'Gp
0.75mm: width 5.8m length 50m per roll 80rolls 23200m2/ 20'Gp
1.00mm: width 5.8m length 50m per roll 66rolls 19140m2/ 20'Gp
1.50mm: width 5.8m length 50m per roll 40rolls 11600m2/ 20'Gp
2.00mm: width 5.8m length 50m per roll 30rolls 8700m2/ 20'Gp
Packed with black/white woven geotextile bags or PE film. Or according to buyer's requirements.
Shandong Bring Plenitude New Materials Co.,Ltd. is located in Tai’an city, China. Which is a large private enterprise specializing in the production and management of geotechnical and waterproof materials. Include geomembrane, steel and plastic/fiberglass/polyester geogrid, non woven geotextile, geocell, geomat, waterproofing sheet, GCL etc., They are widely used in water conservancy, tunneling, railway, highway, electric power, municipal, port and other large-scale projects. Our workshop quipped with a number of advanced production lines, the company and has obtained ISO9001, ISO14001 and other certifications, our products are not only popular in domestic engineering projects and bidding, but also exported to more than 30 countries and enjoyed a high popularity and reputation.
Shandong Bring Plenitude New Materials Co.,Ltd. is looking forward to cooperating with you and welcomes your visit.
The company has passed ISO9001 / ISO14001 / OHSAS18001 and CE certificate.
