Middle HP tractor /30-50hp tractors/2WD tracotrs/ 4WD tractors

ID:21101864296

Category: Agricultural Agricultural Machinery

FOB Price:US$ 5000.000 / Set(s)

MOQ:14.00 Set(s)

Product Keywords:

agricultural tractors middle HP tractors2WD tractors4WD tractors30-50HP tractors

Payment Method:

L/CT/TD/P

Product Category
Agricultural > Agricultural Machinery
Trademark
SHIFENG
Product Package
packed in iron frame
Specification
SF350/SF354/SF400/SF404/SF500/SF504
Place of Origin
LIAOCHENG
Port
QINGDAO

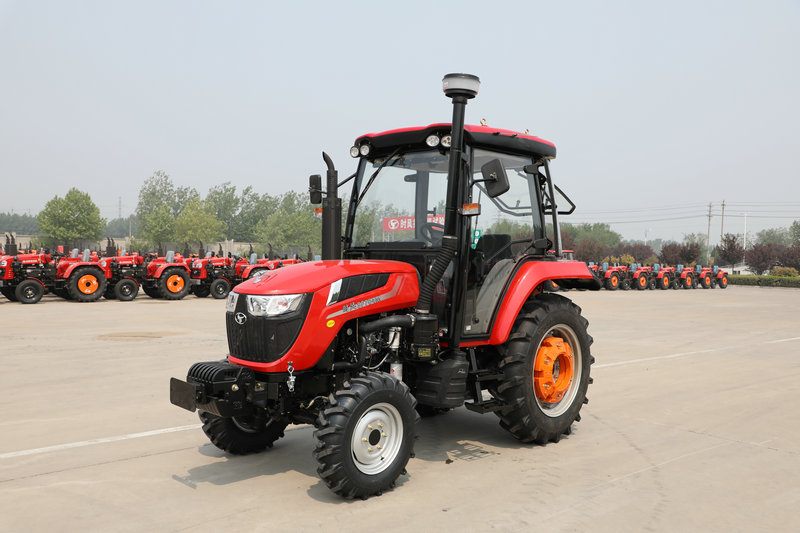

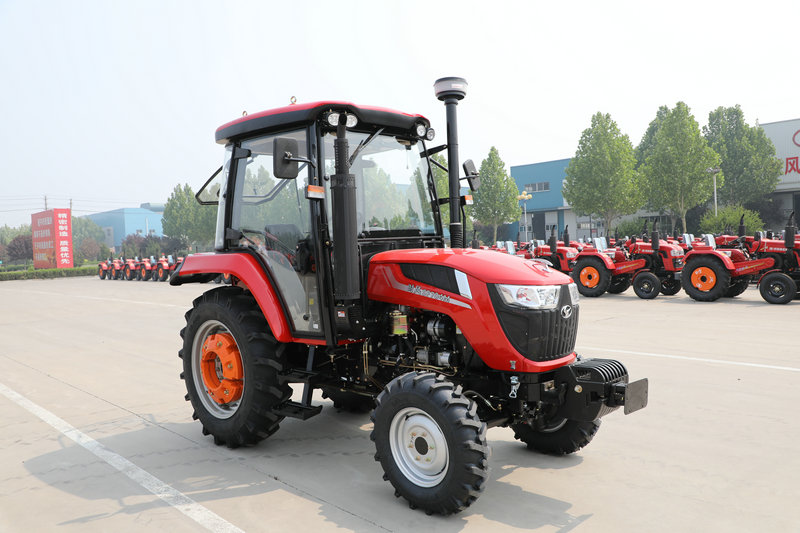

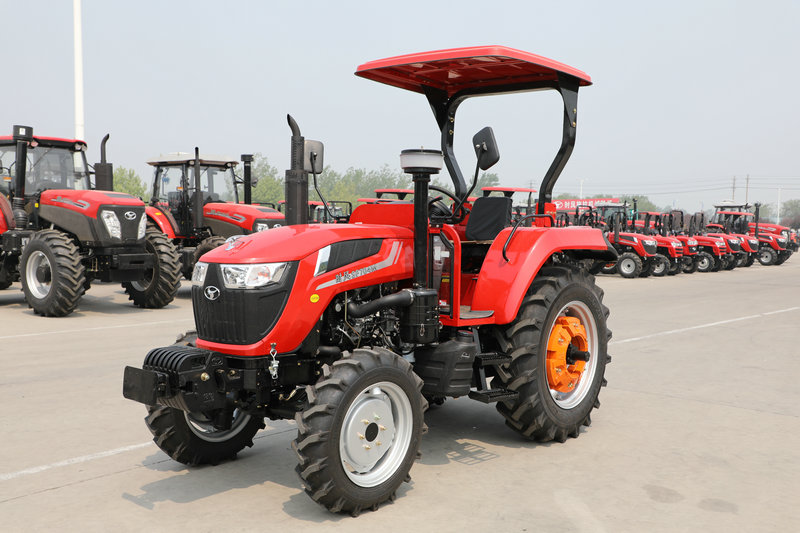

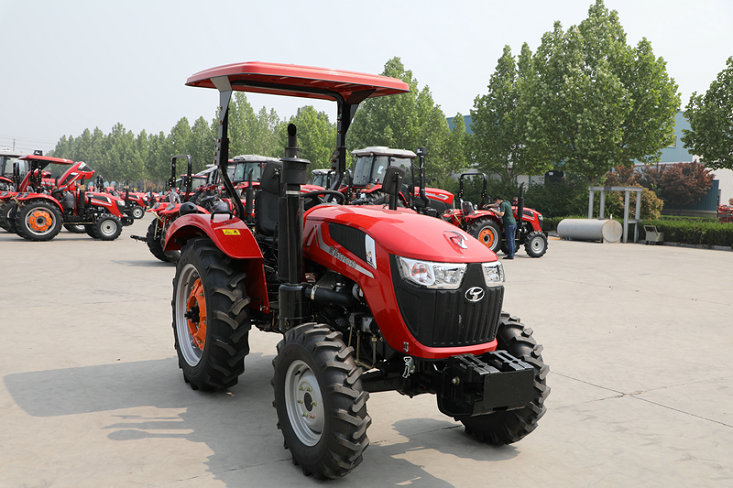

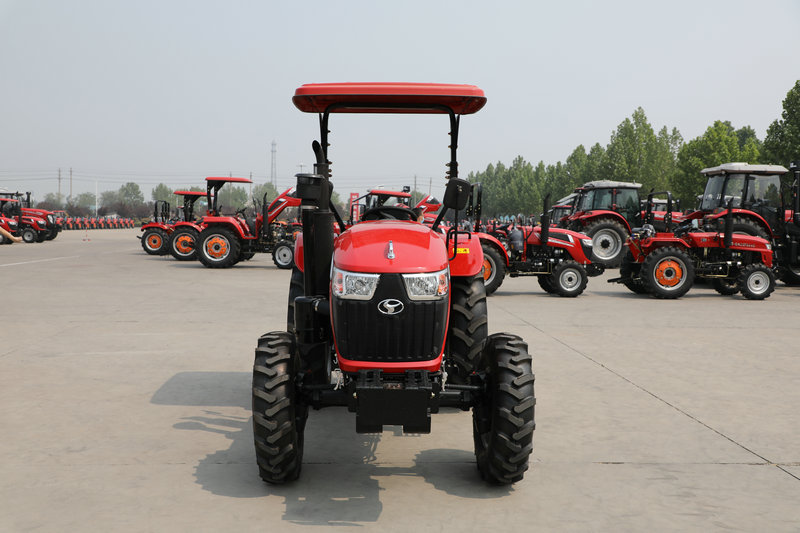

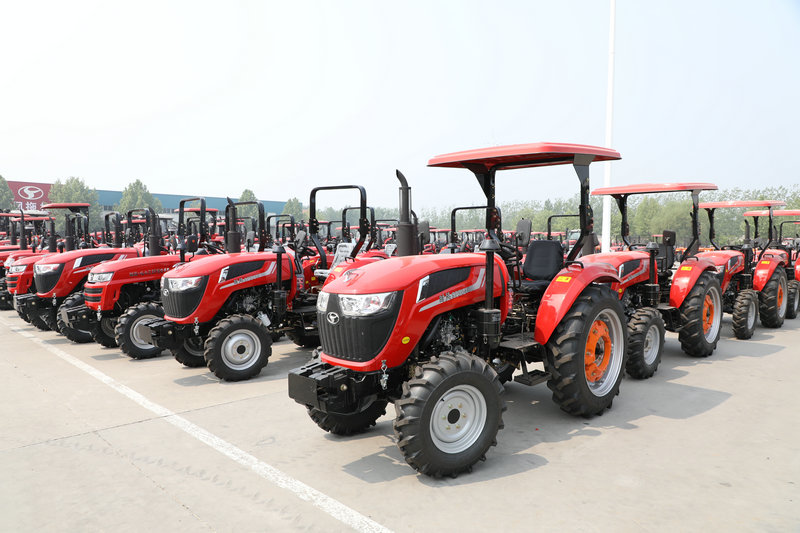

This series product is a middle  hp 4-wheel drive tractor directly connected with its engine specially used in mountain areas and muddy roads. It has the characteristics of high transmission efficiency, low tremble, high traction, high adaptability and easy start. Jaw type differential lock can improve the pass-ability. Hydraulic output interface can make direct connection with the dump trailer. This series tractor can have many different configurations according to customer’s demands: single stage clutch or two stage clutch, (3+1) ×2 six shifts or (4+1)×2 eight shifts where the creeping shift can be selected, one standard PTO rev., fixed or adjusted tread, back catalogue“1” suspensions, mechanical steering or hydraulic steering and so on.


MODEL

SF300

SF350

SF304

SF354

ENGINE MODEL

SL2105ABT1

YND485

SL2105ABT1

ZN485T-R18

RATED POWER(HP)

30

35

30

35

DIMENSION(mm)

3530×1490×2180

3530×1490×2180

3418*1490*2200

3315*1590*2100

TREAD (mm)

FRONT :1170/REAR :1200

WHEEL BASE(mm)

1805

1805

1706

1864

CLUTCH TYPE

DRY,SINGLE-ACTING

GEAR BOX

(4+1)X2

(4+1)X2

(4+1)X2

(4+1)X2

TYRE TYPE

FRONT :5.00-15/REAR11.20-24

FRONT :6.00-16/REARE:11.20-24

PTO SPEED(R/MIN)

540,760/1000

PTO SHAFT OUTPUT(HP)

≥18.7

≥21.8

≥18.7

≥21.8

TOTAL WEIGHT (Kg)

1420

1440

1390

1390

SPEED (Km/h)

F:2.52-29.69 / R :3.38-13.28

STEERING TYPE

MECHANICAL

BRAKE TYPE

DISC

MIN GROUND CLEARANCE(mm)

400

400

330

330
