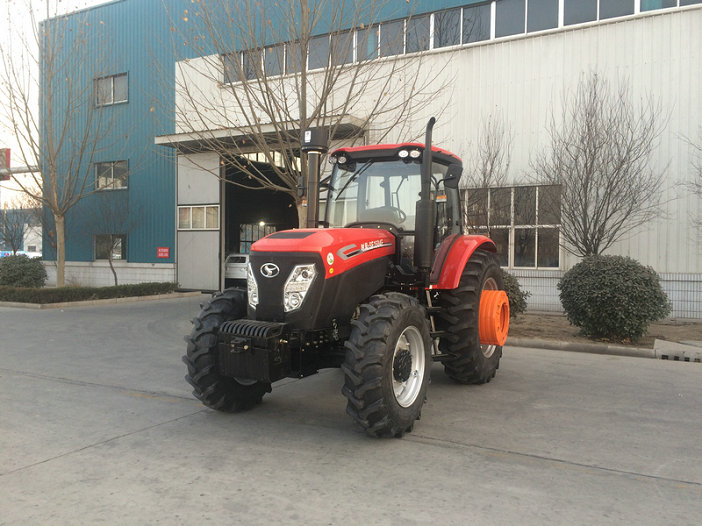

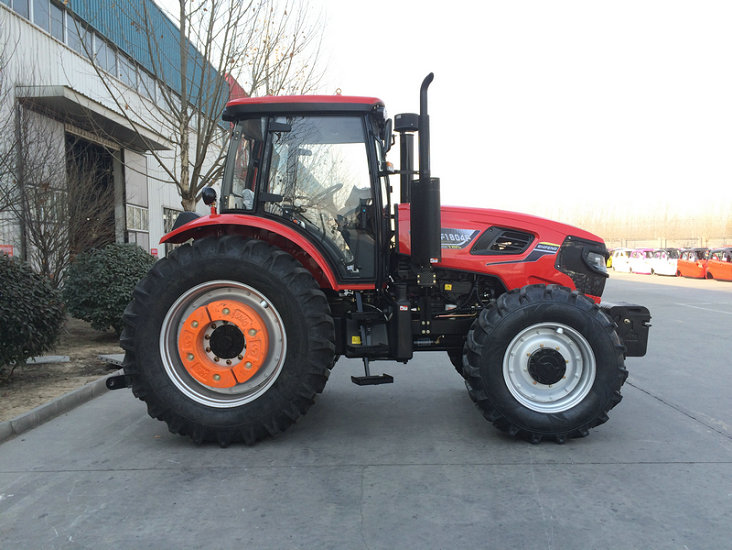

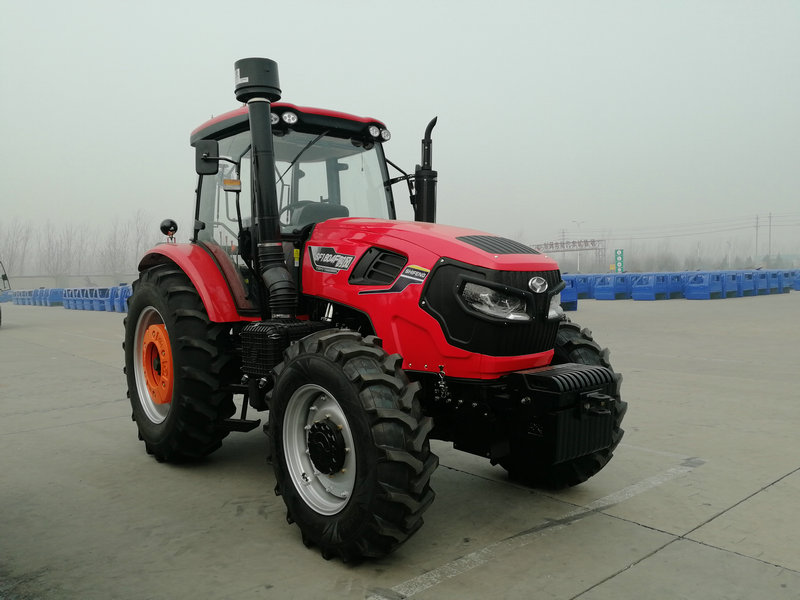

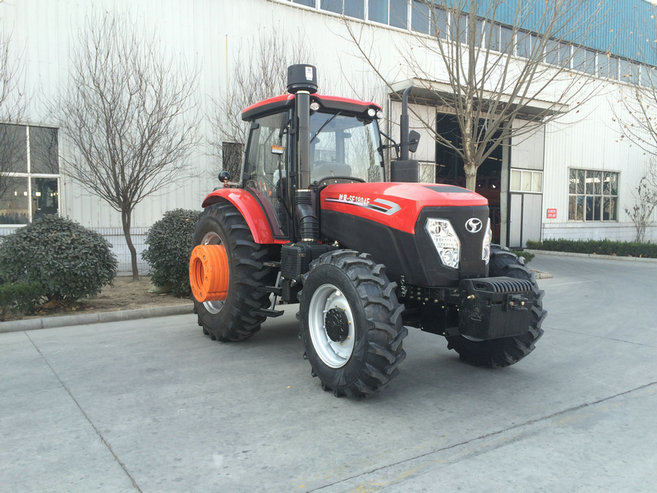

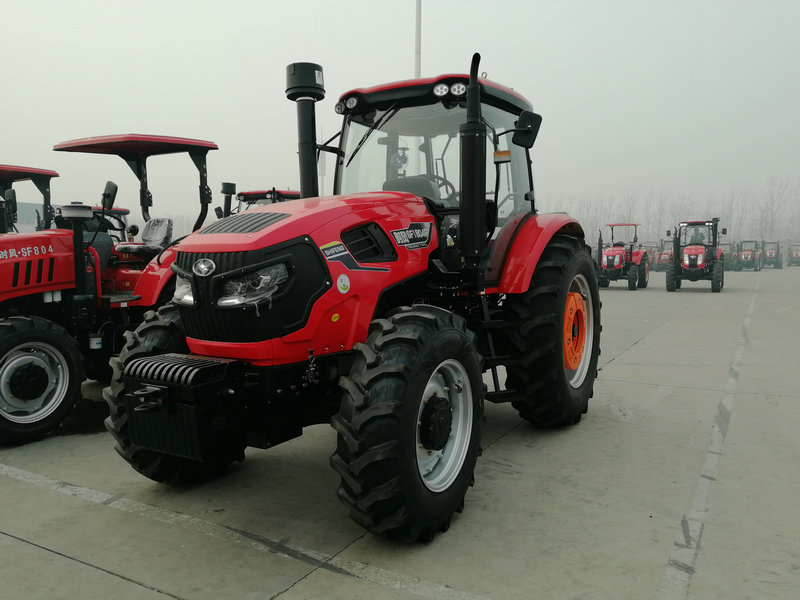

agricultural tractors middle HP tractors2WD tractors4WD tractors
L/CT/TD/P
Famous brand in China with long history and good reputation;
Top quality control: ISO 9001 international quality certification system and domestic 3C quality system;
well known brand engines: sufficient powerul, lower oil consumption with prefect economic performance
High adaptability: meets varieties of agricultural implements
Diverse gear combinations: creeping shift and shuttle shift
Comfortable operation: ergonomics design with hydraulic system
| Model | SF1504F | ||||||
| OUTPUT | 150HP | ||||||
| Type | 4WD | ||||||
| Tractor | Structure Weight (kg) | 5160 | |||||
| Parameters | |||||||
| Min usage weight(kg) | 5360 | ||||||
| Rated Traction ( KN) | 31.1 | ||||||
| Tread (mm) | Front | 1750 (adjustable) | |||||
| Rear | 1760(adjustable) | ||||||
| Wheelbase(mm) | 2638 | ||||||
| Min. turning radius (m) | 4.2±0.3 | ||||||
| Min. ground clearance (mm) | 480 | ||||||
| Overall dimensions (mm) | L*W*H(mm) | 5010×2550×3100 | |||||
| FORWARD | low | general | I | 6.44 | |||
| II | 8.89 | ||||||
| II | 12.9 | ||||||
| IV | 19.19 | ||||||
| crawler | I | 1.5 | |||||
| Theoretical speed (km/h) | II | 2.07 | |||||
| II | 3.01 | ||||||
| IV | 4.48 | ||||||
| high | general | I | 10.63 | ||||
| II | 14.67 | ||||||
| II | 21.3 | ||||||
| IV | 31.67 | ||||||
| crawler | I | 2.48 | |||||
| II | 3.42 | ||||||
| II | 4.97 | ||||||
| IV | 7.39 | ||||||
| REVERSE | general | I | 9.87 | ||||
| II | 13.62 | ||||||
| II | 19.78 | ||||||
| IV | 29.4 | ||||||
| crawler | I | 2.3 | |||||
| II | 3.18 | ||||||
| II | 4.61 | ||||||
| IV | 6.86 | ||||||
| Engine Specifications | Model | WP6G150E330A | |||||
| Type | water-cooled、direct injection、4 stroke | ||||||
| Aspirated type | Turbo charger inter-cooling ,Electronic unit pump,EGR | ||||||
| Bore*stroke (mm) | 6-105×130 | ||||||
| Rated speed (r/min) | 2200 | ||||||
| Rated power (kw) | 110.3 | ||||||
| Transimission | clutch | Single plate、dry、independent 、dual function | |||||
| System | gear box | 4×（2+1）×2 combine stype eith creeper gear,16 forward gear, 12 reverse gear | |||||
| differential | Closed, 4 planetary gear | ||||||
| main drive | sprial bevel gear | ||||||
| final drive | single stage,external engaged | ||||||
| Brake system | service brake | hydraulic,wet disc | |||||
| parking brake | hand,mechainical,multiple | ||||||
| Travelling | tyre | front wheel | 14.9-28 | ||||
| Mechanism | rear wheel | 18.4-38 | |||||
| Steering gear | power steering | ||||||
| Working | Suspension | tri-point behind suspension、catalogueⅡ | |||||
| device | max lifting capacity KN (at 610mm) | ≥26.5 | |||||
| PTO SPPED (R/MIN) | 540/1000 | ||||||
| option | Balance weight, air brake, cabin, ROPS | ||||||
