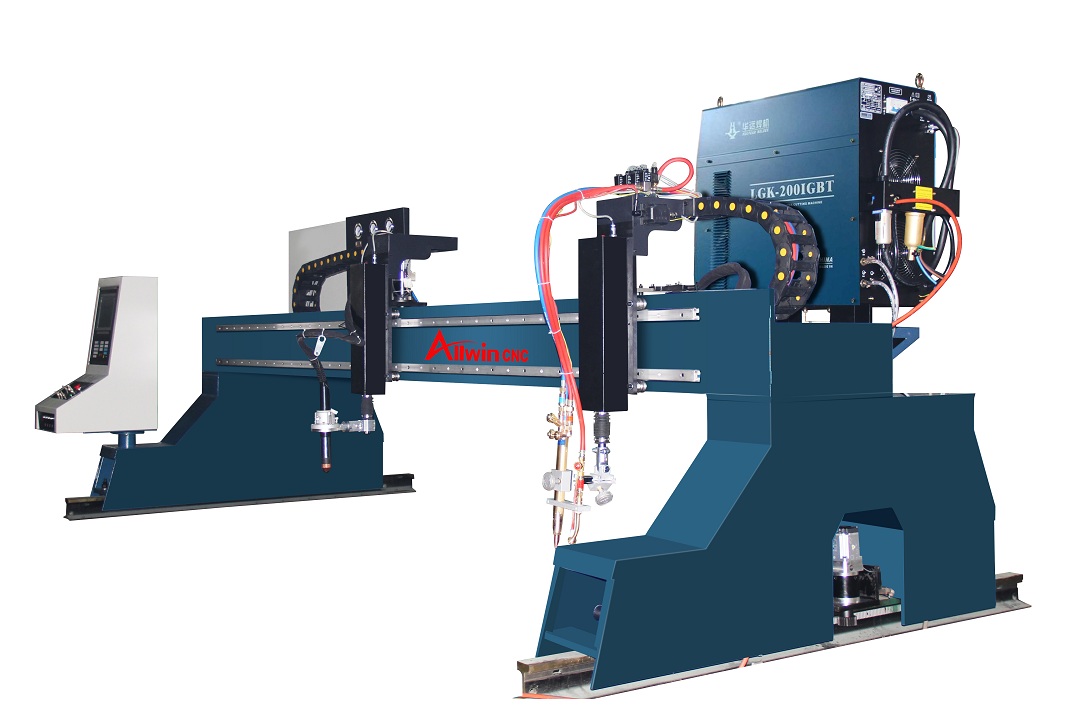

CNC Plasma Gantry cutter Machine Features

The CNC equipment adopts a heavy-duty H-shaped structure, the beam adopts a box-shaped welding structure, no deformation, high-efficiency bilateral drive, compact structure, fully eliminates welding stress, thick and heavy appearance, stable and reliable performance, and is currently the most standard and most versatile in the cutting machine industry. A CNC cutting machine, the beam length is 3m, 4m, 5m, 6m, 8m and othersize, all adopt bilateral drive, dual-axis core linear guide, standard configuration is 4m horizontal gauge, effective cutting range: 3.2m, longitudinal Rail length can be customized, single flame or single plasma cutting mode, with automatic ignition; it can also be equipped with flame and plasma dual-purpose cutting mode.

The attributes of the H-beam gantry plasma CNC cutting machine are as follows:

1.Bridge type plasma cutter with automatic height controller adopts servo motor drive and precision linear guide to ensure the stable operation and high precision of the equipment as a whole equipment

2. Wide range of applications of fine clean plasma cutter with powerful fastcam software Cutting profiles include H-beams, channel steels, angle steels, large-format steel plates, etc. The amount that can be cut includes carbon steel, cast iron, stainless steel, copper, aluminum and other non-ferrous metals. Suitable for large machinery, automobiles, shipbuilding, military industry, boilers, pressure vessels, steel structures and other metal cutting industries.

3 cutting carbon steel  is the clean cnc plasma cutting machine with cutting gun or cutting torch with the best cutting effect in 2021. during cutting process, the amount of deformation is small, the accuracy is high, the cut is smooth, there is no residue(slags) also with plasma torch with water cooling , the cutting speed is fast, and the efficiency is high. It can be equipped with laser scanning function, the scanning time is less than 4 seconds, and there is an automatic nesting software fastcam or startcam. The nesting softare startcam or fastcam is used to improve the utilization rate of the material, reduce the material loss, realize the cutting of no residual material, and leave the long material behind for cutting.

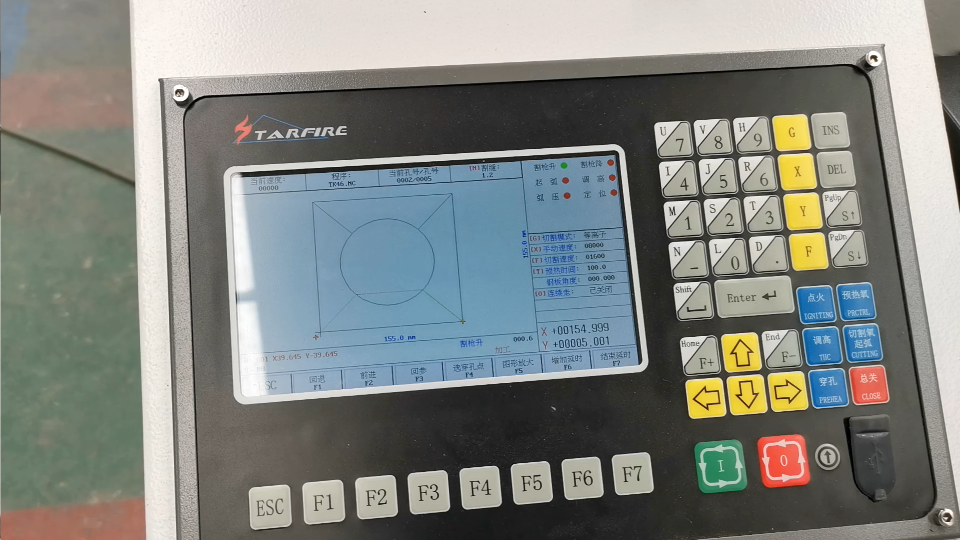

4 The numerical for thc metal  control system of this numerical control cutting machine adopts the working mode of infinite rotation working arm, which respectively completes the cutting of the wings and webs on both sides of the H-beam, as well as the cutting processes of perforation and locking. At the same time, in order to improve the cutting efficiency, the cutting process is divided into three processes. First, the deformation of the profile is scanned by the laser, and the cutting route is optimized according to the nesting software system, which can realize the automatic positioning, automatic error, and multi-type end of the multi-model steel with a total length of 12m. Automatic cutting process of the head.

5 The operation for thc plasma cutter is very easy, safe and reliable. Compact structure, overall quenching treatment, fully eliminate welding stress, thick and atmospheric shape, stable and reliable performance.

6 Automatic carbon steel plasma cutting machine  can be produced continuously for a long time without stopping, and its capacity is equivalent to the total workload of 8-10 skilled workers, which greatly reduces labor costs.

 Portable  CNC Plasma Gantry cutter  Technical specification

PLASMA CUTTER  Applications

Allwin Gantry plasma cutting machine is  suitable for large-scale construction machinery, boiler manufacturing, power equipment, three-dimensional storage, shipbuilding enterprises, automobile manufacturing, steel structures and other metal processing industries.

View More Information Click Here

Plasma Cutting Capacity of  portable Plasma cutter

Portable cnc Plasma cutter Details
