The quartz stone slab production line is consist of following key machine:
continuous automatic grinding machine.
continuous automatic thickness calibrating machine.
Vacuum vibration pressing machine
Cutting machine

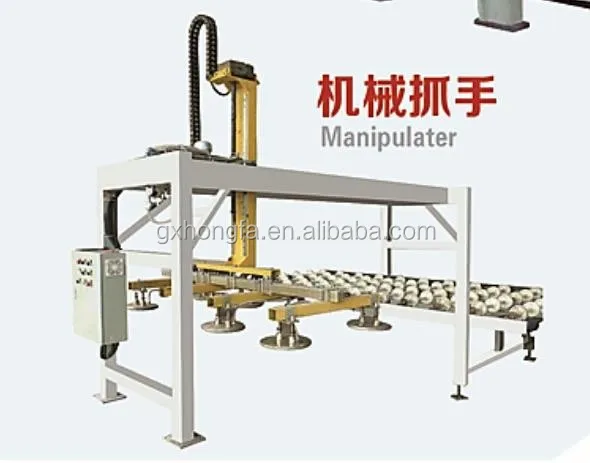

Quartz stone slab stacker
Plate turnover machine
| Model | Grinding head No. | Plate max width of plate(mm) | Plate max thickness(mm) | Total Kw | Dimension (mm) | Weight(T) |
| 8LM100 | 8 | 1000 | 50 | 100 | 7600x2700x2460 | 9 |
| 8LM170 | 8 | 1700 | 50 | 100 | 7600x3400x2460 | 11 |
| 8LM1190 | 8 | 1900 | 50 | 100 | 7600x3600x2460 | 12 |
| 12LM170 | 12 | 1700 | 50 | 150 | 9800x3400x2460 | 15 |
| 12LM190 | 12 | 1900 | 50 | 150 | 7600x3600x2460 | 17 |
| 16LM170 | 16 | 1700 | 50 | 200 | 12200x3730x2460 | 19 |
| 16LM190 | 16 | 1900 | 50 | 200 | 12200x3930x2460 | 23.5 |
| 20LM190 | 20 | 1900 | 50 | 250 | 16300x3930x2460 | 32 |
| Model | Grinding head No. | Plate max width of plate(mm) | Plate max thickness(mm) | Total Kw | Dimension (mm) | Weight(T) |
| 4LX100 | 4 | 1000 | 50 | 70 | 5000x2800x2240 | 6 |
| 4LX170 | 4 | 1700 | 50 | 70 | 5000x3500x2240 | 7 |
| 4LX190 | 4 | 1900 | 50 | 70 | 5000x3700x2240 | 8 |
| 6LX100 | 6 | 1000 | 50 | 100 | 6200x2800x2240 | 8 |
| 6LX170 | 6 | 1700 | 50 | 100 | 6200x3500x2240 | 10 |
| 6LX190 | 6 | 1900 | 50 | 100 | 6200x3700x2240 | 11 |
| 8LX190 | 8 | 1900 | 50 | 130 | 7400x3700x2240 | 14 |
| Model | Plate max width of plate(mm) | Plate max length (mm) | Plate max thickness (mm) | Total vibration No. | Dimension (mm) | Weight(T) |
| LY100X250 | 1000 | 2500 | 50 | 6 | 4760x1900x2400 | 8 |
| LY100X310 | 1000 | 3100 | 50 | 6 | 5360x1900x2400 | 9 |
| LY170X250 | 1700 | 2500 | 50 | 6 | 4760x2480x2400 | 14 |
| LY170X330 | 1700 | 3300 | 50 | 6 | 5560x2480x2400 | 17 |
| LY190X330 | 1900 | 3300 | 50 | 6 | 5560x2680x2400 | 19 |
4. LQ Cutting machine
LQ series cuting machine is used in vertical and holizontal cutting for the plate of quartz stone. It can make the plate pass continuously on the production line and cut down turnover of the plate. There are 4 blade and 5 blade two types according to the different thickness of plate, the plate can be cut to two part. The biggest plate can be cut into 3 sizes, 2500mm, 3100mm, 3300mm and so on, reliable guide rail and spindle structure make sure the incision straigtness, automatic control operational process, computer show data, the length and width can be adjusted within certain limits.
| Model | Plate max thickness of plate(mm) | Plate max length (mm) | Conveyor motor power (Kw) | Dimension (mm) |
| LQ80X250 | 800 | 2500 | 7.5 | 4150x2020x2000 |
| LQ80X310 | 800 | 3100 | 7.5 | 4790x2020x2000 |
| LQ170X330 | 1700 | 3300 | 7.5 | 5000x2920x2000 |
| LQ190X330 | 1900 | 3300 | 7.5 | 5000x3120x2000 |

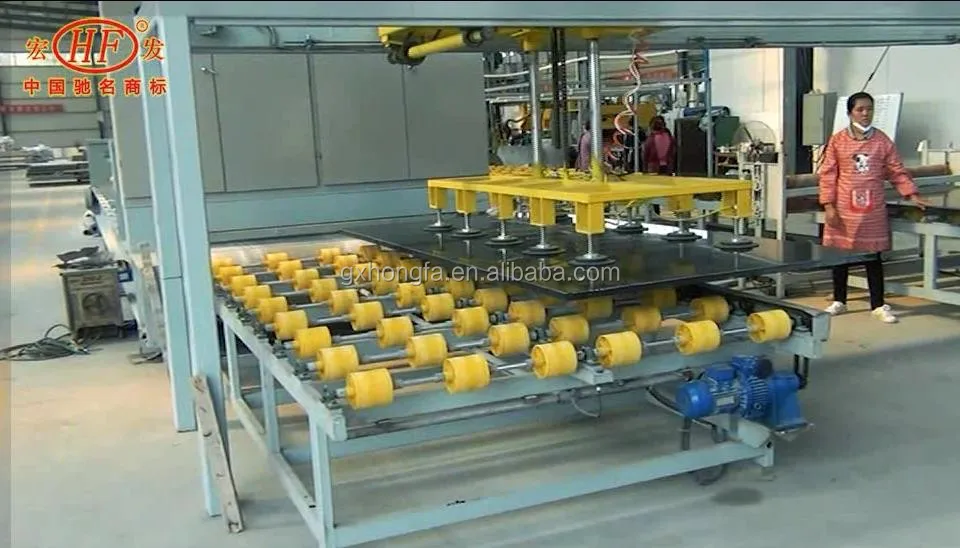

5.Quartz stone slab stacker

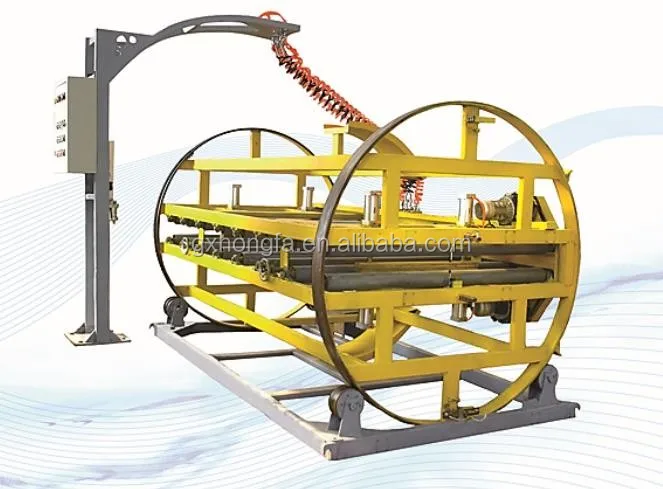

6. LF series plate turnover machine
Following quartz stone slab partern is typical for you reference only. there are hundreds of parttern available, the material proportion data could be provided to your project against the deal come into reality.
Guangxi Hongfa Heavy Machinery Co.,Ltd ,having three manufacturing factories and also an export company,specialized in Concrete Precast machinery.Whole production line equipment of Pallet free concrete /fly ash noiseless brick production line,concrete pipes, concrete blocks, paving bricks,concrete batching plants, AAC production line and EPS wall panel production line, quartz stone slab production line, we are the most widely machinery & equipment manufacturer and supplier in the block industry in China.
Hongfa provides our clients with coordinated-process service of Designing, Manufacturing,
Installing& Commissioning,and Programming for your factory layout and worker training,with more than 20 years experience in the block industry line, our machine have been sevice to more than 76 countries and regions such as russia, India, South Africa and so on.

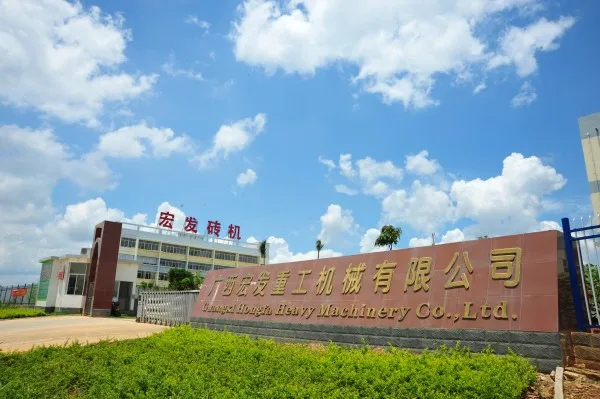

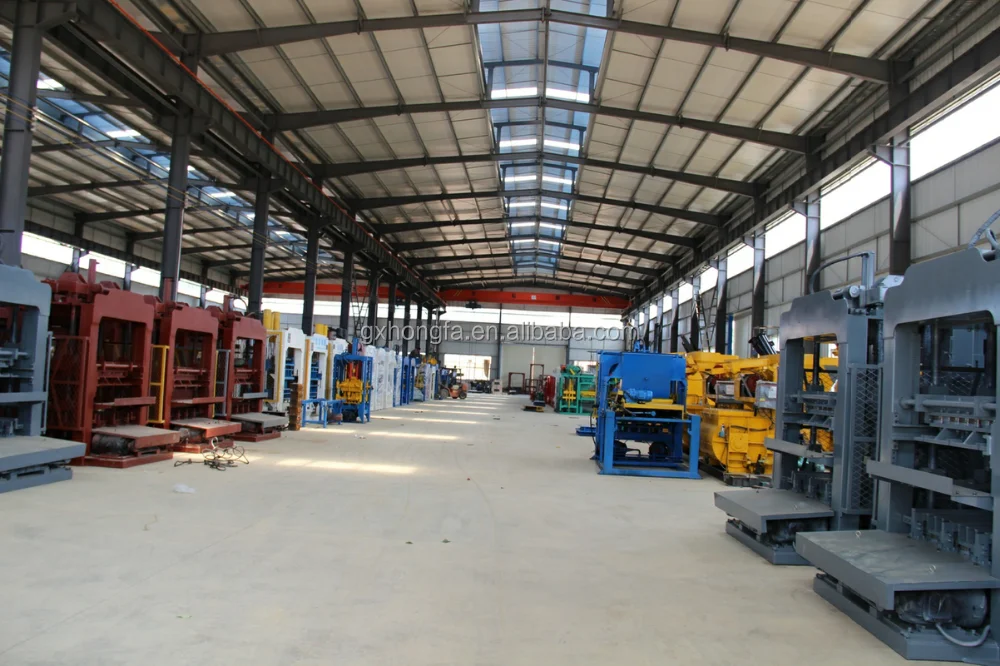

Hongfa group, there are two production bases (Guangxi production base and shandong production base), three production factories, two imported-exported companies, on provincial construction & building material machinery institute, one new construction materials company and have established sales companies in vietnam, India and indonesia. Guangxi production base, location of 20 km colse to the Nanning city (largest city in western of China, also the Capital city of Guangxi), covers an area of 60000 m2, building erea of 23000 M2, there are more than 200 employee. Shandong production base, is located in Dazhuang Economic & Devoloping zone, Yian country, Shandong province, covers an area of 300000 M2, building area of 86000 M2, with more than 1000 employee.
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.China National Enterprise Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protection Demonstration Unit
4.High and New Technology Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit
Quality shift its valve, You are warmly welcomed to visit us with your personal witness you will find productively here. For more information about us, please browse our website: www.gxhongfa.cn
