welcome visit our website www.cncallwin.com

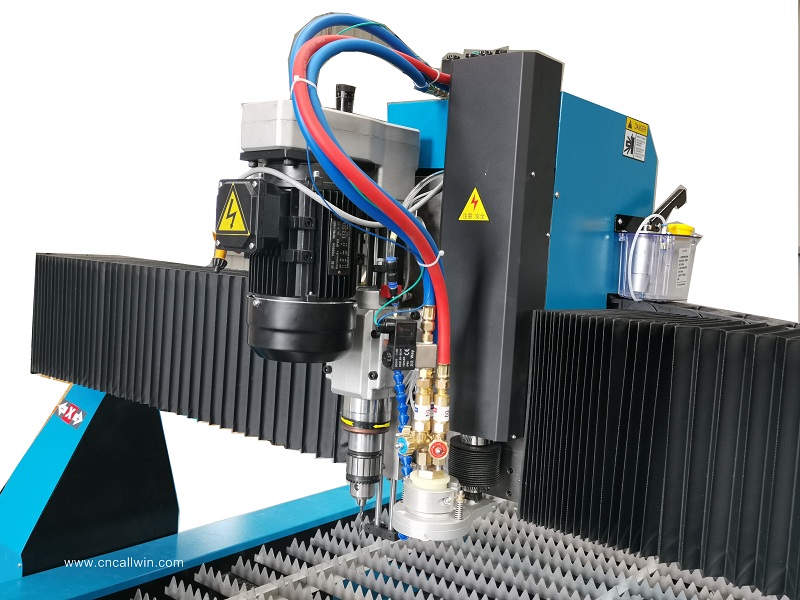

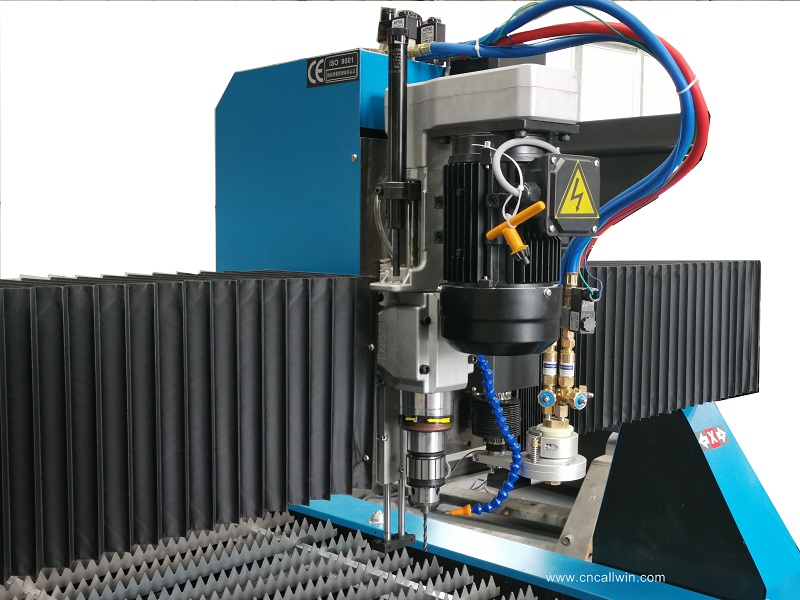

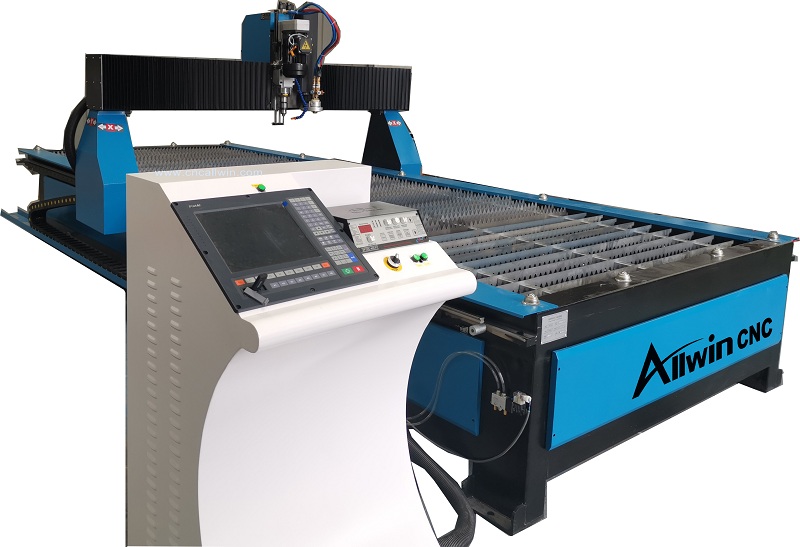

CNC plasma metal cutting and drilling machine Features
CNC plasma metal cutting and drilling integrated machine, the structure is basically the same as that of desktop plasma cutting machine, both adopt box welding structure, adopt overall quenching treatment, the structure is stable, and it is not easy to deform; and the drilling is installed on the basis of desktop plasma cutting machine The function of the desktop plasma cutting machine retains the advantages of high cutting accuracy, and can directly drill holes on the workpiece The main features of the CNC plasma metal cutting and drilling machine are as follows.
1.The cutting performance and cutting quality are the same as those of desktop plasma cutting machines with the same configuration.

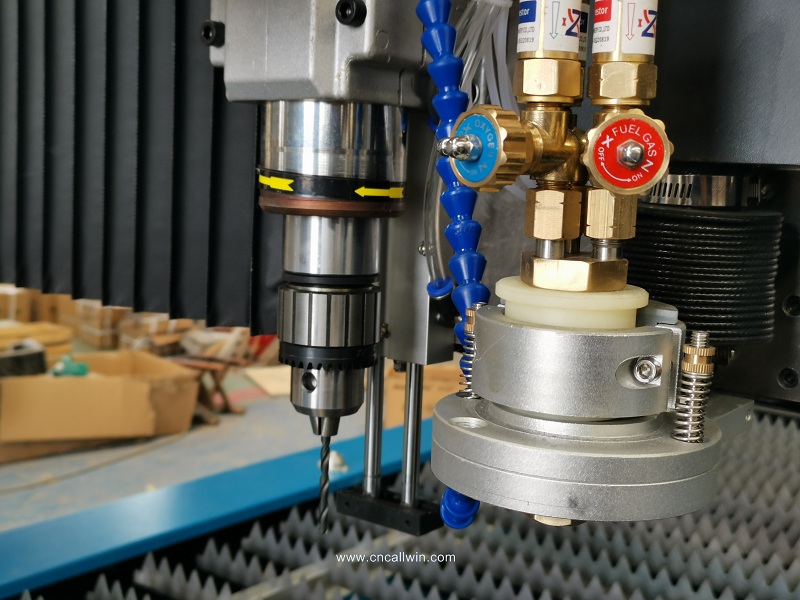

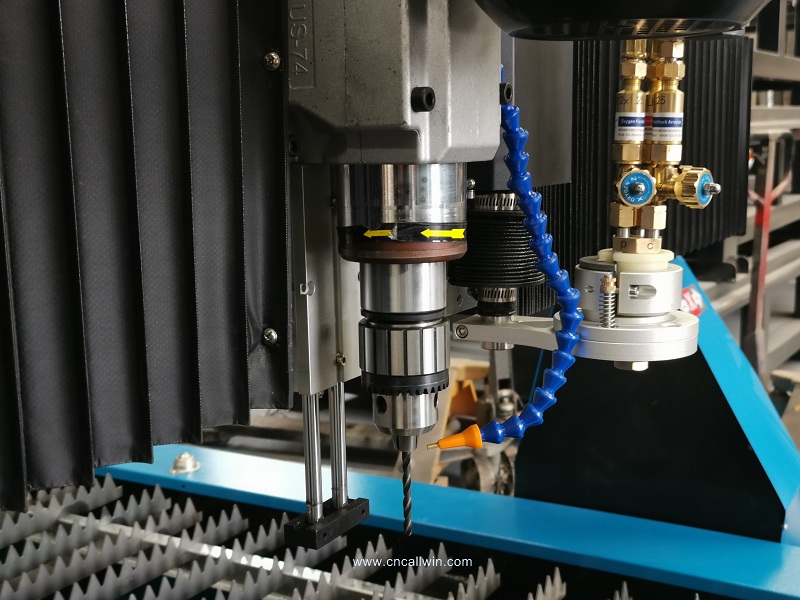

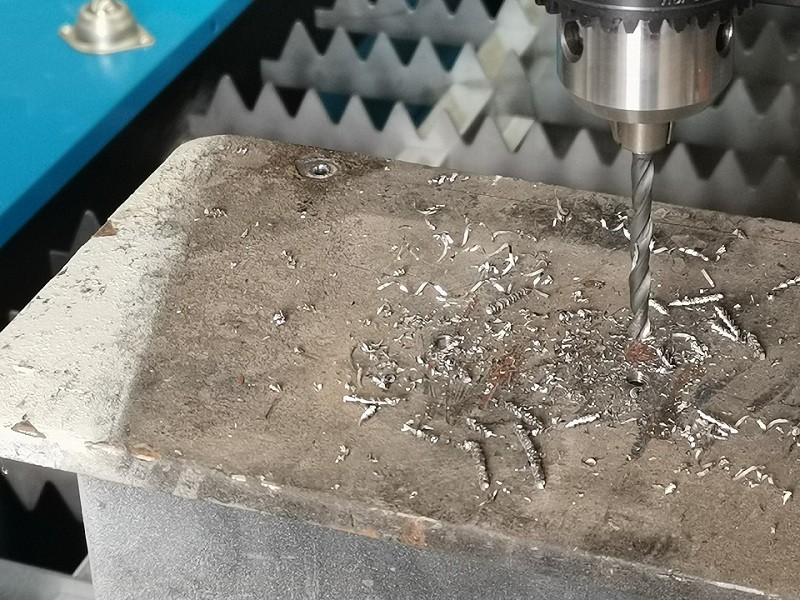

2.Drilling and cutting are integrated. Drilling can be done directly on the cut workpiece
CNC plasma metal cutting and drilling machine Technical specification
| Model | 1530 |
| Table Size | 1500 mmx 3000mm |
| Plasma Power | USA Hypertherm Power: 45A, 65A, 85A, 105A, 125A, 200AChinese Huayuan Power: 63A, 100A, 120A, 160A, 200A |
| Cutting Thickness | 0.3-30mm (According to different plasma power) |
| Minimum Cutting Diameter | Depend on cutting thickness |
| Max Cutting Speed | 12m/min |

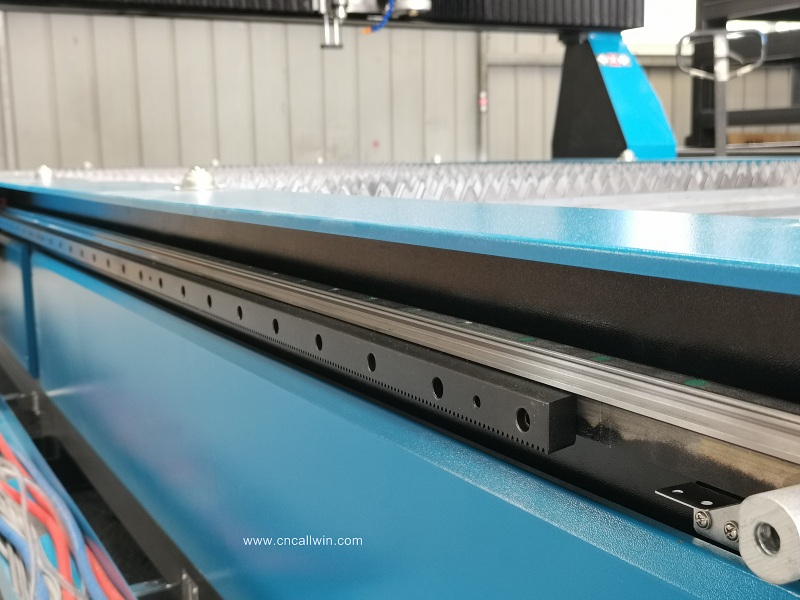

| Transmission | Taiwan Hiwin Square rail and Rack transmission |
| Drive Motor | Leadshine stepper motor and driver |
| Control System | Starfire control system with THC |
| Table | Blade table or Sawtooth table |
| Machine Frame | General machine frame or Heavy duty frame |
| Working voltage | 220V for machine, 380V for power supply (63A with 220V i |
| Optional Parts | Rotary device, Flame head, Drilling head, Marking head, A |
| Consumable Parts | Cutting nozzle and electrode |
| Drilling | Yes |
CNC plasma metal cutting machine Applications
Allwin table plasma cutting machine is suitable for boiler manufacturing, power equipment, three-dimensional storage, shipbuilding enterprises, automobile manufacturing, steel structures and other metal processing industries.
View More Information Click Here
Plasma Cutting Capacity of portable Plasma cutter
| China Huayuan Power | USA Hypertherm Power | ||
| Power supply | Cutting thickness | Power supply | Cutting thickness |
| 63A | 8mm | 45A | 8mm |
| 100A | 15mm | 65A | 10mm |
| 120A | 20mm | 85A | 12mm |
| 160A | 30mm | 105A | 18mm |
| 200A | 40mm | 125A | 25mm |
| 200A | 30mm | ||
Portable cnc Plasma cutter Details
