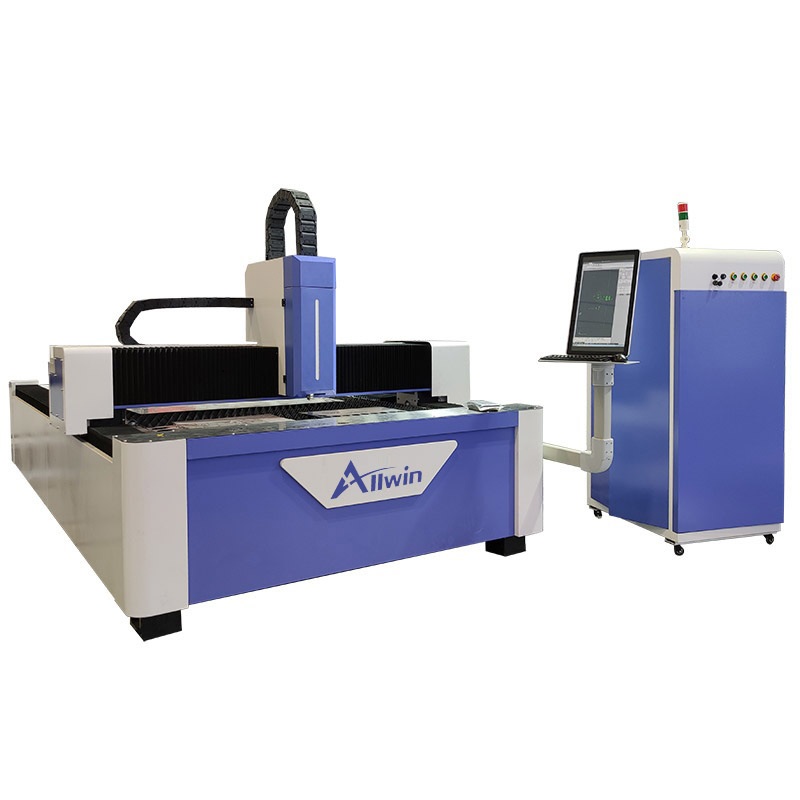

CNC laser cutter machine Features
1. Automatic focusing, intelligent alarm system, automatic lubrication system
2. Realize the cutting of ultra-fine holes, support three-level perforation, segmentation or progressive combination, and the proportion of small hole processing range can be reduced by about 0.3mm (the thickness of ordinary steel plate is more than 4mm)
3. Support dual-platform fast exchange system (optional), fast cutting speed.
4. Z-axis automatic tracking system, equipped with a capacitive non-contact automatic tracking system, which can automatically adjust the focus to ensure the effect of genuine cutting
5. Using the machine tool with side guide rail structure, the vertical surface bears weight vertically and is not easy to be deformed
6. Laser interferometer correction and compensation, positioning accuracy can reach micron level
7. The spot quality is good, the material deformation is small, the appearance is smooth and flat, and beautiful.
8. Adopting imported servo motor and guiding transmission mechanism, high cutting precision.
9. Use professional software to design all kinds of graphics or text at will, with flexible processing, simple and convenient operation.
10. High stability, using imported light laser (optional), stable performance, the service life of key components can reach 100,000 hours, and the laser is maintenance-free.
11. Lower maintenance cost, no laser working gas: light transmission, no need for reflective lenses, which can save a lot of maintenance costs.
12. The product is easy to operate and maintain, light transmission, no need to adjust the light path.
CNC laser cutterTechnical specification
| Model | LD-1530 |
| Working Area | 1500mmx3000mm |
| Brand | ALLWIN CNC |
| Laser Power | 1000W/1500W/2000W/3000w RAYCUS fiber laser |
| laser head | Swiss RAYTOOLS with auto focus |
| software | Professional FSCUT2000 with Cypcut software |
| motor and driver | Japanese YASKAWA servo motors 850W |
| Reducer | Japan SHIMPO reducer |
| Water chiller | S&A brand with Dual temperature,dual control |
| Rack and pinion | Taiwan brand T-WIN rack and pinion |
| Guild rails | HIWIN GUILDER RAIL |
| Exhaust fan | Blower Exhaust fan |
| Air compressor | YES |
| voltage stabilizer | YES |
| Cutting Thickness | 0.3-30mm (According to different fiber laser ) |
| Max Cutting Speed | 40m/min |
| Repeated Positioning Accuracy | 0.02mm |
| Transmission | gear rack double driver |
| Machine Structure | General machine frame or Heavy duty frame |
| Machine weight | 2100kg |
| Power Requirements | 380V/50HZ/3P (220V Avaliable) |

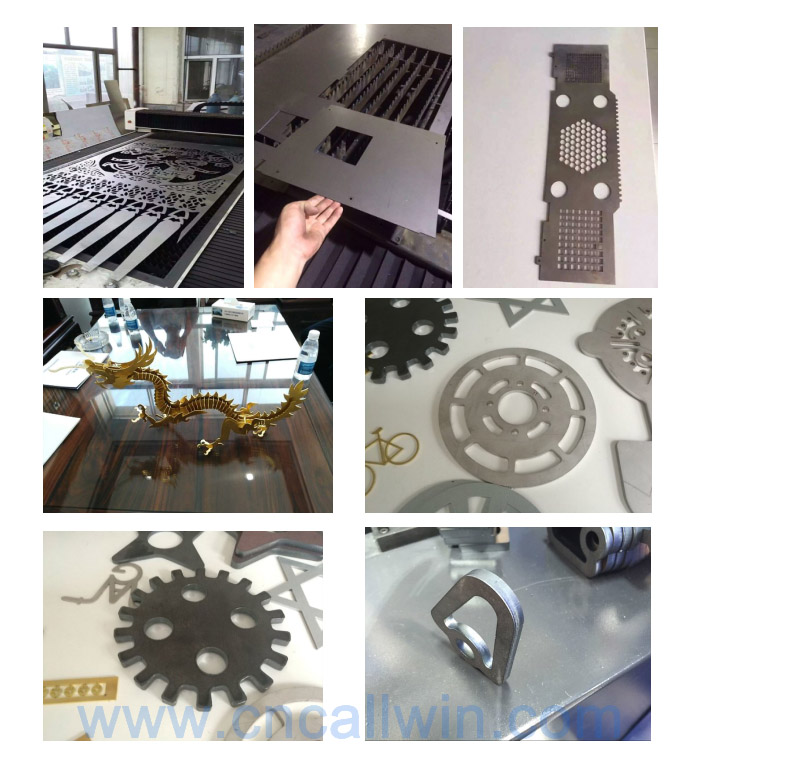

CNC laser cutter machine Applications
Fiber CNC laser cutter is suitable for aerospace manufacturing, precision parts manufacturing, automobile manufacturing, ship manufacturing, subway accessories, electrical appliances manufacturing, elevator manufacturing, all kinds of machinery production, elevator manufacturing, metal craft products, advertising decoration and other small business industries.
Raycus laser source（1000w/1500w /2000w/3000w for option)
CNC laser cutter machine Details
