Introduction：

This is an automated packaging equipment that includes stretch thermoforming, vacuum (air inflation), heat sealing, coding, cutting, collecting and conveying.

Technical Parameters：

Application :

The equipment is mainly suitable for:steak,grilled sausage,ham sausage,crispy sausage,pickled chicken feet,quail eggs,dried tofu,fish products,beef products,lamb products,soild sauce,dried fruits,cheese,electronic components,metal products and other products that require vacuum packaging.

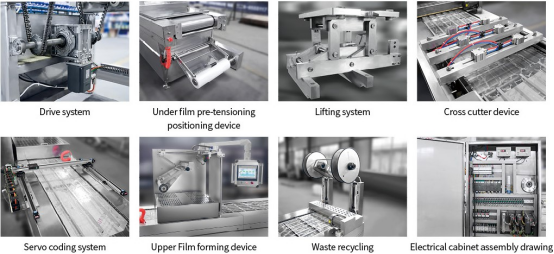

Product Detail:

1.Drive system

2.Under film pre-tensioning positioning device

3.Lifting system

4.Cross cutter device

5.Servo coding system

6.Upper Film forming device

7.Waste recycling

8.Electrical cabinet assembly drawing

Detailed configuration:

1.German Siemens Computer Programmable Logic Controller (PLC) control, large capacity input and output.
2.  German Siemens 10-inch color human-machine interface touch screen.
3.  1.5KW German Siemens servo control system, high-speed and high-precision step-by-step speed.
4.  TYC clamping chain
5.  Imported electrical appliances (American Bonner color sensor, Schneider contactor & relay, button switch, power  protector, Yangming solid state relay, Japanese Omron proximity switch, etc.).
6.  The pneumatic part adopts Yadeke Valve Terminal pneumatic system.
7.  The pollution-free large vacuum pump for environmental-friendly high vacuum thermoforming packaging machine (Rietschle/Busch, optional to client’s requirement) imported from Germany with original package, with the maximum vacuum degree of 0.1 millibar.
8. Imported photoelectric tracking system and color film can be used to ensure that the pattern position is correct.
9. The whole machine adopts 304 stainless steel frame, which has high strength, strong corrosion resistance and is not easy to deform.
10.  The upper and lower membranes adopt a new type of propelling membrane system.
11.  Shaping, sealing and lifting adopt pneumatic lever independent lifting and self-locking system.
12.  Precision positioning in front, back, left and right directions.
13.  Transverse cutter works independently with single cutter and central computer control.
14.  Equipped with corner waste recycling system.
15.  The lifting sliding bearing adopts lubricating-free graphite copper sleeve.
16.  All parts of forming, sealing, horizontal knife and longitudinal knife are equipped with safety protection system and protective cover.
17.  The equipment is equipped with alarming or protection systems such as power phase loss or inversion, excessive or low voltage, mechanical periodic lubrication, etc., which are convenient for operators to use and adjust. Automatic stop protection when there is a failure and display the info of the error and corresponding treatment of the failure on the computer.
