adobe lightroom board making machinery AAC plan

It has the advantages from the process:

1. It can realize the mixed grinding to prepare the cementitious material and effectively improve the pouring stability; the flow-tube type pouring stirring can shorten the stirring time and greatly improve the uniformity of stirring.

2. Raw material processing can realize the hydrothermal ball milling process and improve the stability of fly ash and mortar.

3. Staggered batching process. The batching building is divided into two and staggered. It simplifies the layout of equipment and building structure, and meets the requirements of staff space and equipment layout.

4. Integrated layout technology, which arranges the batching, pouring, pre-cultivation, cutting, bottom removal, marshalling and other processes in the same workshop. Uses hydraulic lifting and conveying equipment to separate the walking guide from the main body of the workshop and reduce the height of the workshop. Layout, avoiding dead corners in the building, shortening the return path of waste water and waste slurry, reducing the moving space of operators and improving work efficiency.

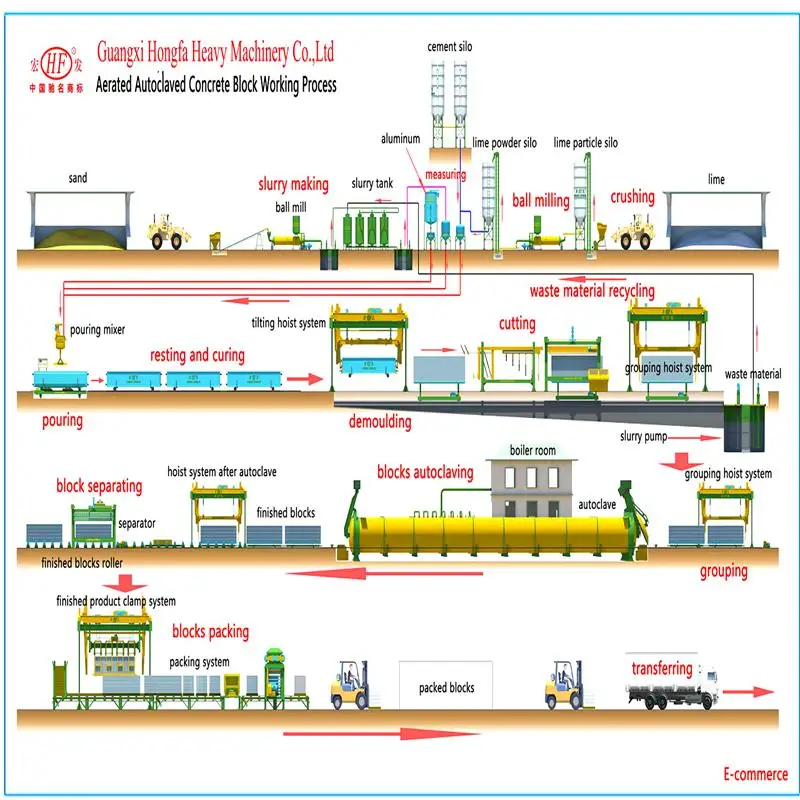

1. Material dealing process
Put the fly ash or sand into the ball mill to mill via the conveyor belt, after milling, put the slurry into the slurry storage tank by slurry pump.

2.Batching, mixing and pouring process

The lime, cement will convey by conveyor to the dry powder measure scale to scale separately. The slurry convey by slurry pump then to the automatic scale;the power and slurry put into the mixer,pouring into the mould.

3.Curing process

After slurry pouring into the mould, put the mould box into the curing room with 50~70℃. After 2-3 hours curing,the blocks become solid

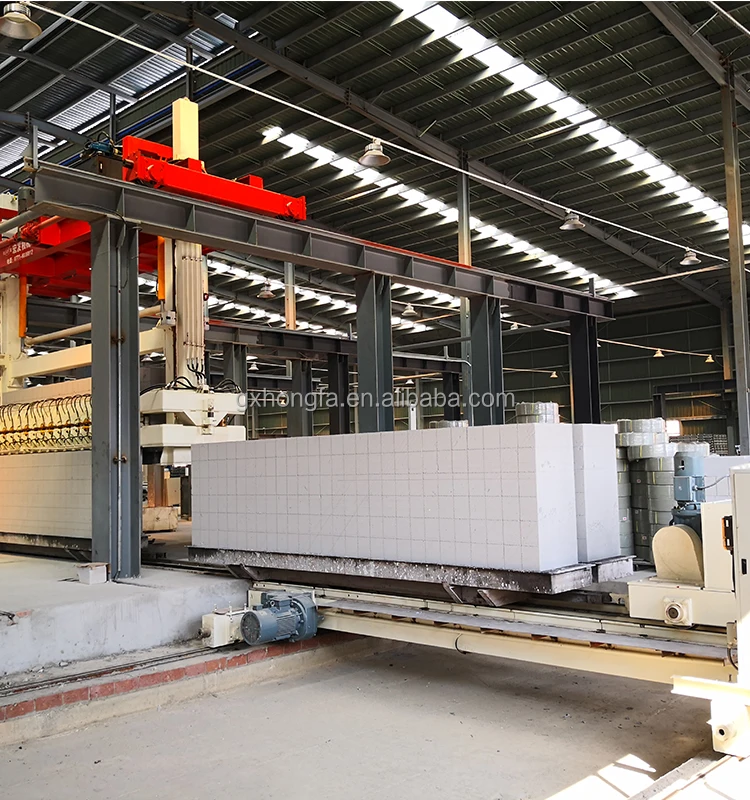

4.Cutting process

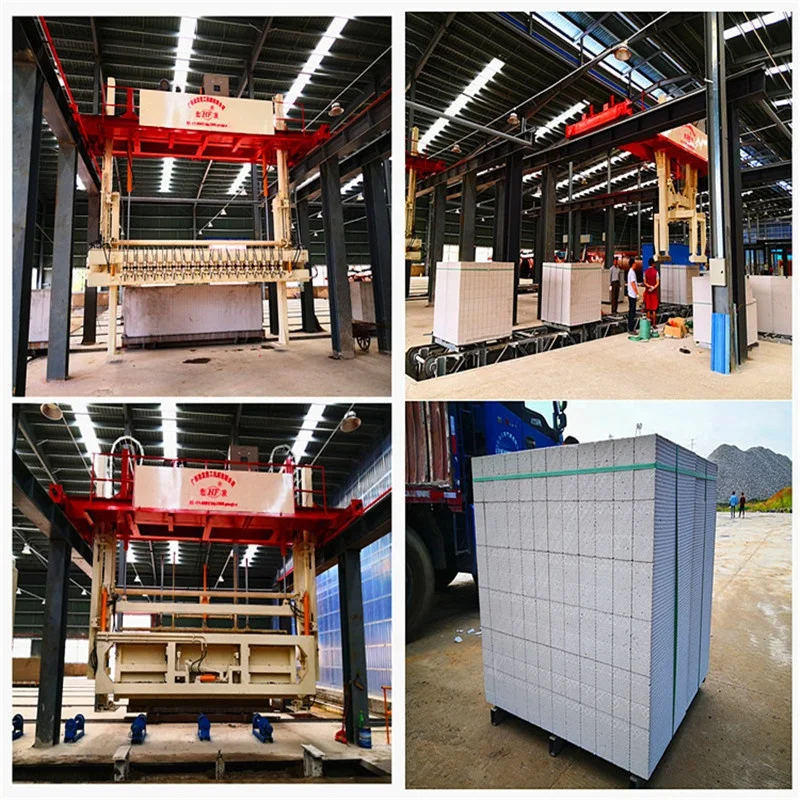

Using reversal crane carry the mould and block to demould on cutting cart. The cutting cart will take the block to level cutting machine,vertical cutting ,two sides cutting,and remove the top waste material.

5.Autoclaved

Finished cutting using semi-product crane carry to the front of autoclave grouped,hoisting machine or dragger will drag steam trolley into autoclave to steam,it need 10-12 hours.

6.Finished block dealing

Finished product out of autoclave,with separting machine to separate layer by layer.

7.Package

Using finished block carry hanger clamp the finished product to package line on wooden pallets,after package, then by forklift transport the finished products to piled yard according to specifications to stack.

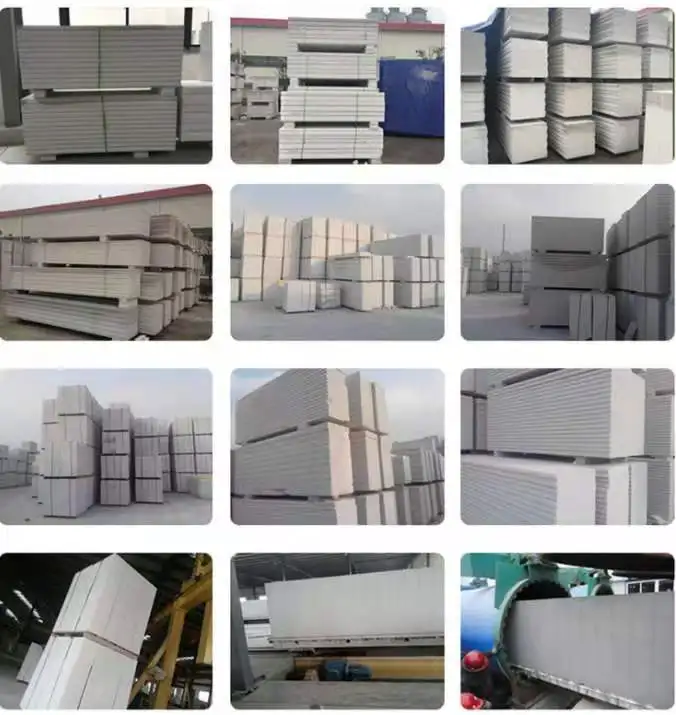

Brief introduction

Aerated Autoclave Concrete Block is a lightweight AAC block manufactured through a reaction of aluminum powder and a proportionate blend of fly ash, lime, cement, and sand. AAC blocks manufacturing business idea in India is booming as the demand for these blocks is taking over the need for red bricks in India. The AAC Block manufacturing process involves the hydrogen gas escaping in tiny air cells and giving AAC blocks a durable cellular structure. AAC is light weighted, easily constructed, and economically cheap to transport.

 #AACblocks

AAC brick manufacturing process involves the steps like mixing the mixtures followed by pouring the mixture into the block casting mold, further demolding and cutting of blocks with the help of wire, and then heating the blocks at high-pressure steam for 12 hours. The popularity of AAC blocks is increasing because it is environment-friendly, budget-friendly, and provides more resistance to the structure of the building.

Why AAC brick?

Compressive strength of autoclaved aerated concrete block is different due to its bulk weight and production process. Compressive strength is also generally higher when bulk weight is larger and products of the same bulk weight has also different strength due to the difference of the production process.Provisions in China standard 2-3 strength grades in a volume-weight grade, to facilitate the selection of design, application of the unit or more flexibility.

General specification

According to product strength and bulk density (weight per cubic meter), it is divided into different grades. Commonly used are: strength A3.5, bulk density B06. The higher the strength, the lighter the bulk density
Size deviation

The advantages of Hongfa AAC block production line

1.It can realize the mixed grinding to prepare the cementitious material and effectively improve the pouring stability;the flow - tube type pouring stirring can shorten the stirring time and greatly improve the uniformity of stirring.

2.Raw material processing can realize the hydrathermal ball milling process and improve the stability of fly ash and mortar.

3.Staggered batching process.the batching building is divided into two and staggered .It simpliifies the layout of equipment and building structure,and meets the requirements of staff space and equipment layout .

4.Integrated layout technology,which arranges the batching,pouring,pre-cultivation,cutting ,bottom removal,marshalling and other processes in the same workshop.Uses hydraulic lifting and conveying equipment to sparate the walking guide from the main body of the workshop and reduce the height of the workshop .Layout ,avoiding dead corners in the building,shortening the return path of waste slurry,reducing the moving space of operators and improving work efficiency.

Packing: Naked packing or stretch film packing or according to customers' requirements
Delivery time: Within 30 days after receipt of deposit and moulds confirmation from buyer

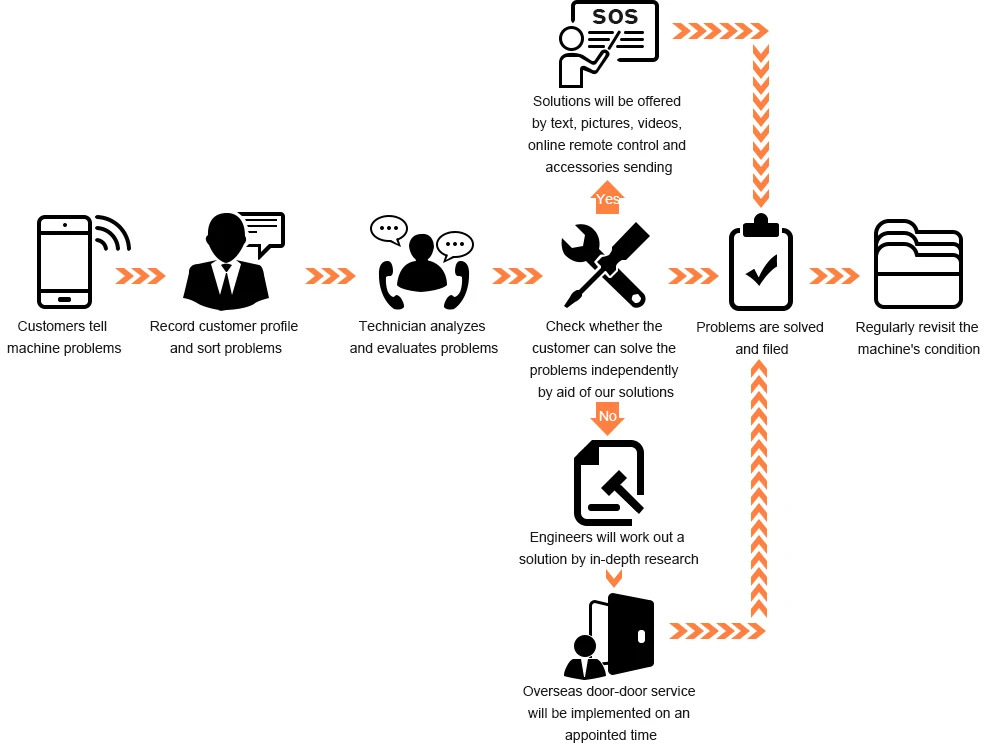

 1.Guarantee for one year and after sale service for whole life.To offer free design,free technology support and free machine maintenance trainning.
2.We will provide you with a set of spare parts for free!

 Hongfa Machinery is your best choice

Brand and quality

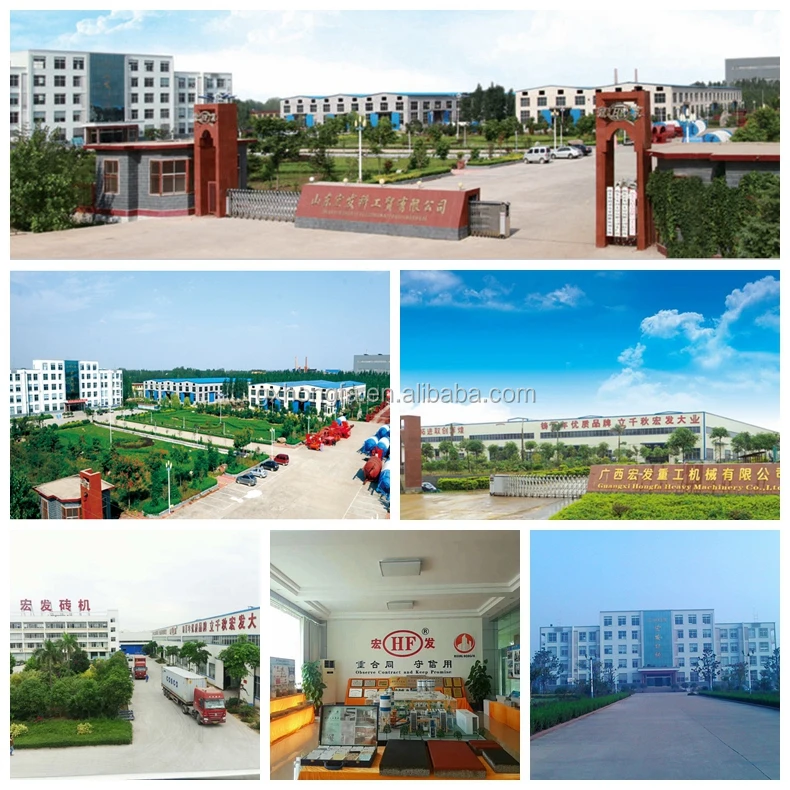

We are a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine,concrete mixing plant,mixer,concrete block making machine,concrete tile making machine and concrete pipe making machine etc. with more than 30 years experience and being the biggest manufacturer in China at present.All the products are conformity with the standard of the state, and gets the ISO9001-2000 Quality System certificate, also honored as "One of the Top Ten Famous Brands of Brick & Tile field in China" and other honors.

Hongfa Machinery's Honor
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.China National Enterprise Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protection Demonstration Unit
4.High and New Technology Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit

Exhibitions & cooperations

Hongfa, as a top brand enterprise in China, our products are also exported to Russia, Brazil, Thailand, Indonesia, Vietnam, Angola, Bangladesh, India, Australia, Sudan, etc., 132 countries and regions, deeply welcomed by clients from all around the world.

Hongfa Machinery Group Main Products :
Main products: Concrete mixing plant,mixer, concrete block making machine,concrete tile making machine and concrete pipe making machine  .

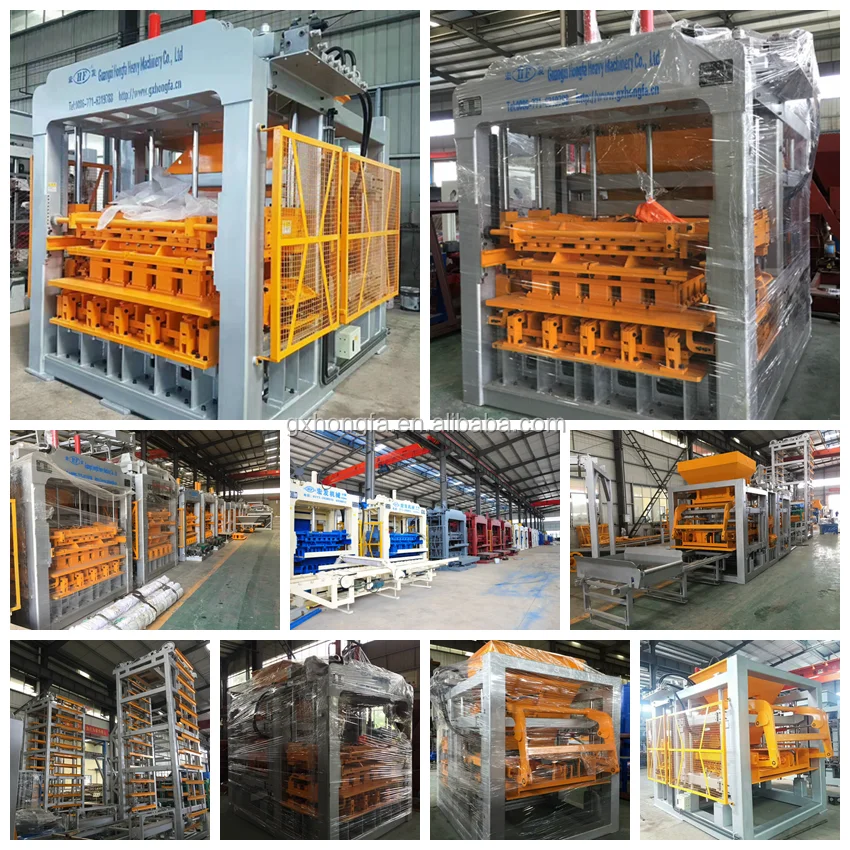

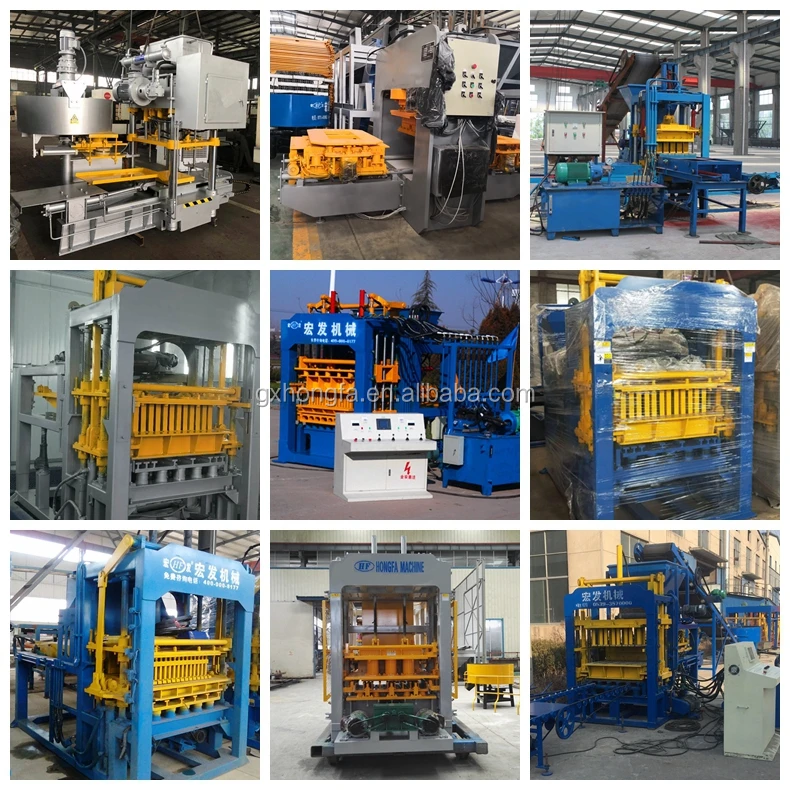

Automatic Block Making:
QT12-15D   QT12-15  QT10-15D  QT10-15  QT9-15 QT8-15D
QT8-15B   QT6-15D  QT6-15C  QT6-15B  QT4-15D  QT4-15C
QT4-15B  QT4-20C  QTJ4-25
Semi-automatic:
QTJ4-35B2  QTJ4-40B2
Semi-automatic egg-laying machine:
QTY4-30  QMJ4-45  QTJ2-45  JMQ-6A

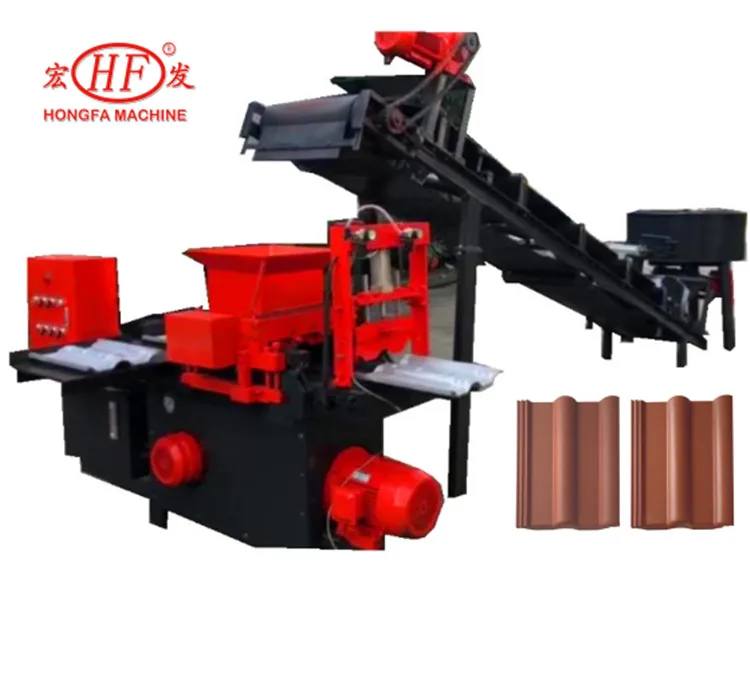

Color Paver Color tile forming machine:
QT3-20   SMY8-150

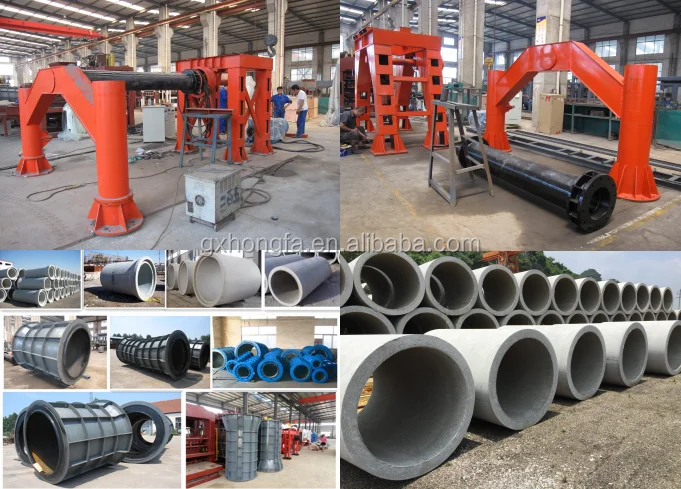

HF-800 pipe-making machine  HF-2000 pipe-making machine
Concrete Mixing Plant:
HZS25  HZS35    HZS50  HZS60  HZS series

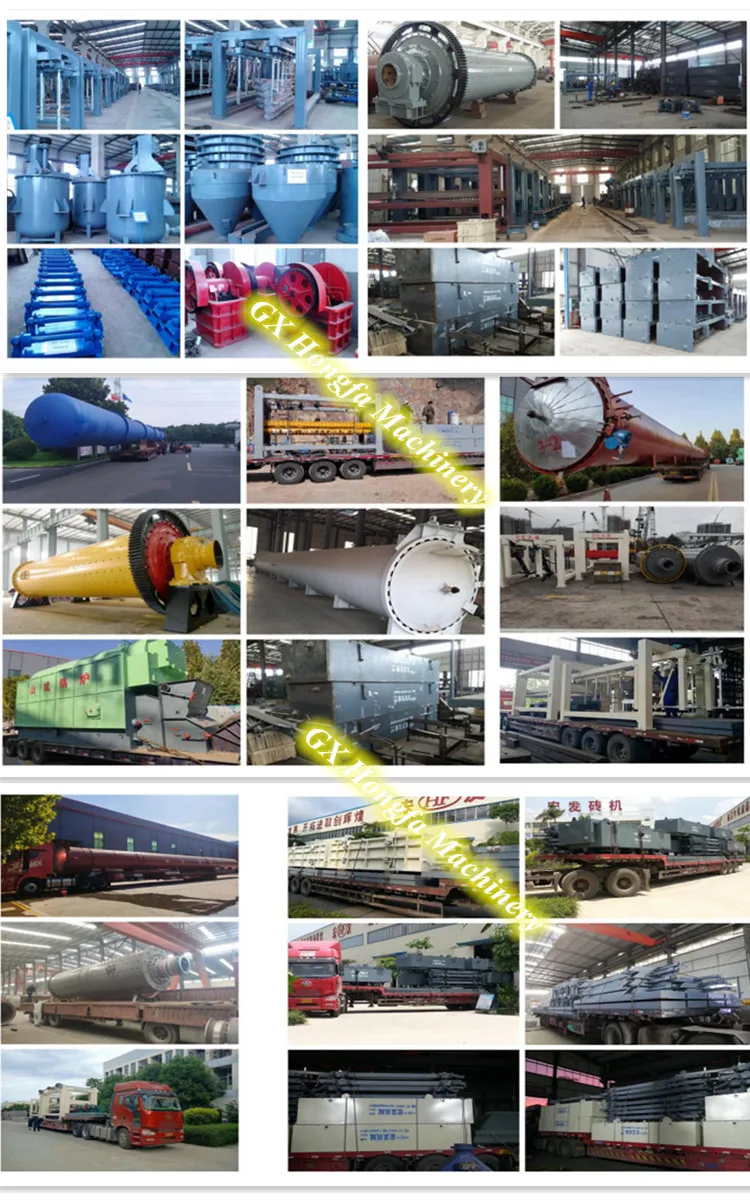

AAC Block production line : 50000~300000M3/Year

FAQ
When you plan to purchase a certain machine, suggesting to take care below points:

 1. What is the brand? ( Now a lot companies embezzle our brand, pls take note our  prevention fake-mark.)
 2. Does this brand has good reputation and sell well in the market?(we got good reputation and are the biggest supplier in China)
 3. What is the materials they used? Manganese steel or A3 steel? (We use Manganese steel which stronger than A3 steel)
4.What is the guarantee period? ( We guarantee for one year)
5.The price cover to what equipment?( pls refer to our quotation list)

Please not hesitate to contact us if you are interested in any kinds of products.
