Hongfa Machinery Service to all over the world

1. Patent protected product
2. Labor-saving and Advanced Technology
3. Double side opening and higher capacity
4. ISO9001-2015

5.Adopts touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.

6. Easy to maintainence, Easy to clean.

7. Machine exactly heavy duty, high quality .

Automatic vertical  eps cement sandwich panel light weight brick concrete wall panels making machine

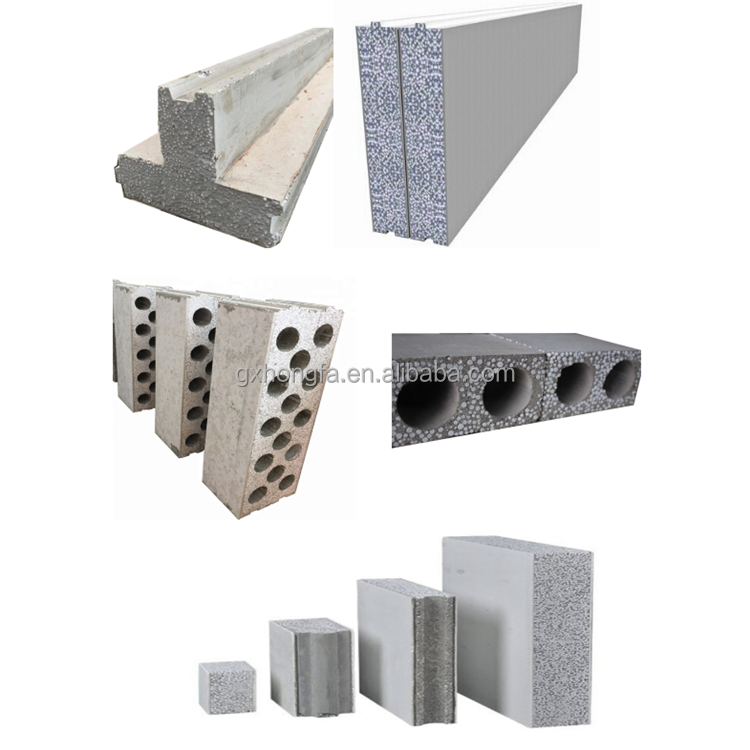

One Concrete Eps Wall Panel Making Machine can produce kinds of wall panels

Product Features:

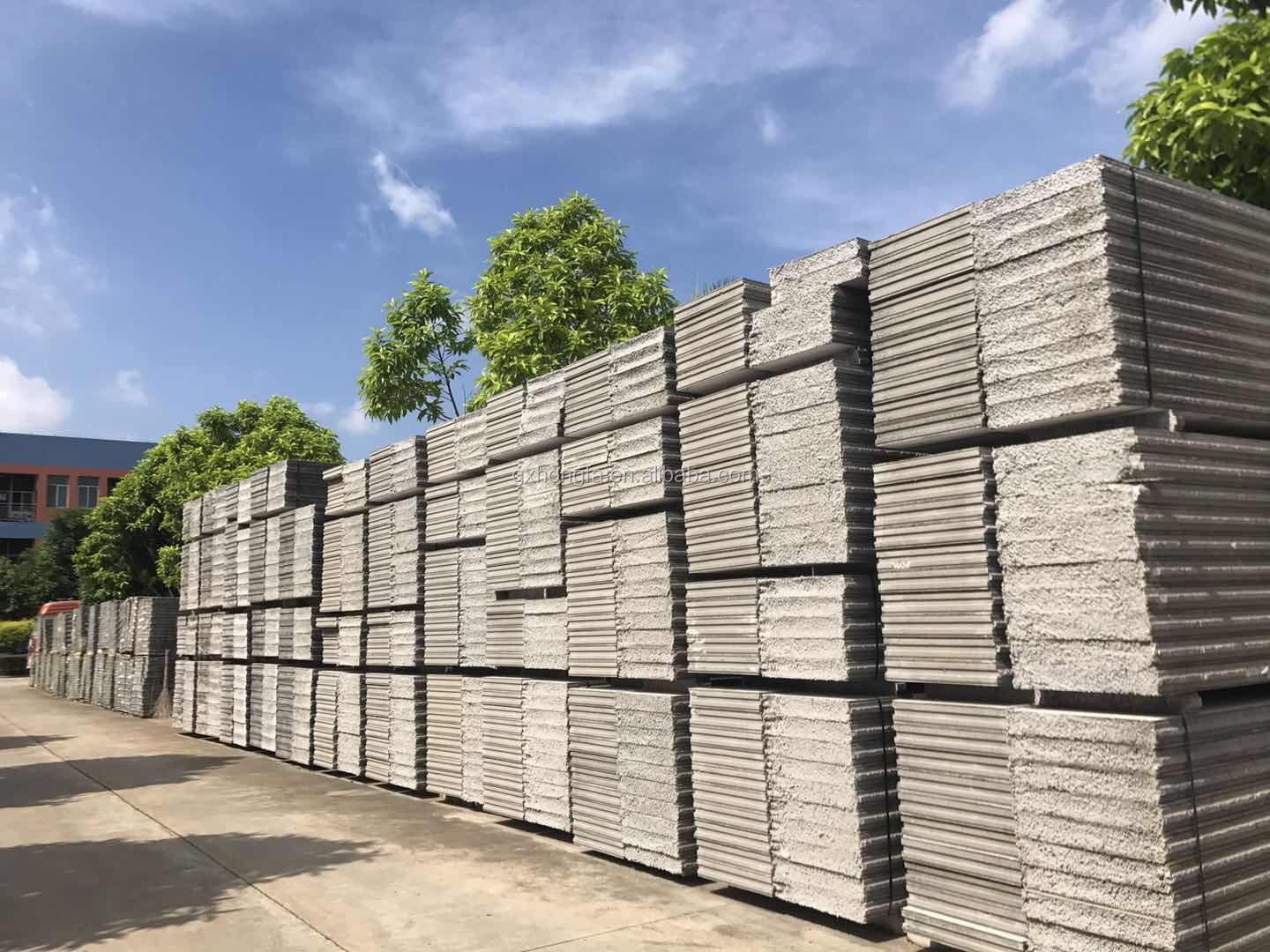

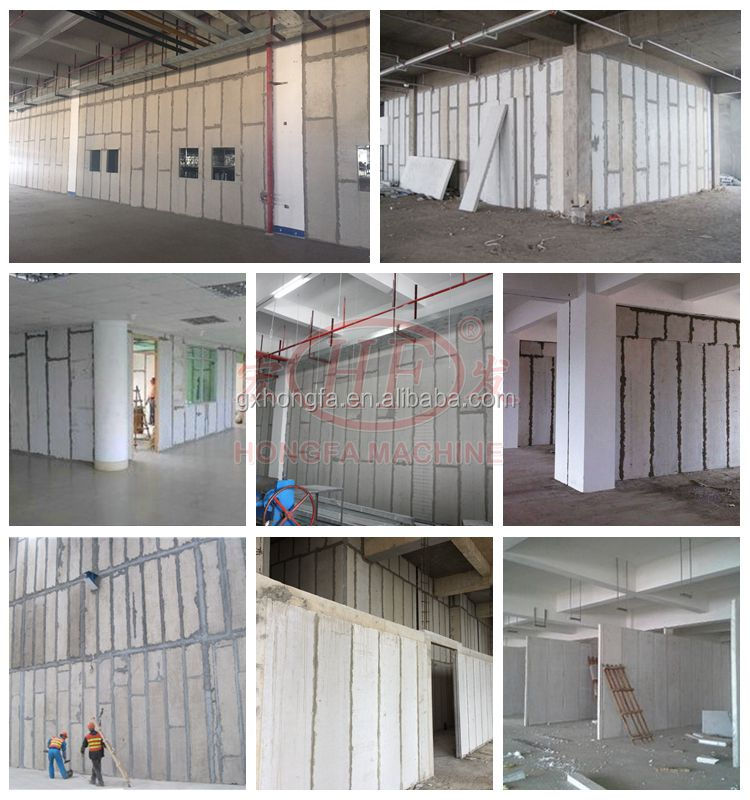

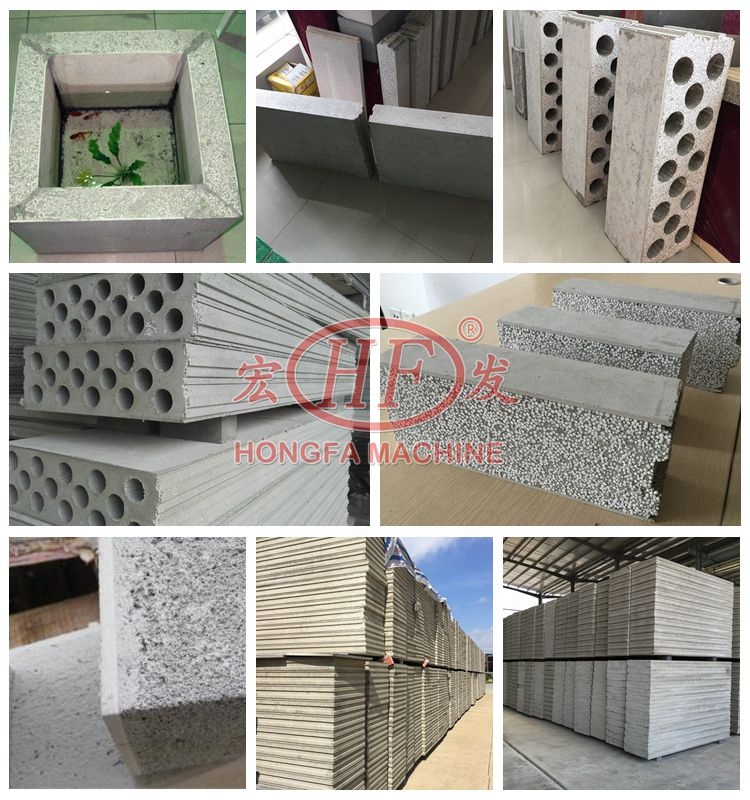

EPS concrete sandwich wall panel is a new type of building material. It is one of the light weight wall panel material with EPS mortar as core material, and the two surface are the skin board made by calcium silicate board or fiber cement board. It is the new type composite EPS concrete lightweight wall panel. This sandwich concrete EPS lightweight wall panel is composed of high strength water resistant calcium silicate board with good waterproof properties and good thermal insulation EPS bonding mortar as core material.

(1). What is the main materials of the EPS Wall Panel Machine used to make the light weight sandwich wall board?

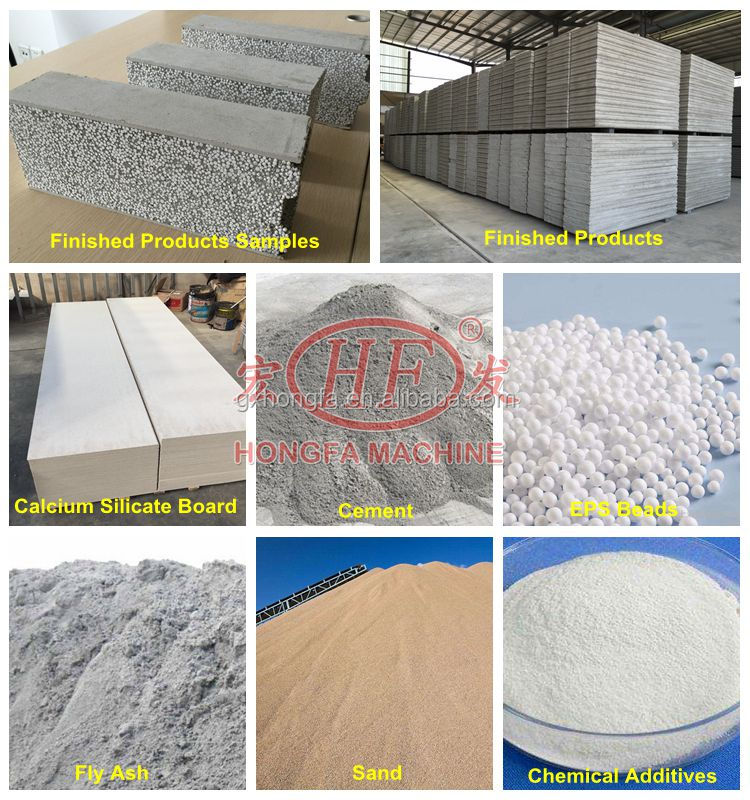

Main raw materials of EPS wall panel are: fly ash, slag, ceramic, portland cement and EPS foam particles, the production process is simple and low cost.

(2). The Concrete wall panel is suitable for modern building standard.
The overall world development trend of brick from clay to non-clay, from solid to hollow, from the small to large, from heavy to lightweight, from low intensity to high-strength, from high to low energy consumption. And the project is stressed to wall lightweight, high strength, thermal insulation, waste utilization, energy conservation and other functions.Therefore, the implementation of the project is imperative. The panel can meet the requirements of the modern building standard.

(3). Rich and Extensive Sources of Raw Materials for making EPS wall board.
The  production of wall materials must be rich and extensive sources of raw materials. The main raw materials of wall panel are industrial residues,fly ash, slag and EPS foam particles,which not only is recyclable and reducing pollution,but also uses inexpensive ordinary chemical raw materials.The above two kinds of sources of raw materials are abundant and extensive.
(4). Obvious Advantages of Industry Competition
(5).EPS new green wall panel has five features:

(A) Lightweight: The raw materials used are Lightweight aggregates, fly ash,etc, non-reinforced concrete, gravel and other heavy feedstock. So it has the characteristics of lightweight, which is only 1/16 weight of the brick and concrete structure.It can significantly reduce the vertical load of the building structure and reduces building weight and project cost.

(B)Insulation Resistance: As this new wall panel is core of EPS insulation materials, which insulation performance is extremely advantageous and meet the building energy efficiency design standards, and rank first among similar products.

(C) Permeability Resistance: The bibulous rate of this new wall panel is only 3.3%,which has reached the international advanced level in the same industry.

(D) Fireproof performance: this kind of wall panel is non-burning, and according to the testing, it is reasonable fireproof materials, for the 90mm thickness wall panel, the fireproof performance can be more 3 hours.

(E) Soundproofing: As new wall panel is using EPS as core, it has good sound insulation and air aspiration, which is more than 40 db sound insulation.

(6). With low business risk for establishing the EPS sandwich wall board machinery.
(A) long-term stability advantages: Due to the limit of functional requirements of the restrictions and sources of raw materials needed to be broad and rich , but also by limiting the requirements of the human environment, the wall construction material development developers is relatively difficult.Once this kind of wall material is successfully developed and is recognized by the government and society,its competitive advantage will be relatively stable and long-term business in the market.

(B) Mechanization in production, so less workers but high output and stability.
(C) It is a comprehensive utilization of the industrial wastes project, and will get a great support from the Government.

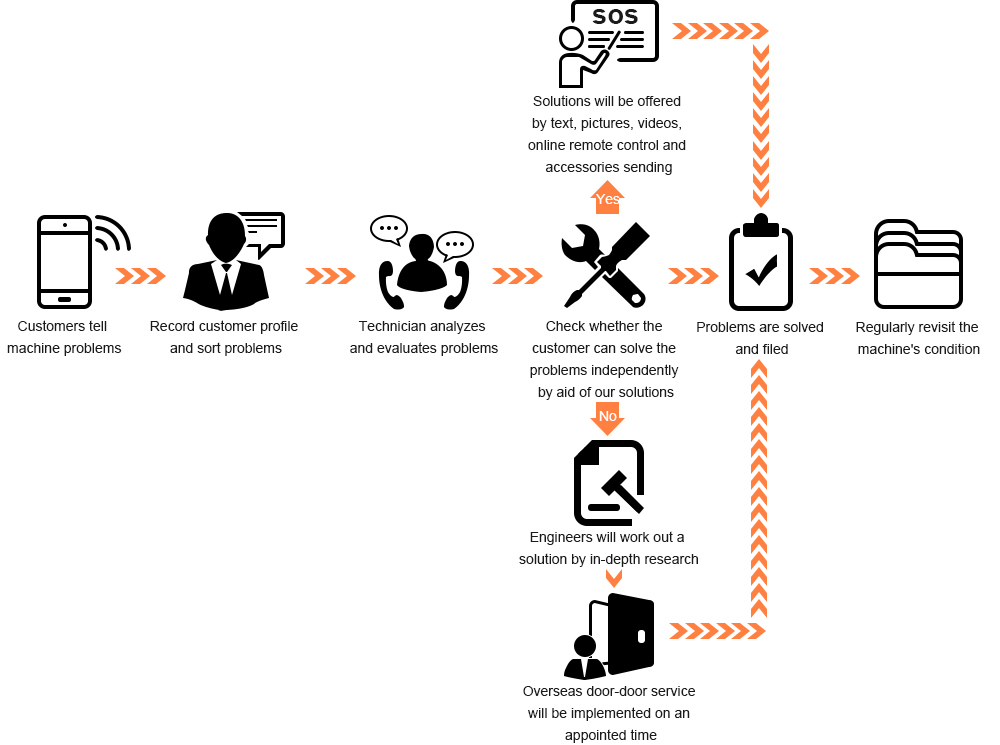

Our Services

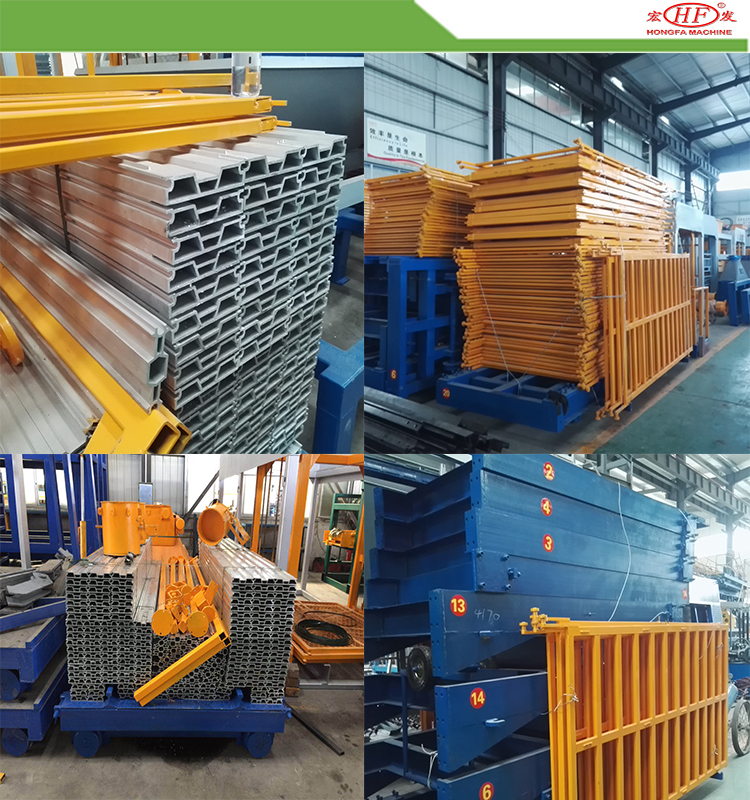

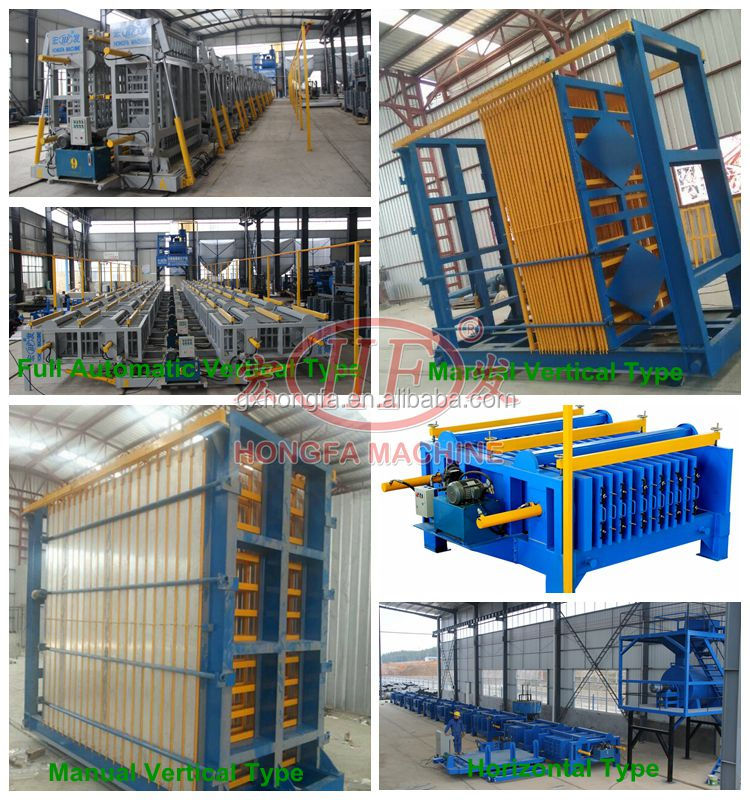

 The three types of the cement wall board forming machine:

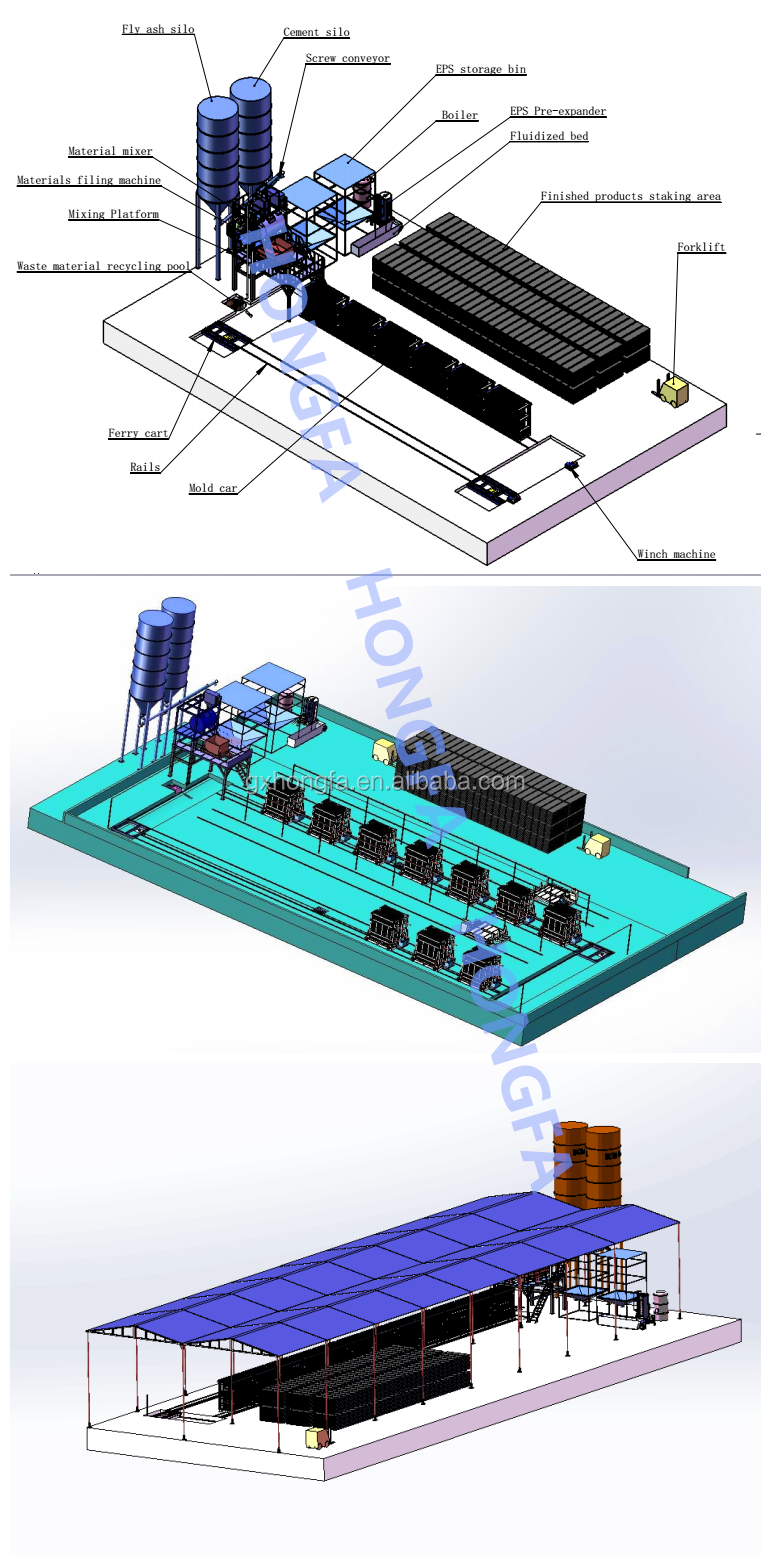

Hongfa Group Produce Several types of EPS GFRG Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line:

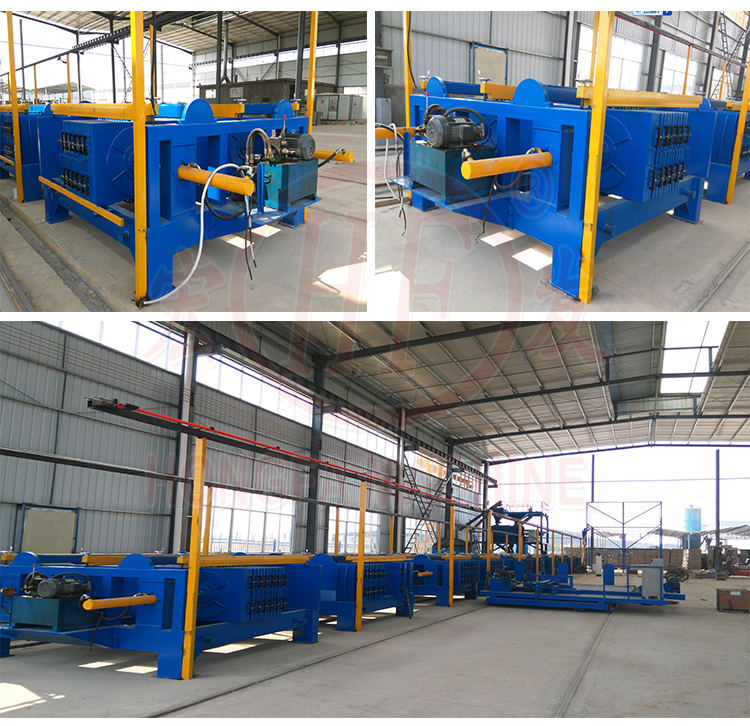

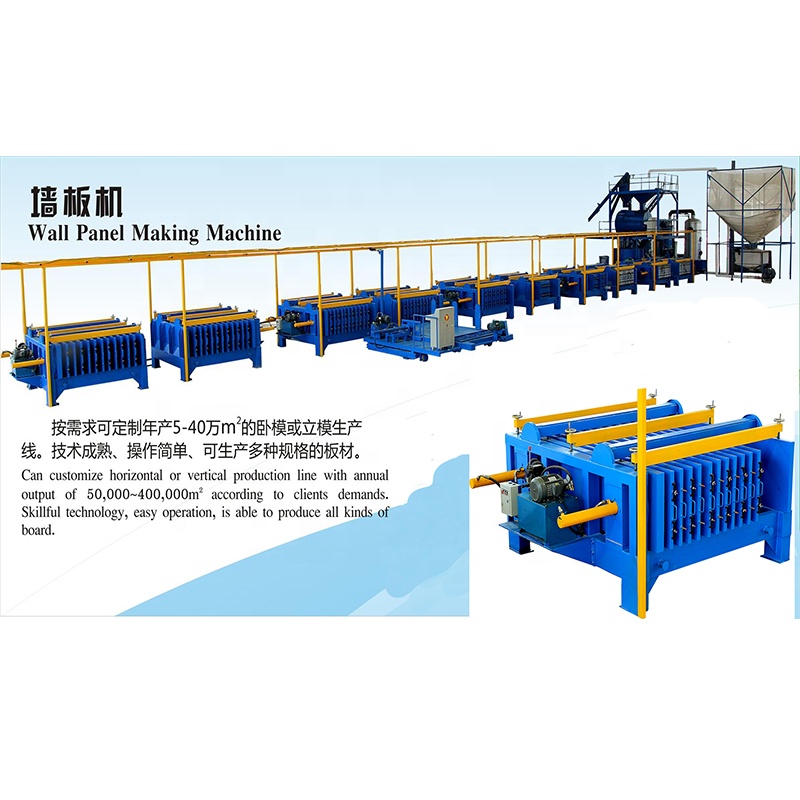

1: Horizontal type EPS wall board forming machine: high level of automatic operation,fewer workers required.

Horizontal wall panel production line /EPS GFRG Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line

This EPS wall panel making machine is automatic type, easy operation and less workers. The automatic horizontal concrete eps wall panel production line features high precise injecting, good controls on the temperature and raw material mixing, and keeping well with the foamed material equal wrapping and prevents the bead agglomerate because of the bad temperature control.

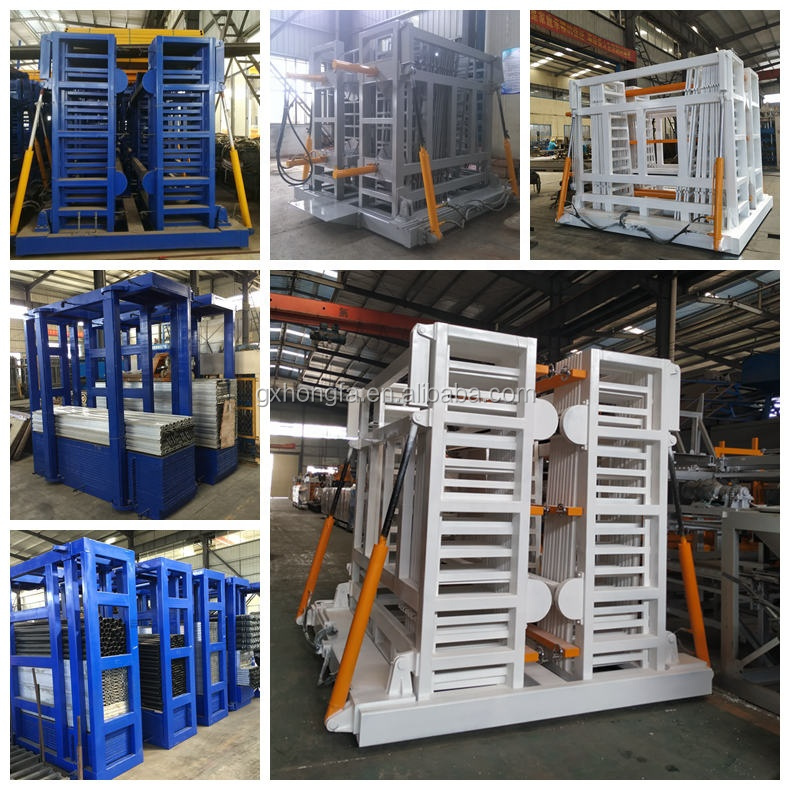

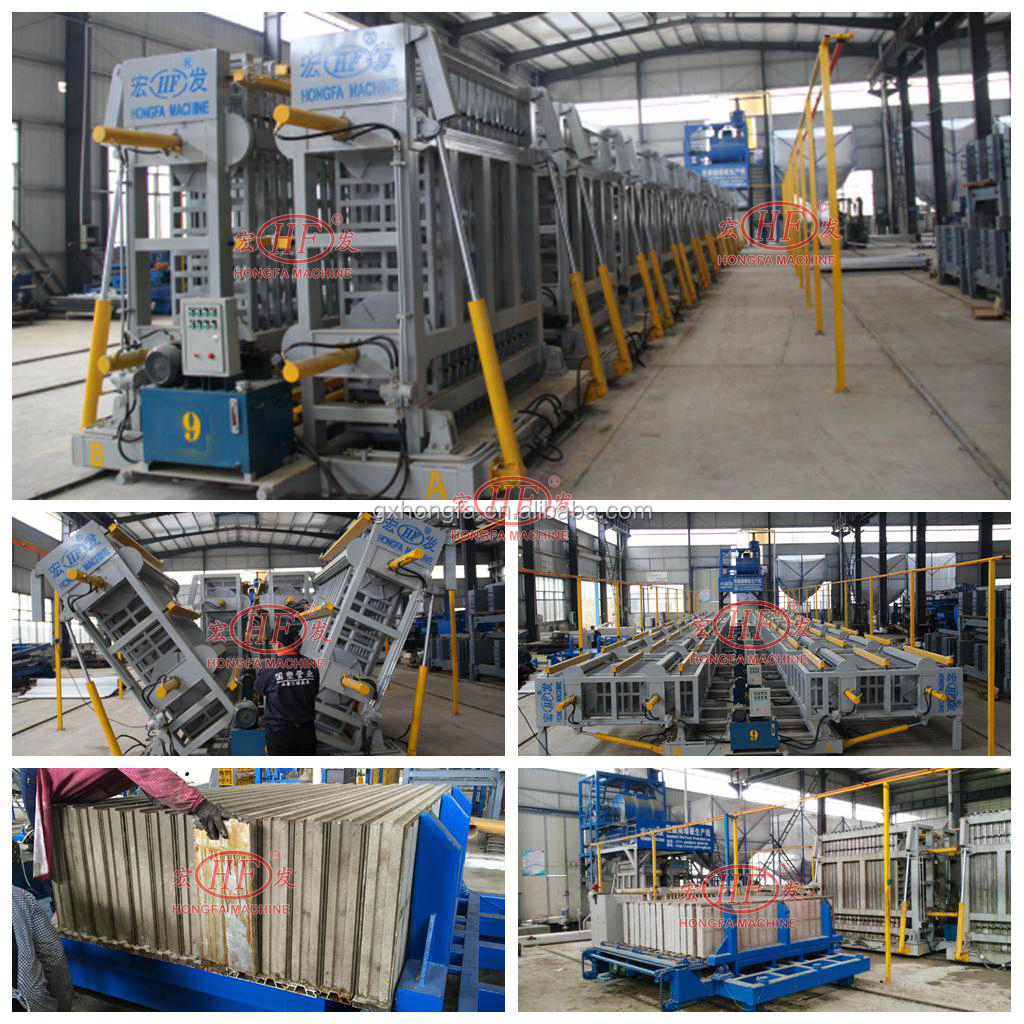

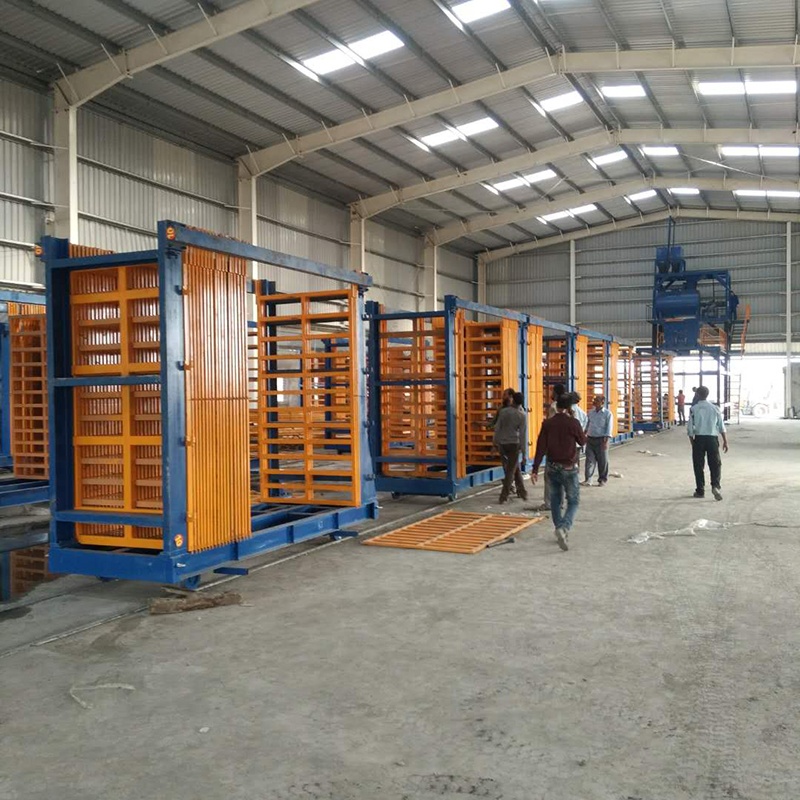

 2: Automatic vertical type: automatic operation,high output,fewer workers required.

Double side opening automatic EPS GFRG Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line :

The most updated generation Precast Lightweight Concrete Wall Panel Making Machine

The Advantage of Automatic Double-side Opening Precast Concrete Wall Panel Making Machine
By running the machine, we have update eps sandwich wall panel making machine to 3rd generation, welcome to visit us to see machine running!

1. The workers can fix boards and moulds easily at the same time for both sides, the height is 1.2meters . (When it is double opening type ).
2.It is convenient to clean the mould and partition board for both side. No problem for panels' and moulds' bending out of shape . The machine can be opened by any angles.
3. No panels will fall down when demolding with any thickness of panels, one worker can demold by automatic demolding & stacking machine safely.
4. Workers can demold panels while anther one can fix the mould and boards, no need

wait for any forming machine, time-saving and faster operation for the whole line.
5. Can have natural or hydaulic filling for solid, hollow Eps wall panels.

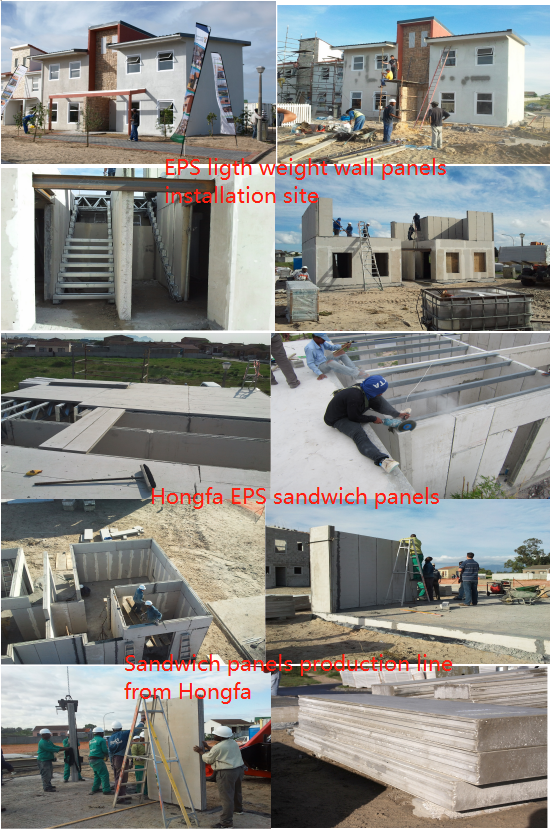

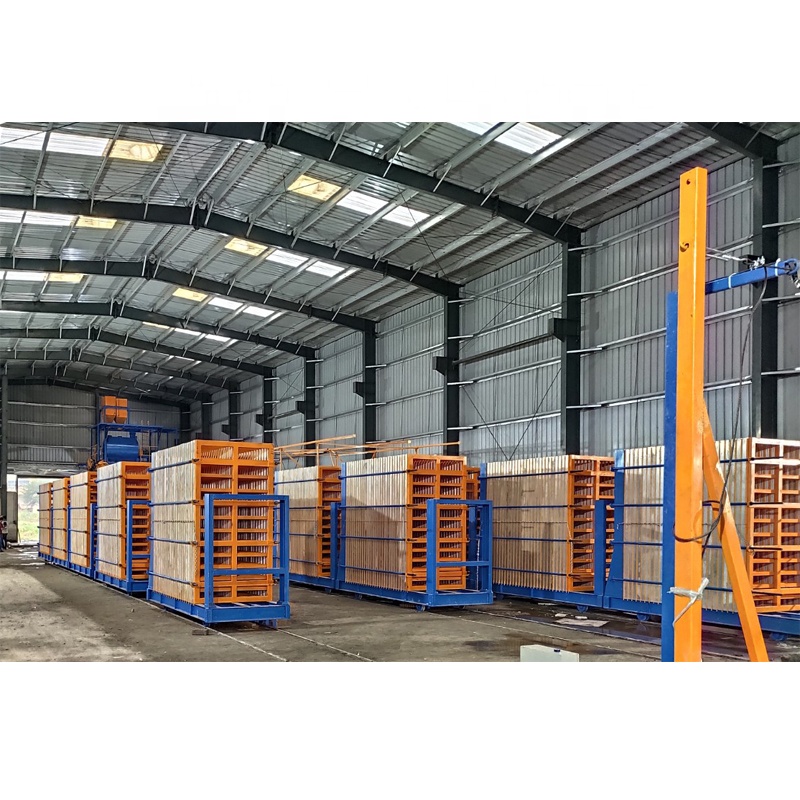

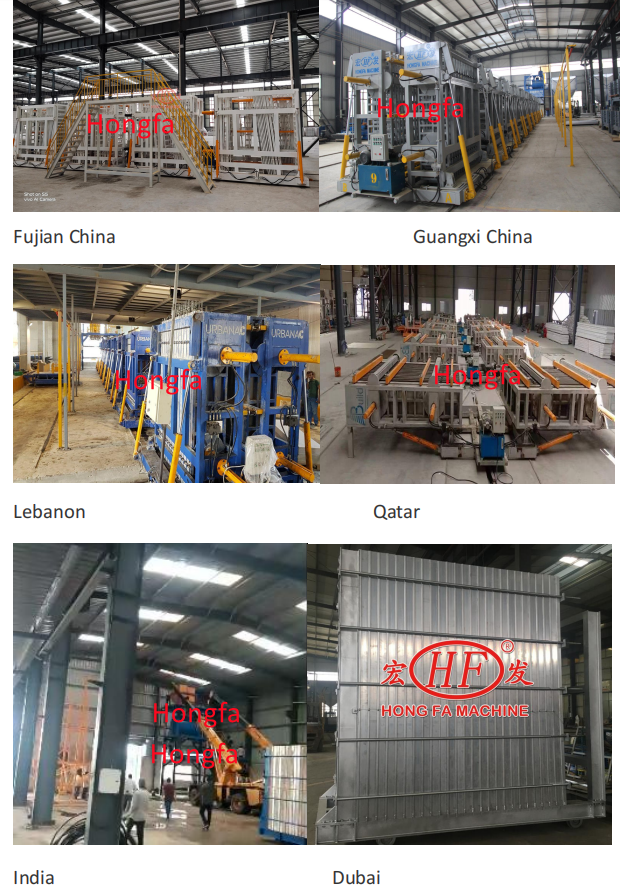

 Successful Plants of EPS GFRG Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line


3: Manual vertical type partition wall board making machine: Manual operation,the highest output amount the three types, but requires more workers.

Vertical Manual panels de-molding wall panel production line /EPS GFRG Panels Wall Lightweight Precast Concrete Wall Panel Making Machine Sandwich Panel production Line

 This sandwich concrete dry wall panel is in low investment and highest capacity. This kind of sandwich lightweight wall panel machine can be considered due to the limit of functional requirements.

How are the land,water,power required to set up an EPS light weight wall board production line?
Water requirements: to produce 60m2 panel(9 cm thickness as example) required one ton of water. No special requirements for water quality, clean water can be used for production.
Electricity requirement: installed power 30 kw (depending on the capacity).
Requirements on air and steam: Air compressor and boiler.
Land requirements: 1200-2000m2 workshop and 9 meters high (depending on the capacity).

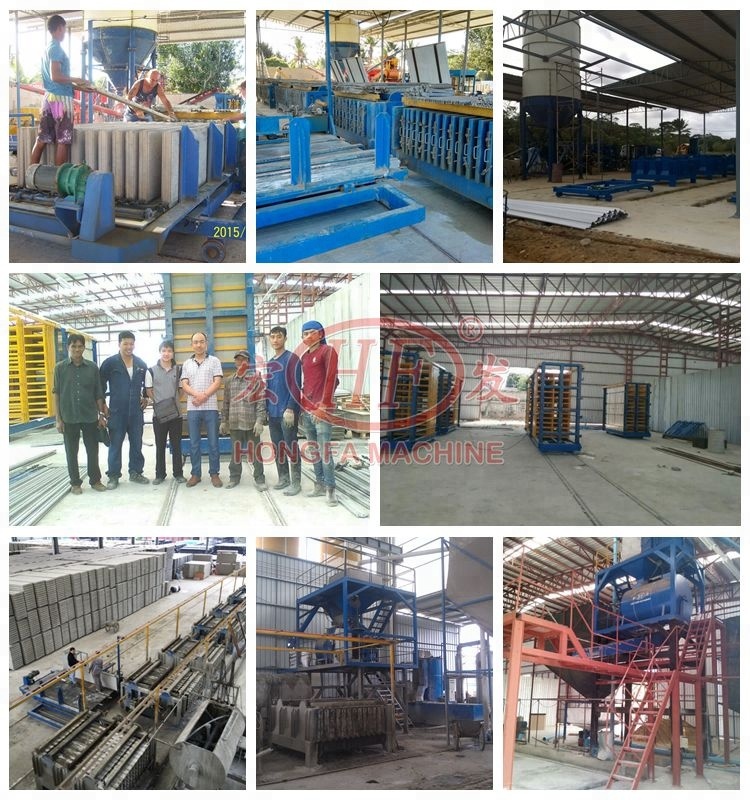

succeed case ....

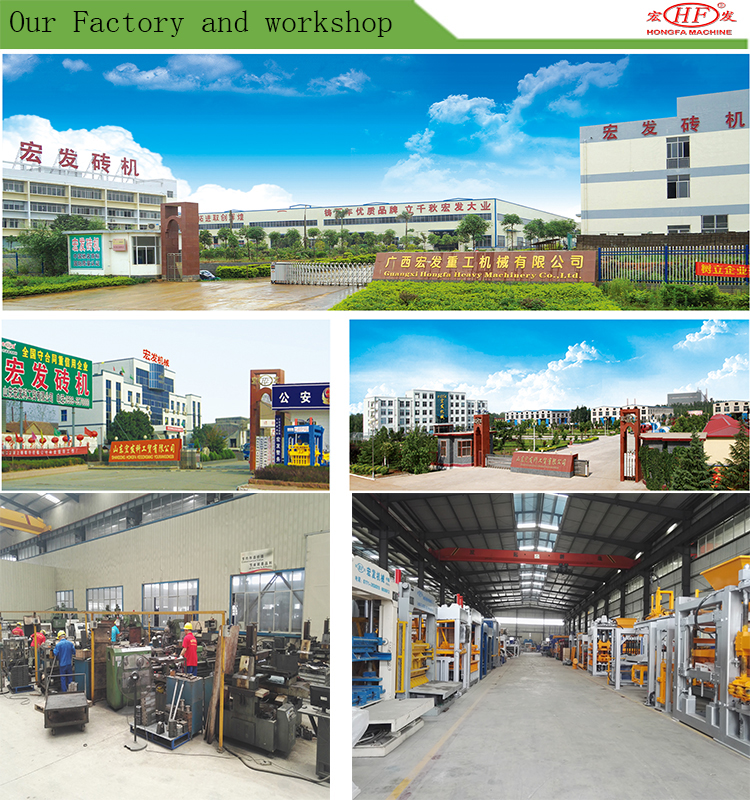

Company Information



Guangxi Hongfa Heavy Machinery Group was established in 1990, is one of the largest block making manufacturer and leading supplier of the building block industry in China,as an ISO9001-2000 certificate and "Famous Brand in Guangxi"enterprise and member of China Building Block  Association.

Hongfa Machinery'Honor
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.China National Enterprice Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protectionb Demonstration Unit
4.High and New Technology Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit







Exhibitions & cooperations

Hongfa, as a top brand enterprise in China, our products are also exported to Russia, Brazil, Thailand, Indonesia, Vietnam, Angola, Bangladesh, India, Australia, Sudan, etc., 96 countries and regions, deeply welcomed by clients from all around the world.







Hongfa Machinery Group Main Products :
Concrete mixing plant,mixer,AAC/EPS concrete block making machine,concrete tile making machine and concrete pipe making machine  .

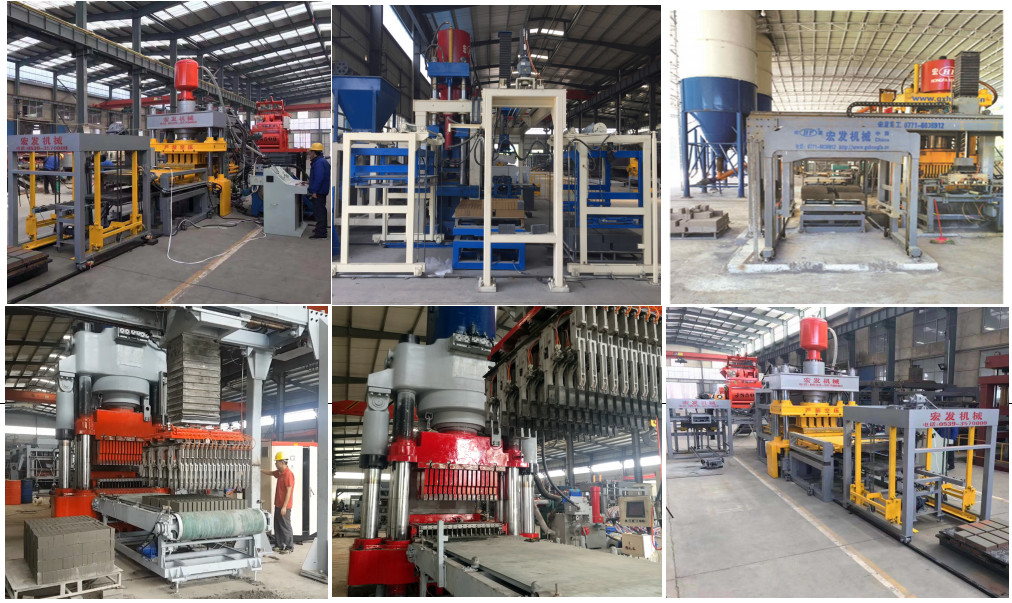

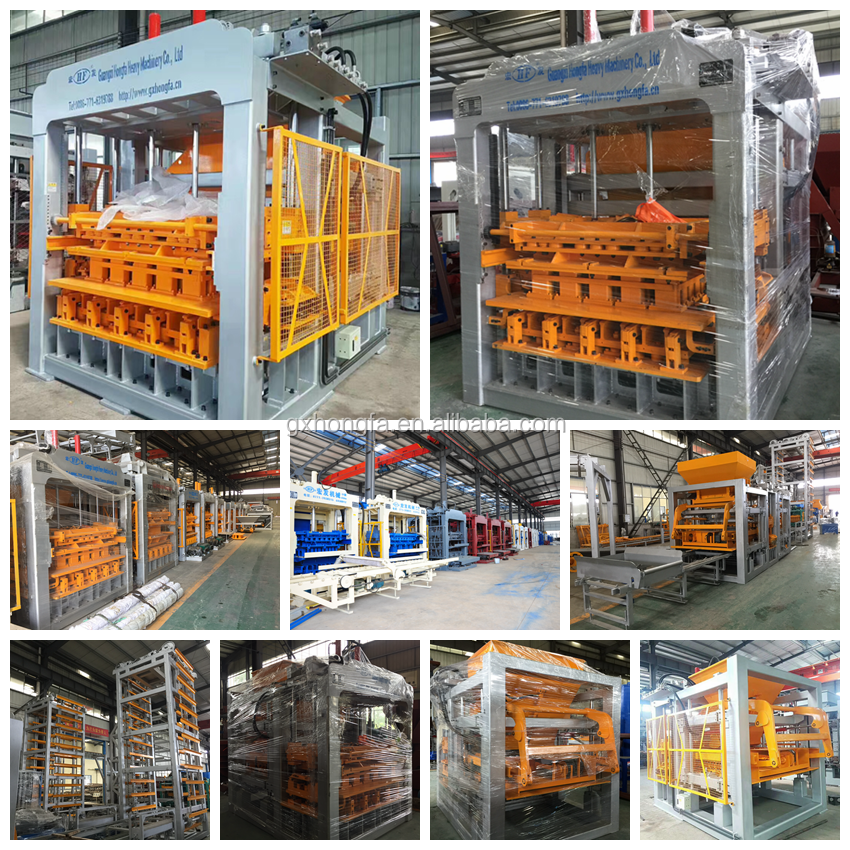

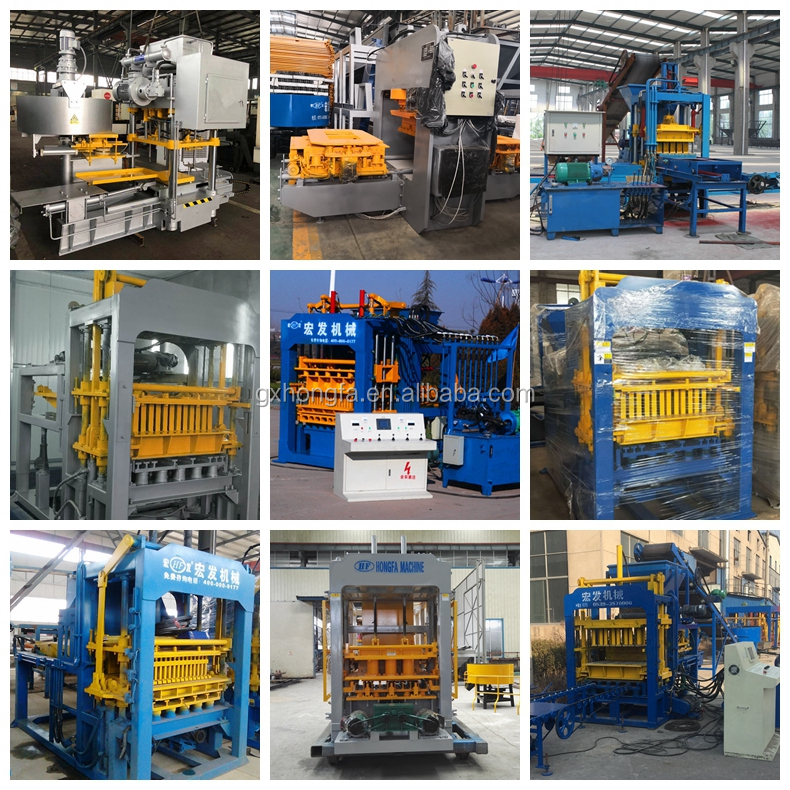

Automatic Block Making:
QT12-15D   QT12-15  QT10-15D  QT10-15  QT9-15 QT8-15D
QT8-15B  QT6-15D  QT6-15C  QT6-15B  QT4-15D  QT4-15C
QT4-15B  QT4-20C  QTJ4-25
Semi-automatic:
QTJ4-35B2  QTJ4-40B2
Semi-automatic egg-laying machine:
QTY4-30  QMJ4-45  QTJ2-45  JMQ-6A
Color Paver Color tile forming machine:
QT3-20   SMY8-150
HF-800 pipe-making machine  HF-2000 pipe-making machine
Concrete Mixing Plant:
HZS25  HZS35    HZS50  HZS60  HZS series
AAC Block production line : 50000~300000M3/Year



FAQ



Are your company is the manufacturer or trading company?
We are Direct factory, NOT AGENT, so the quality and after-sale services is guaranteed.

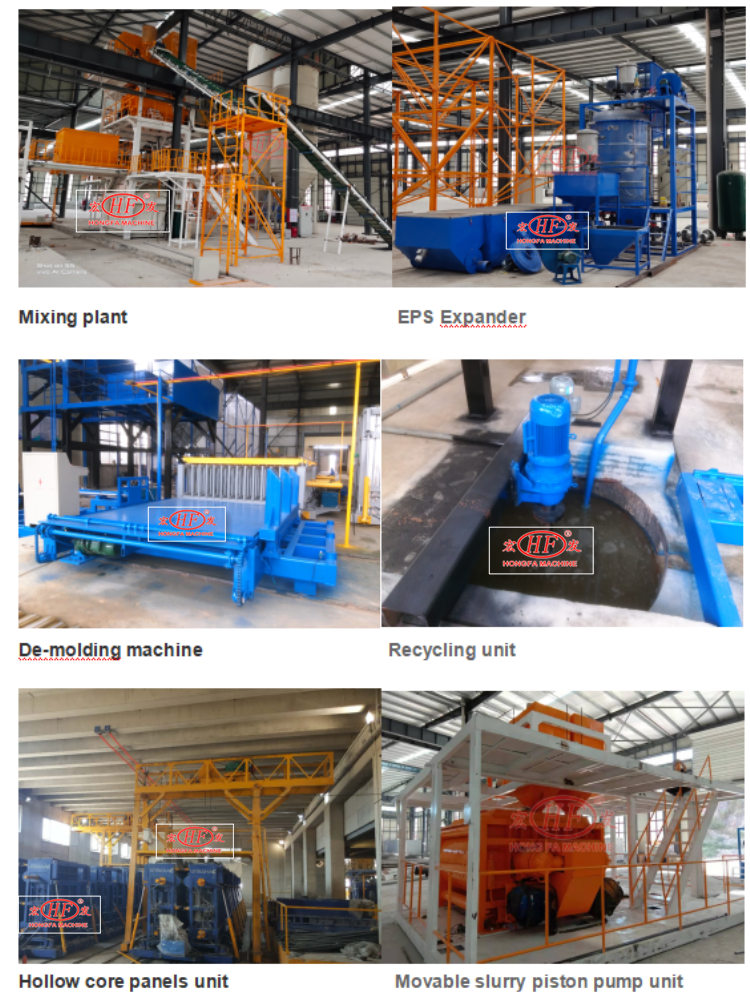

 Hongfa provides our clients one-stop solution for the EPS sandwich wall panel production line;from us the clients can share our best quality machines and the most updated technology in the wall panel making industry.

How about the Guarantee and Installation of the machine?
We provide our clients 3 years guarantee to the main structure of our machines, other company is only one year;and we will send engineer to to clients' site to guide the installation of the machines.

How about the commissioning of the machine and training to workers?
Yes, after finish the installation of the eps wall panel production line, our engineer will do the testing and commissioning, and make the most suitable ratio of the materials to make the panels, and train the workers how to operate and maintain the machines.

When you plan to purchase a certain machine, suggesting to take care below points:
 1. What is the brand? ( Now a lot companies embezzle our brand, pls take note our  prevention fake-mark.)
 2. Does this brand has good reputation and sell well in the market?(we got good reputation and are the biggest supplier in China)
 3. What is the materials they used? Manganese steel or A3 steel? (We use Manganese steel which stronger than A3 steel)
4. What is the lifetime of the mold? ( our mold can use 900,000 - 1200,000 times)
5.The price cover to what equipment?( pls refer to our quotation list)

Please not hesitate to contact us if you are interested in any kinds of products.
