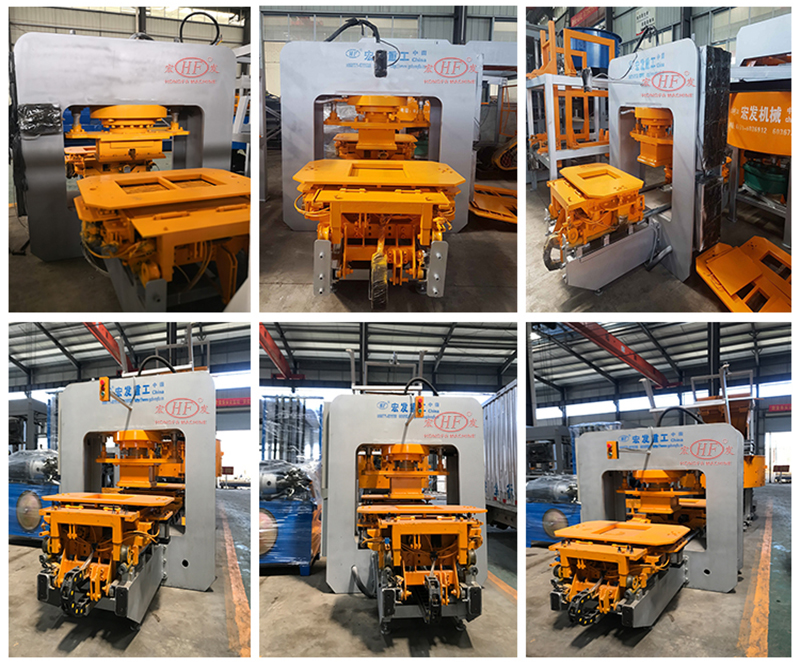

Hongfa cement tiles making machine (HFT300)
A. Brief Introduction
The HFT300 Terrazzo tile Machine developed and produced by our company is a new type of equipment for the production of cement products such as terrazzo. The machine adopts gantry frame structure and hydraulic forming, which has the advantages of stable operation, fast forming speed and good product consistency.Hongfa cement tiles making machine (HFT300)
B.Advantages
HFT300 terrazzo tile making machine characteristics:
1.Adopts full-hydraulic press and pneumatic to shape
2.Shaping quickly and dependable parameter
3.High productivity and High quality
5.Competitive price
Hongfa cement tiles making machine (HFT300)
C.Details Specification
Molding pressure:150-200T
Motor power:5.5kw
Productivity:2000-3000pcs/day
Max processing size:630x600
Productivity:6-8pcs/min
Building area:60m2
Care area:60m2
Power:18.5kw
Specification:3000*1800*1950mm
| SPECIFICATIONS FOR HONGFA TERRAZZO TILE MACHINE | |||
| Specification | Main tile size | mm | 400 x400 MAX. |
| Tile type | Decoration floor tile | ||
| Power | kw | 18.5 | |
| Main performance parameters | Forming pressure | T | 150-200T |
| Quantiy / Mold | pcs | 1 or 2, depends on size | |
| Capacity / 8 hours(1 shift) | pcs | 2880-3840 | |
| Others | Dimension | mm | 3000 x 1800 x 1950 |
| Weight | T | 5.1 | |
| Relevant machinery | Mixer with hopper, mould(s), manual tile machine, trolley, color sprayer etc. | ||

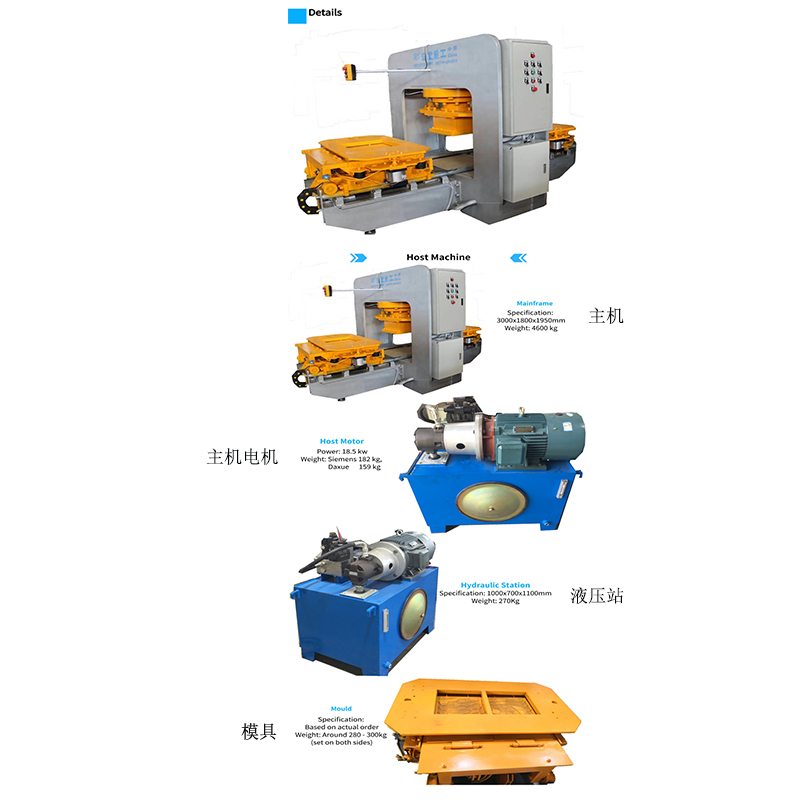

D.Main components
HFT300 tile machinery main components
1.Host machine
2.Host motor
3.Hydraulic station
4.Mould
Hongfa cement tiles making machine (HFT300)

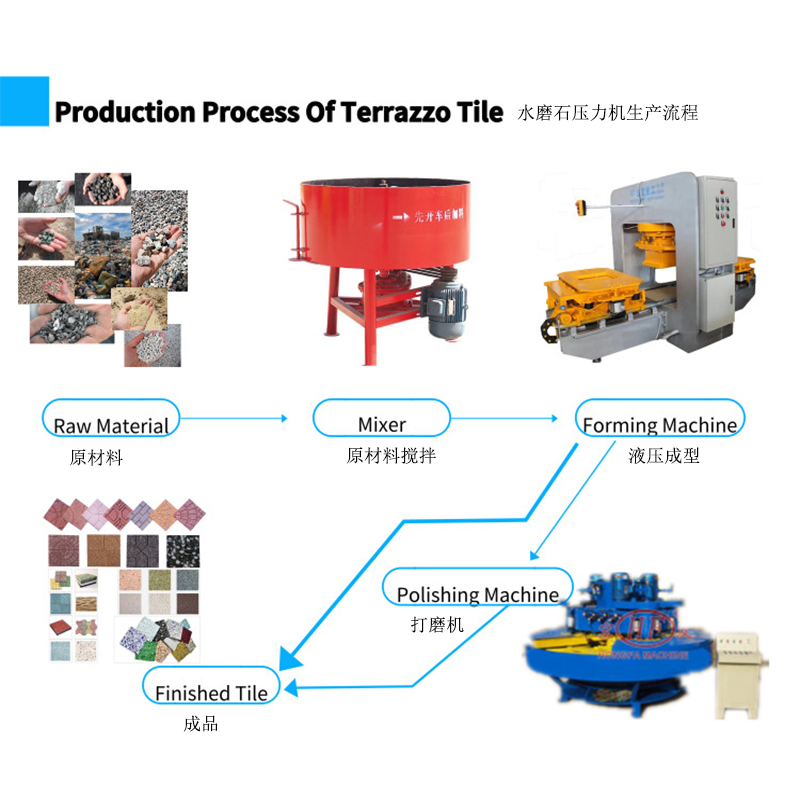

E.Production process
Production process of HFT300 terrazzo tile making machine:
Work flow: Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Mould unloading --- Forming tiles ---Onto the tiles shelf --- --- Stacking --- Curing (24 hours)--- Polishing --- Finished products.
1. At first,the raw materials are put into the bucket elevator, then deliver to the rolling mixer,at this time,you must add some water into it.
2. After mixing, the mixture come into the dosing feeder,then,measurable mixture that one tile need will put down on the mould below through a small hole.
3. Then,a tile can be formed by high pressure,the pressure is about 150 tons. So the produced tile is very stable and dense.
4. By the way,the tile need to dry out for about 10 days.Then you can paint.
Hongfa cement tiles making machine (HFT300)

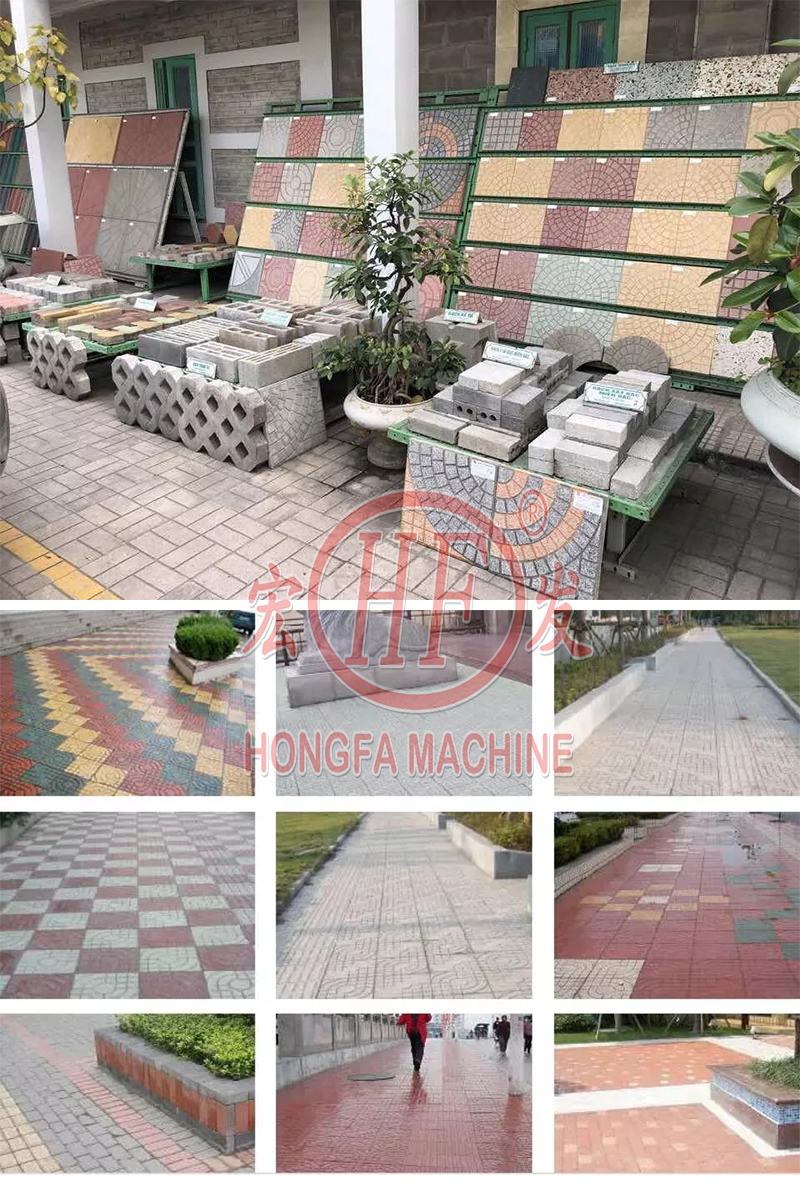

F. Terrazzo application scenarios
Terrazzo application scenarios
Pavement, floors, parks, public places, etc

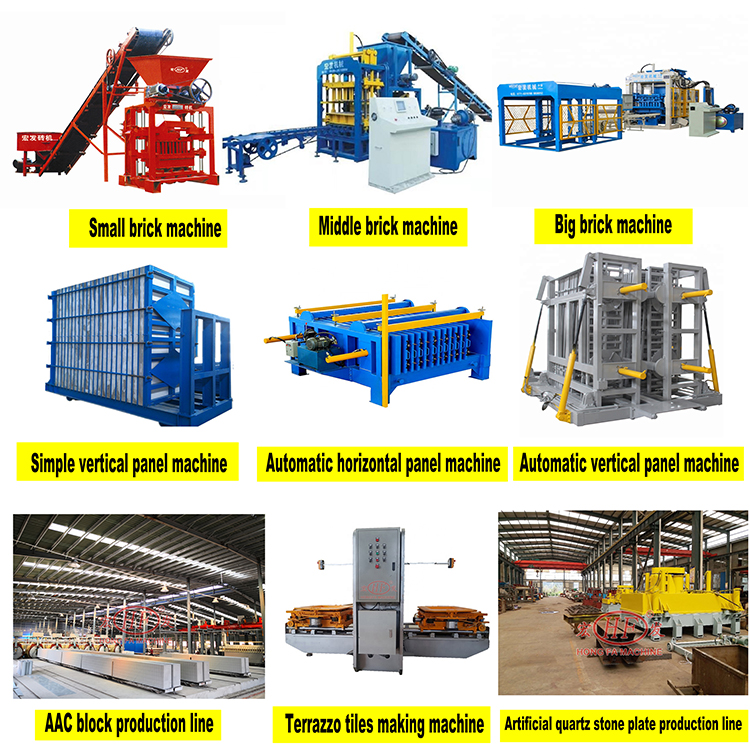

Hongfa Machinery Group Main Products :
