Condom Production Line

ID:21102966024

Category: Manufacturing & Processing Machinery Plastic,Rubber Machinery & Moulds

EXW Price:US$ 350000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

condom production line condom production machinecondom making machinecondom making equipment latex condom making machinecondom machine condom dipping linecondom manufacturing machinecondom production equipmentcondom machine manufacturer

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery > Plastic,Rubber Machinery & Moulds

Trademark

Golden Eagle

Product Package

Export packing

Specification

100000 pcs/ 24 hours

Place of Origin

Guilin city, Guangxi Province, China

Port

Guilin

Technical parameters for 31m natural latex rubber condom production line

No.	Main Technical Parameters
1	Shape dimension（L×W×H）	31.5m X 3m X 3.9m
2	Main motor drive	1.5KW X 2 Sets
3	Thermal energy consumption (steam)	0.7T/ h
4	Installed capacity	40KW
5	Water consumption	2T/ h
6	Chain length of production line	112m
7	Mould space	76.2mm
8	Chain linear velocity	0-6m/minute
9	Quantity of moulds	1,470 PCS
10	Productivity	100,000 PCS/24 hours
11	Soft water	5T / 24h


Technical Characteristics:

1. Adopt advanced three-time latex dipping technology, advanced process layout and diversified adjustment of production technology.

2. Templates are fabricated with SS304 plate. The whole chain is driven by three sets of main motors, with varying frequency speed control system. The equipment are running smoothly and steadily.

3. The whole line is equipped with stainless steel plates in the ceiling, and sealed with plastic steel.

4. The equipment is designed effectively and reasonably to prevent the condom from bubble head, flow reversals, skewing, beading problems and pinholes etc.

5. Can produce different kinds of common and irregular-shaped condoms with shiny side, granule, thread and multicolor.

6. Adopt the fully-enclosed stainless steel tubes to convey the latex material of production under pressure.

7. Energy saving design in drying structure, with consumption of 19.5kgs of standard coal per 10,000 condoms.

8. Equipped with the newest generation of energy-saving, full-automatic, rubber condom three-in-one vulcanizing machine in post vulcanization. With vulcanizing 7,500 condoms every batch and only consuming 50% of the energy used in the original three-in-one vulcanizing machine.

9.Equipped with white carbon black recycling device in post vulcanization. The consumption of white carbon black is controlled below 1.3kgs per 10,000 condoms.


About us

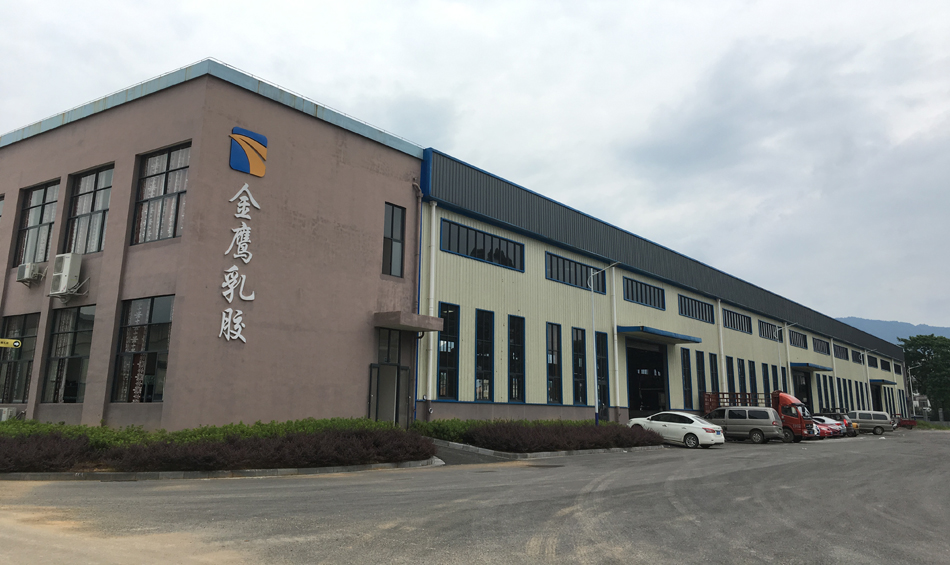

Guilin Golden Eagle Latex Technology Co., Ltd. founded in 2004, is the first latex professional technical company in China, specialized in latex product production, production training, equipment design, process design, manufacture and installation of equipment, enterprise management consulting. In the year 2012, Golden Eagle is elected the vise chairman unit of China Rubber Industry Association Latex Branch, and at the same time, Mr. Huarong Cao, the general manager, is elected the vise chairman of China Rubber Industry Association Latex Branch. We have the right to operate foreign trade.

Over the past seventeen years, we have designed, made and installed more than 200 production lines of medical gloves, nitrile gloves, condoms, labour protection lined latex-dipped gloves, and condom dry type electric testing machines. Successfully provided technical services for dozens of latex manufacturers, including many well-known domestic latex manufacturers, and there are also newly established latex enterprises.Even more to the point, in recent years, the latex production line and testing equipment independently developed by our company have been exported to South Africa, Uzbekistan, Iran, Kazakhstan and other countries, and have been won critical acclaim. It has been proved that the latex product whole set equipment developed by Golden Eagle are favored by many enterprises all over the world.
